Nitrogen-Enhanced Nanostructural Evolution and its Effect on Phase Stability in Biomedical Co-Cr-Mo Alloys

Kenta Yamanaka; Manami Mori; Akihiko Chiba

doi:10.4028/www.scientific.net/AMR.922.826

Paper Titles

Application of a Novel Entrainment Defect Model to a High Pressure Die Casting
p.801

Constitutive Analysis and Microstructure Evolution of the High-Temperature Deformation Behavior of an Advanced Intermetallic Multi-Phase γ-TiAl-Based Alloy
p.807

Bainitic Forging Steels for Cyclic Loading
p.813

Tensile Fracture Characteristics of a Single Crystal Nickel-Based Superalloy
p.819

Nitrogen-Enhanced Nanostructural Evolution and its Effect on Phase Stability in Biomedical Co-Cr-Mo Alloys
p.826

Interface Migration with Segregation in MoSi₂-Based Lamellar Alloy Simulated by Phase-Field Method
p.832

EB-Irradiation Induced Strengthening of Carbon Fiber Reinforced Thermoplastic Polymers
p.838

Mechanical Properties at Elevated Temperatures of an S304H-Type Austenitic Stainless Steel Processed by Warm Rolling
p.844

Interdiffusion and Microstructure Simulation in Ni and Co Based Overlay Coatings on a Ni Based Superalloy at High Temperatures
p.850

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 922Nitrogen-Enhanced Nanostructural Evolution and its...

Nitrogen-Enhanced Nanostructural Evolution and its Effect on Phase Stability in Biomedical Co-Cr-Mo Alloys

Abstract:

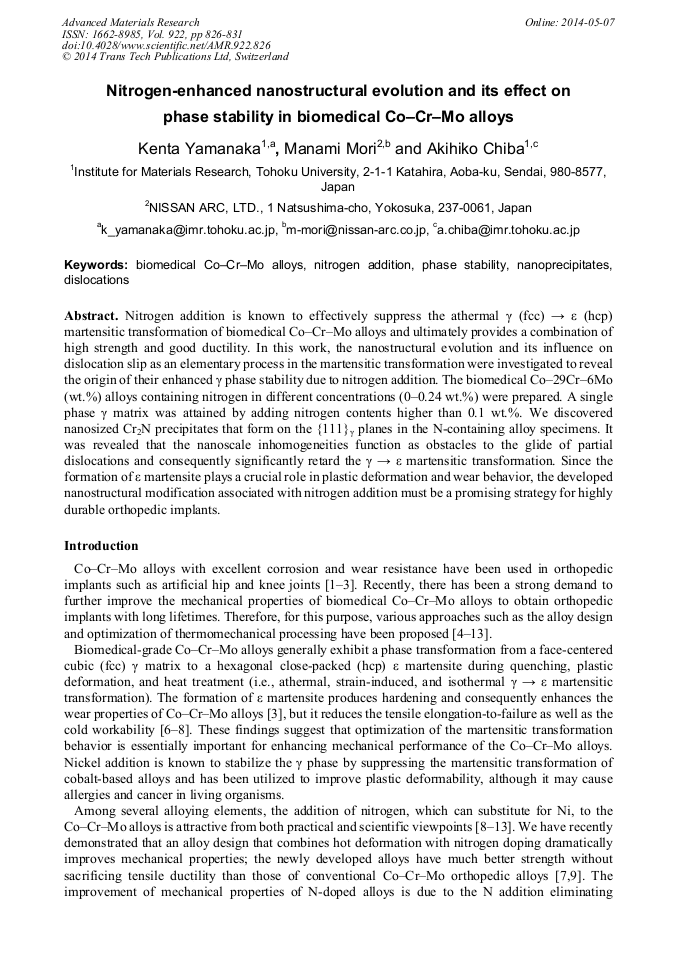

Nitrogen addition is known to effectively suppress the athermal γ (fcc) → ε (hcp) martensitic transformation of biomedical Co–Cr–Mo alloys and ultimately provides a combination of high strength and good ductility. In this work, the nanostructural evolution and its influence on dislocation slip as an elementary process in the martensitic transformation were investigated to reveal the origin of their enhanced γ phase stability due to nitrogen addition. The biomedical Co–29Cr–6Mo (wt.%) alloys containing nitrogen in different concentrations (0–0.24 wt.%) were prepared. A single phase γ matrix was attained by adding nitrogen contents higher than 0.1 wt.%. We discovered nanosized Cr₂N precipitates that form on the {111}_γ planes in the N-containing alloy specimens. It was revealed that the nanoscale inhomogeneities function as obstacles to the glide of partial dislocations and consequently significantly retard the γ → ε martensitic transformation. Since the formation of ε martensite plays a crucial role in plastic deformation and wear behavior, the developed nanostructural modification associated with nitrogen addition must be a promising strategy for highly durable orthopedic implants.
