Electrical Performance of Zinc Oxide Surge Arresters in 22 kV Distribution System Using Thermal Image Camera

Abstract:

Zinc Oxide (ZnO) surge arresters (SAs) experience thermal runaway when the temperature exceeds the acceptable limit. This phenomenon is associated with the increase in resistive leakage current due to degradation. This paper presents the electrical performance of ZnO SAs in 22 kV distribution system using thermal image camera under the power frequency AC operating voltages. When ZnO surge arresters are installation takes a long time in distribution system over than 5 years. For the experimental study, as ZnO installation takes a long time over than 6 years the leakage current is 63.9 mA, temperature difference were measured over a period of time over than 14 degree Celsius. This data will be useful as a guideline for solving problems and reducing power loss from leakage current. Moreover, it will be useful in predicting lifetime of ZnO SAs.

You might also be interested in these eBooks

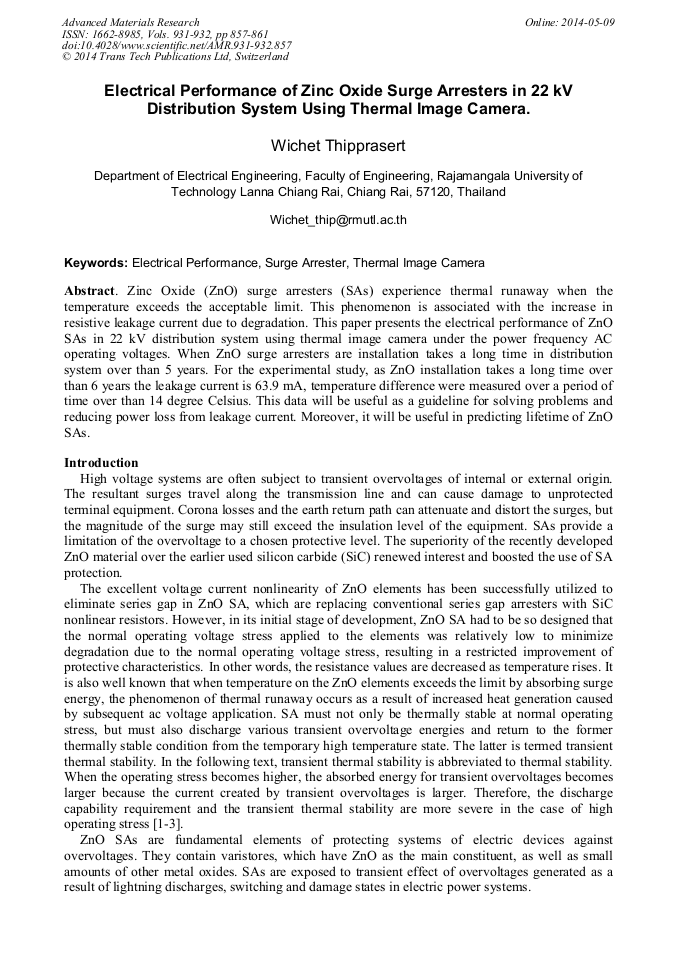

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 931-932)

Pages:

857-861

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.931-932.857

Citation:

Cite this paper

Online since:

May 2014

Authors:

W. Thipprasert*

Keywords:

Electrical Performance, Surge Arrester, Thermal Image Camera

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] A Haddad and D. Warne, ZnO surge arresters, in Advance in High Voltage Engineering, lET Power & Energy Series 40, 2004, pp.191-215.

Google Scholar

[2] S. B. Lee, S. 1. Lee, and B. K. Lee, Analysis of thermal and electrical properties of ZnO arrester block, Current Applied Physics, vol. 10, pp.176-180, May. (2009).

DOI: 10.1016/j.cap.2009.04.019

Google Scholar

[3] S. Nishiwaki, H. Kimura, T. Satoh, H. Mizoguchi, and S. Yanabu, Study of thermal runaway/equivalent prorated model of a ZnO surge arrester, IEEE transaction on Power Apparatus and Systems, Vol. PAS-103, No. 2, pp.413-421, February (1984).

DOI: 10.1109/tpas.1984.318260

Google Scholar

[4] IEC Publ. 815, First Edition 1986. Guide for the selection of insulators in respect of polluted conditions , International Electrotechnical Committee.

Google Scholar

[5] International Standard of Surge Arrester IEC60099-4 Edition 2. 1: 2004 Consolidated With Amendment 1: 2006 Section 6. 9 Operating Duty, Section 10 Test Requirement on Polymer-Housed Arresters and Annex B Test to Verify Thermal Equivalency Between Complete Arrester and Arrester Section, IEC60099-4.

Google Scholar
