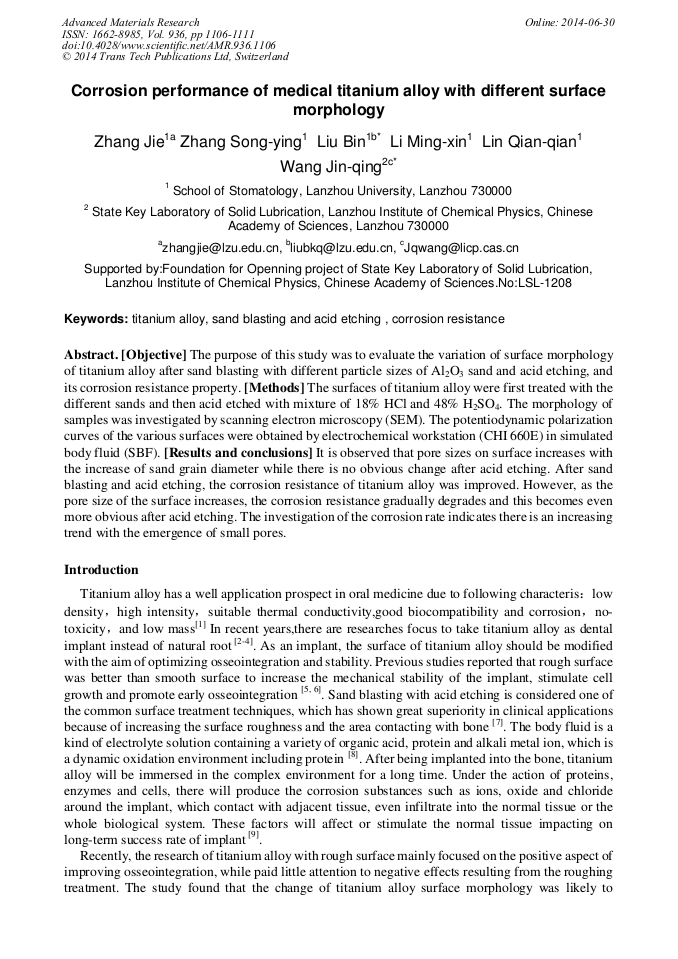

Corrosion Performance of Medical Titanium Alloy with Different Surface Morphology

Abstract:

[Objective] The purpose of this study was to evaluate the variation of surface morphology of titanium alloy after sand blasting with different particle sizes of Al₂O₃ sand and acid etching, and its corrosion resistance property. [Methods] The surfaces of titanium alloy were first treated with the different sands and then acid etched with mixture of 18% HCl and 48% H₂SO₄. The morphology of samples was investigated by scanning electron microscopy (SEM). The potentiodynamic polarization curves of the various surfaces were obtained by electrochemical workstation (CHI 660E) in simulated body fluid (SBF). [Results and conclusions] It is observed that pore sizes on surface increases with the increase of sand grain diameter while there is no obvious change after acid etching. After sand blasting and acid etching, the corrosion resistance of titanium alloy was improved. However, as the pore size of the surface increases, the corrosion resistance gradually degrades and this becomes even more obvious after acid etching. The investigation of the corrosion rate indicates there is an increasing trend with the emergence of small pores.

• Periodical: Advanced Materials Research (Volume 936)
• Pages: 1106-1111
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.936.1106
• Online since: June 2014
• Authors: Jie Zhang, Song Ying Zhang, Bin Liu*, Ming Xin Li, Qian Qian Lin, Jin Qing Wang
• Keywords: Acid Etching, Corrosion Resistance, Sand Blasting, Titanium Alloy

References

[1] Zhang Dong, Zhang Pu-liang, Pan Xiao-jing, et al. Corrosion performance of medical titanium alloys in three different physiological electrolytes[J]. Journal of Clinical Rehabilitative Tissue Engineering Research, 2009, 13(34): 6689-6692.

[2] M. J. Werbitt, P. V. Goldberg. The immediate implant: bone preservation and bone regeneration [J]. The International Journal of Periodontics & Restorative Dentistry, 1992, 12(3): 206-217.

[3] S. A. Jovanovic, H. Spiekermann, E. J. Richter. Bone regeneration around titanium dental implants in dehisced defect sites: a clinical study[J]. International Journal of Oral and Maxillofacial Implants, 1992, 7(2): 233-245.

[4] A. Wennerberg, T. Albrektsson. Effects of titanium surface topography on bone integration: a systematic review[J]. Clinical Oral Implant Research, 2009, 20(Supplement s4): 172–184.

DOI: 10.1111/j.1600-0501.2009.01775.x

[5] Z. Qu, X. H. Rausch-Fan, M. Wieland, et al. The initial attachment and subsequent behavior regulation of osteoblasts by dental implant surface modification[J]. Journal of Biomedical Materials Research Part A, 2007, 82A (3): 658-668.

DOI: 10.1002/jbm.a.31023

[6] A. Wennerberg. The importance of surface roughness for implant incorporation[J]. Int. J. Mach. Tools Manufact, 1998, 38(S5-6): 657-662.

DOI: 10.1016/s0890-6955(97)00114-4

[7] S. Szmukler-Moncler, D. Perrin, V. Ahossi, et al. Biological properties of acid etched titanium implants: effect of sandblasting on bone anchorage[J]. Journal of Biomedical Materials Research Part B: Applied Biomaterials, 2004, 68B(2): 149-159.

DOI: 10.1002/jbm.b.20003

[8] R. N. Pierson, J. Wang, E. W. Colt, P. Neumann. Body composition measurements in normal man: The potassium, sodium, sulfate and tritium spaces in 58 adults[J]. Journal of Chronic Diseases, 1982, 35(6): 419-428.

DOI: 10.1016/0021-9681(82)90056-x

[9] Wang Ming, Song Xiping. Study actuality of corrosion, mechanical compatibility and biocompatibility of titanium alloys for medical application[J]. Titanium industry progress, 2008, 25(2): 13-18.

[10] E. P. Lautenschlager, N. K. Sarker, A. Acharya, et al. Anodic polarization of porous fiber metals[J]. J. Biomed. Mater. Res., 1974, 8(2): 189–191.

DOI: 10.1002/jbm.820080208

[11] Cao Hongdan. The study on properties of surfaces of titanium implants treated by different roughing methods[D]. Sichuan University, (2005).

[12] L. Joska, J. Fojt. Corrosion behaviour of titanium after short-term exposure to an acidic environment containing fluoride ions[J]. J Mater Sci: Mater Med, 2010, 21(2): 481–488.

DOI: 10.1007/s10856-009-3930-y

[13] Yan Honghai, Hu Linghua, Huang Hairong. Corrosion resistance of pure titanium implant with different surface micro roughness[J]. Chinese Journal of Oral Implantology, 2008, 13(4): 175-179.

[14] C. Aparicio, F. J. Gil, C. Fonseca, et al. Corrosion behaviour of commercially pure titanium shot blasted with different materials and sizes of shot particles for dental implant applications[J]. Biomaterials, 2003, 24(2): 263-273.

DOI: 10.1016/s0142-9612(02)00314-9

[15] R. M. Pilliar. Porous-surfaced metallic implants for orthopedic applications[J]. Journal of Biomedical Materials Research, 1987, 21(A1 Suppl): 1-33.

[16] Lv Yupeng, Zhu Ruifu, Ma Quansheng, et al. Current evolution of biomedical titanium and its alloy implant materials[J]. Chinese Journal of Oral Implantology, 2000, 5(1): 43-49.

[17] Z. Lin, Y. Wang, D. N. Wang, et al. Porous structure preparation and wetability control on titanium implant[J]. Surface and Coatings Technology, 2013, 228(Supplement 1): S131–S136.

DOI: 10.1016/j.surfcoat.2012.07.007

[18] Cao Chunan. Principles of electrochemistry of corrosion[M]. Beijing: Chemical Industry Press, (2008).

[19] A. S. Hiyasat, O. M. Bashabsheh, H. Darmani. Elements released from dental casting alloys and their cytotoxic effects[J]. Int J Prosthodont, 2002, 15(5): 473 – 478.

[20] Liu Li, Mao Yingjie, Chen Zhihong. The effect on the corrosion resistance of titanium alloy in the artificial saliva with different ph value[J]. Chinese Journal of Biomedical Engineering, 2006, 25(2): 166-169.

[21] Xue Yongqiang, Luan Chunhui, Fan Jinchuan. The Effect of Rough Surfaces on Chemical Corrosions of Metals[J]. Materials Review, 1998, 12(2): 23-24.

[22] W. Li, D.Y. Li. Influence of surface morphology on corrosion and electronic behavior[J]. Acta Materialia, 2006, 54(2): 445–452.

DOI: 10.1016/j.actamat.2005.09.017
