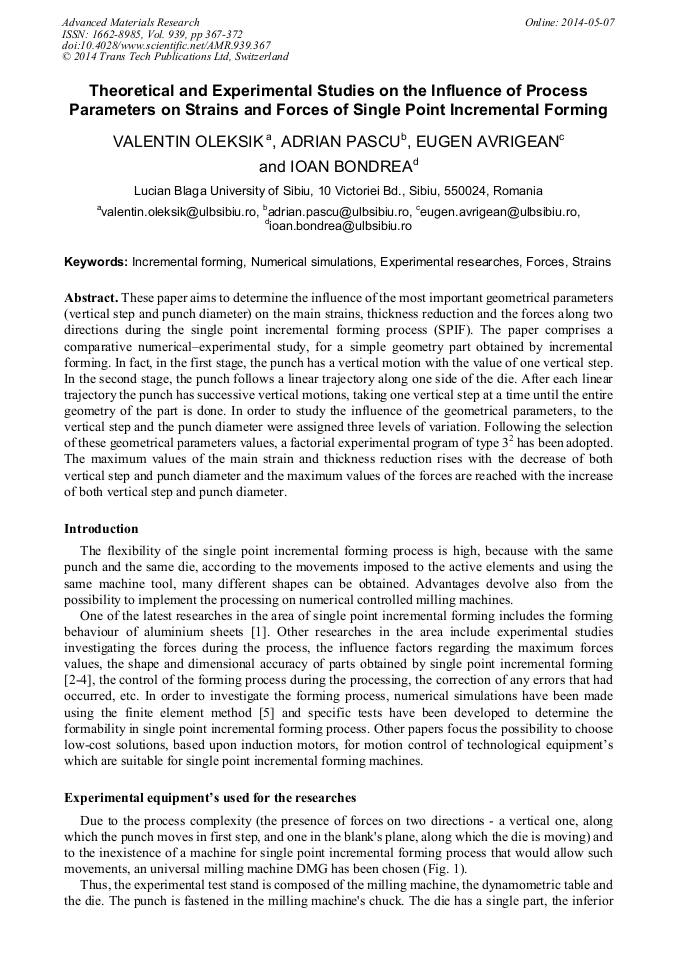

Theoretical and Experimental Studies on the Influence of Process Parameters on Strains and Forces of Single Point Incremental Forming

Abstract:

These paper aims to determine the influence of the most important geometrical parameters (vertical step and punch diameter) on the main strains, thickness reduction and the forces along two directions during the single point incremental forming process (SPIF). The paper comprises a comparative numericalexperimental study, for a simple geometry part obtained by incremental forming. In fact, in the first stage, the punch has a vertical motion with the value of one vertical step. In the second stage, the punch follows a linear trajectory along one side of the die. After each linear trajectory the punch has successive vertical motions, taking one vertical step at a time until the entire geometry of the part is done. In order to study the influence of the geometrical parameters, to the vertical step and the punch diameter were assigned three levels of variation. Following the selection of these geometrical parameters values, a factorial experimental program of type 3² has been adopted. The maximum values of the main strain and thickness reduction rises with the decrease of both vertical step and punch diameter and the maximum values of the forces are reached with the increase of both vertical step and punch diameter.

• Periodical: Advanced Materials Research (Volume 939)
• Pages: 367-372
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.939.367
• Online since: May 2014
• Authors: Valentin Oleksik*, Adrian Pascu, Eugen Avrigean, Ioan Bondrea
• Keywords: Experimental Researches, Forces, Incremental Forming, Numerical Simulation, Strain

References

[1] M.S. Shim, J. J Park: The formability of aluminium sheet in incremental forming, Journal of Materials Processing Technology, 113 (2001), 654-658.

DOI: 10.1016/s0924-0136(01)00679-3

[2] J. Duflou, Y. Tunçkol, A. Szekeres, P. Vanherck: Experimental study on force measurements for single point incremental forming, Journal of Materials Processing Technology, 189 (2007), 65-72.

DOI: 10.1016/j.jmatprotec.2007.01.005

[3] A. Fiorentino, E. Ceretti, A. Attanasio, L. Mazzoni, C. Giardini: Analysis of forces, accuracy and formability in positive die sheet incremental forming, International Journal of Material Forming, 2 (2009), 805-808.

DOI: 10.1007/s12289-009-0467-z

[4] F. Micari, G. Ambrogio, L. Filice: Shape and dimensional accuracy in Single Point Incremental Forming: State of the art and future trends, Journal of Materials Processing Technology, 191 (2007), 390-395.

DOI: 10.1016/j.jmatprotec.2007.03.066

[5] M. Yamashita, M. Gotoh, S.Y. Atsumi: Numerical simulation of incremental forming of sheet metal, Journal of Materials Processing Technology, 199 (2008), 163-172.

DOI: 10.1016/j.jmatprotec.2007.07.037
