Research on Transmission Approach between Title Bar Information of Engineering Drawing and PDM

Zhi Hong Yang; Zheng Ping Hai

doi:10.4028/www.scientific.net/AMR.940.124

Paper Titles

Study on Analysis of Certain Artillery’s Planetary Transmission Design Based on ANSYS
p.108

Application of FTA-FMEA Method in Fault Diagnosis of Tracked Vehicle
p.112

Failure Analysis and Troubleshooting for Certain Tracked Artillery Deviation
p.116

Optimization Design on Variable Cycle Engine Performance Based on Genetic Algorithm
p.120

Research on Transmission Approach between Title Bar Information of Engineering Drawing and PDM
p.124

The Design of Detect Equipment of the Self-Propelled Artillery Hydraulic System Based on Data Fusion Technology
p.128

Dynamic Simulation Analysis of the Crane Hoisting Process Based on Adams
p.132

Research on the Gear Box Fault Diagnosis of Self-Propelled Artillery Based on Vibration Signal Analysis
p.136

Research and Design for the Calibrating Device of Self-Propelled Artillery’s Center Line
p.140

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 940Research on Transmission Approach between Title...

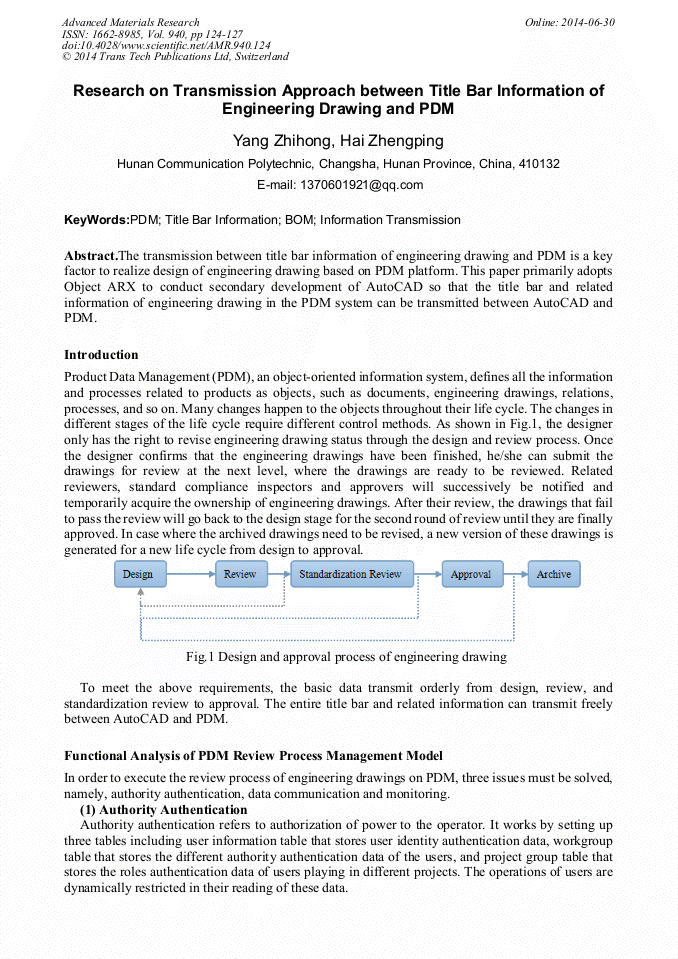

Research on Transmission Approach between Title Bar Information of Engineering Drawing and PDM

Abstract:

The transmission between title bar information of engineering drawing and PDM is a key factor to realize design of engineering drawing based on PDM platform. This paper primarily adopts Object ARX to conduct secondary development of AutoCAD so that the title bar and related information of engineering drawing in the PDM system can be transmitted between AutoCAD and PDM. KeyWords:PDM; Title Bar Information; BOM; Information Transmission
