Effect of True Strain on Processing Maps for Processed Ni-Based Superalloy below γ΄-Transus Temperature

Guo Bao Yang; Ze Kun Yao; Yan Hui Liu; Yang Nan; Yong Quan Ning

doi:10.4028/www.scientific.net/AMR.941-944.1459

Paper Titles

The Damage Analysis of Composite Laminate under the Action of Low Speed Impact and Static Pressure Mark
p.1437

Development and Change of Compressive Strength for Class G Oil Well Cement under High Temperature
p.1441

Method for Determining the Plastic Properties of Metallic Materials by Instrumented Indentation with Dual Pyramidal Indenters
p.1445

Study on Flow Mechanism of Gas Injection in Porous Carbonate Core
p.1453

Effect of True Strain on Processing Maps for Processed Ni-Based Superalloy below γ΄-Transus Temperature
p.1459

Effect of Strain on Microstructures and Mechanical Properties of Warmly Deformed SCRAM Steel for Fusion Application
p.1463

Influence of Carbon on Mechanical Behavior of Fe-Mn-C System Alloys
p.1469

Multiscale Simulation of Crack Propagation Based on Molecular Dynamics
p.1473

Numerical Simulation Study on High-Cycle Fatigue Damage for Metals
p.1477

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 941-944Effect of True Strain on Processing Maps for...

Effect of True Strain on Processing Maps for Processed Ni-Based Superalloy below γ΄-Transus Temperature

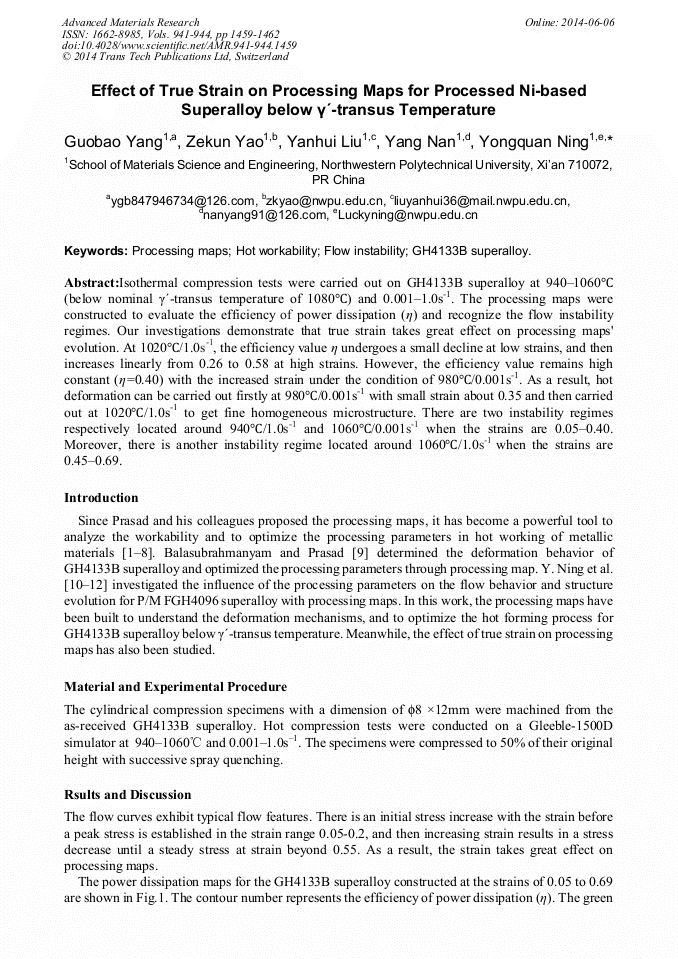

Abstract:

Isothermal compression tests were carried out on GH4133B superalloy at 940–1060°C (below nominal γ΄-transus temperature of 1080°C) and 0.001–1.0s^-1. The processing maps were constructed to evaluate the efficiency of power dissipation (η) and recognize the flow instability regimes. Our investigations demonstrate that true strain takes great effect on processing maps' evolution. At 1020°C/1.0s^-¹, the efficiency value η undergoes a small decline at low strains, and then increases linearly from 0.26 to 0.58 at high strains. However, the efficiency value remains high constant (η=0.40) with the increased strain under the condition of 980°C/0.001s^-1. As a result, hot deformation can be carried out firstly at 980°C/0.001s^-1 with small strain about 0.35 and then carried out at 1020°C/1.0s^-1 to get fine homogeneous microstructure. There are two instability regimes respectively located around 940°C/1.0s^-¹ and 1060°C/0.001s^-¹ when the strains are 0.05–0.40. Moreover, there is another instability regime located around 1060°C/1.0s^-¹ when the strains are 0.45–0.69.
