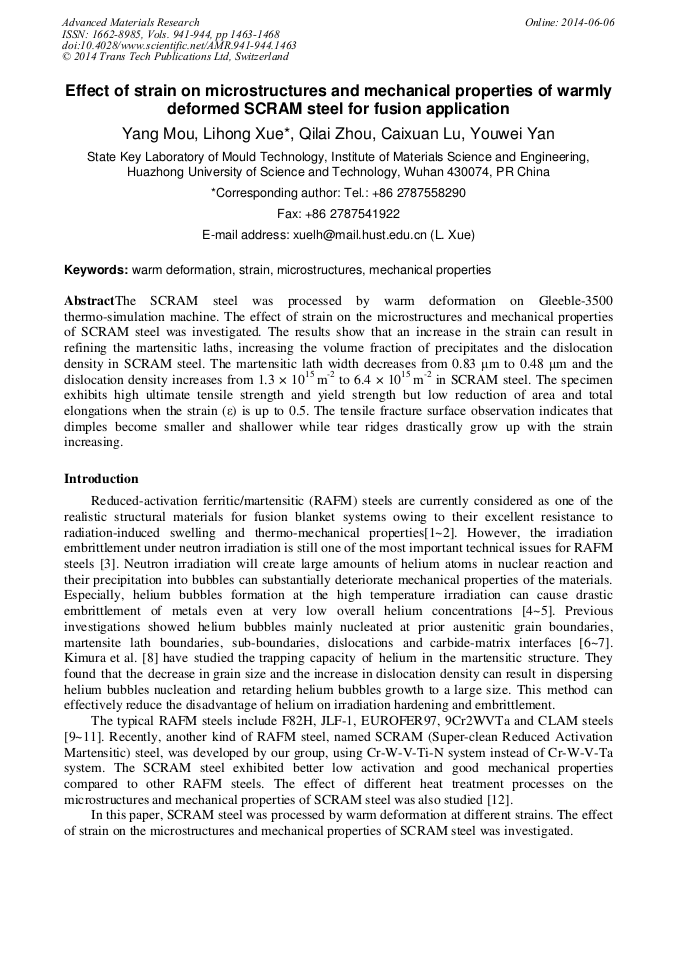

Effect of Strain on Microstructures and Mechanical Properties of Warmly Deformed SCRAM Steel for Fusion Application

Abstract:

The SCRAM steel was processed by warm deformation on Gleeble-3500 thermo-simulation machine. The effect of strain on the microstructures and mechanical properties of SCRAM steel was investigated. The results show that an increase in the strain can result in refining the martensitic laths, increasing the volume fraction of precipitates and the dislocation density in SCRAM steel. The martensitic lath width decreases from 0.83 μm to 0.48 μm and the dislocation density increases from 1.3 × 10¹⁵ m^-2 to 6.4 × 10¹⁵ m^-2 in SCRAM steel. The specimen exhibits high ultimate tensile strength and yield strength but low reduction of area and total elongations when the strain (ε) is up to 0.5. The tensile fracture surface observation indicates that dimples become smaller and shallower while tear ridges drastically grow up with the strain increasing.

• Periodical: Advanced Materials Research (Volumes 941-944)
• Pages: 1463-1468
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.941-944.1463
• Online since: June 2014
• Authors: Yang Mou, Li Hong Xue*, Qi Lai Zhou, Cai Xuan Lu, You Wei Yan
• Keywords: Mechanical Property, Microstructure, Strain, Warm Deformation

References

[1] B. van der Schaaf, D.S. Gelles, S. Jitsukawa, et al., Progress and Critical Issues of Reduced Activation Ferritic/Martensitic Steel Development. J. Nucl. Mater. 2000, 283-287: 52-59.

DOI: 10.1016/s0022-3115(00)00220-8

[2] H. Tanigawa, K. Shiba, H. Sakasegawa, et al., Technical Issues Related to the Development of Reduced-activation Ferritic/Martensitic Steels as Structural Materials for a Fusion Blanket System [J]. Fus. Eng. Des. 2011, 86: 2549-2552.

DOI: 10.1016/j.fusengdes.2011.04.047

[3] R.L. Klueh, D.S. Gelles, S. Jitsukawa, et al., Ferritic/Martensitic Steels – Overview of Recent Results, J. Nucl. Mater. 307-311 (2002) 455-465.

DOI: 10.1016/s0022-3115(02)01082-6

[4] H. Ullmaier, H. Trinkaus, Helium in Metals: Effect on Mechanical Properties, Mater. Sci. Forum. 97-99 (1992) 451.

DOI: 10.4028/www.scientific.net/msf.97-99.451

[5] H. Trinkaus, B.N. Singh, Helium Accumulation in Metals during Irradiation - Where Do We Stand? J. Nucl. Mater. 2003, 323: 229-242.

DOI: 10.1016/j.jnucmat.2003.09.001

[6] J. Henry, M. -H. Mathon, P. Jung, Microstructural Analysis of 9% Cr Martensitic Steels Containing 0. 5 at. % Helium, J. Nucl. Mater. 2003, 318: 249-259.

DOI: 10.1016/s0022-3115(03)00118-1

[7] S. Fréchard, M. Walls, M. Kociak, et al., Study by EELS of Helium Bubbles in a Martensitic Steel, J. Nucl. Mater. 2009, 393: 102-107.

DOI: 10.1016/j.jnucmat.2009.05.011

[8] A. Kimura, R. Kasada, K. Morishita, et al., High Resistance to Helium Embrittlement in Reduced Activation Martensitic Steels, J. Nucl. Mater. 2002, 307-311: 521-526.

DOI: 10.1016/s0022-3115(02)01211-4

[9] A. Kimura, R. Kasada, A. Kohyama, et al., Recent Progress in US-Japan Collaborative Research on Ferritic Steel R&D, J. Nucl. Mater. 2007, 367-370: 60-67.

DOI: 10.1016/j.jnucmat.2007.03.013

[10] N. Baluc, D.S. Gelles, S. Jitsukawa, et al., Status of Reduced Activation Ferritic/Martensitic Steel Development, J. Nucl. Mater. 2007, 367-370: 33-41.

DOI: 10.1016/j.jnucmat.2007.03.036

[11] F. Zhao, J.S. Qiao, Y. Huang, et al., Effect of Irradiation Temperature on Void Swelling of China Low Activation Martensitic Steel (CLAM), Mater. Charact. 2008, 59: 344.

DOI: 10.1016/j.matchar.2007.01.014

[12] X.S. Xiong, F. Yang, X.R. Zou, et al., Effect of Twice Quenching and Tempering on the Mechanical Properties and Microstructures of SCRAM Steel for Fusion Application, J. Nucl. Mater. 2012, 430: 114-118.

DOI: 10.1016/j.jnucmat.2012.06.047

[13] J. Pěsička, R. Kužul, A. Dronhofer, G. Eggeler, The Evolution of Dislocation Density during Heat Treatment and Creep of Tempered Martensite Ferritic Steels, Acta Mater. 2003, 51: 4847-4862.

DOI: 10.1016/s1359-6454(03)00324-0

[14] D. Rojas, J. Garcia, O. Prat, et al., Effect of Processing Parameters on the Evolution of Dislocation Density and Sub-grain Size of a 12%Cr Heat Resistant Steel During Creep at 650 ºC, Mater. Sci. Eng. A. 2011, 528: 1372-1381.

DOI: 10.1016/j.msea.2010.10.028

[15] C. Gaudin, X. Feaugas, Cyclic Creep Process in AISI 316L Stainless Steel in Terms of Dislocation Patterns and Internal Stresses, Acta Mater. 2004, 52: 3097-3110.

DOI: 10.1016/j.actamat.2004.03.011

[16] K. Takasawa, R. Ikeda, et al., Effects of Grain Size and Dislocation Density on the Susceptibility to High-pressure Hydrogen Environment Embrittlement of High-strength Low-alloy Steels, Int J Hydrogen Energy, 2012, 37: 2669-2675.

DOI: 10.1016/j.ijhydene.2011.10.099

[17] B. Hoffmann, O. Vӧhringer, E. Macherauch, Effect of Compressive Plastic Deformation on Mean Lattice Strains, Dislocation Densities and Flow Stresses of Martensitically Hardened, Mater. Sci. Eng. A. 2001, 319-321: 299-303.

DOI: 10.1016/s0921-5093(01)00978-9

[18] N. Saeidi, A. Ekrami, Impact Properties of Tempered Bainite–ferrite Dual Phase Steels, Mater. Sci. Eng. A. 2010, 527: 5575-5581.

DOI: 10.1016/j.msea.2010.05.015

[19] B. Viguier, Dislocation Densities and Strain Hardening Rate in Some Intermetallic Compounds, Mater. Sci. Eng. A. 2003, 349: 132-135.

DOI: 10.1016/s0921-5093(02)00785-2
