Design on the New Composite Rail of Beam in CNC Gantry Machine Tool

Abstract:

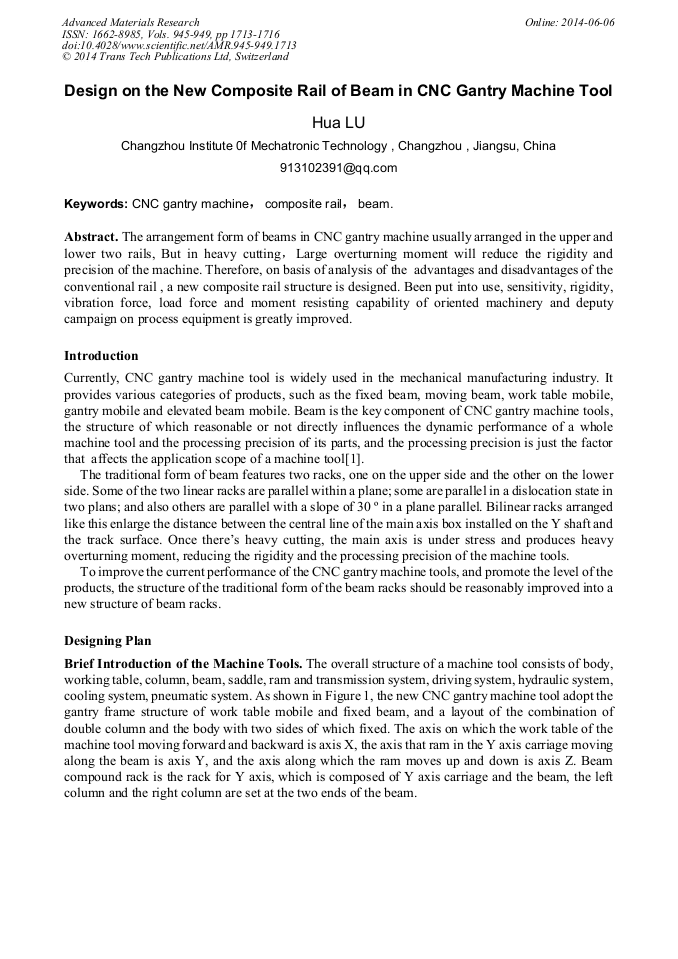

The arrangement form of beams in CNC gantry machine usually arranged in the upper and lower two rails, But in heavy cutting,Large overturning moment will reduce the rigidity and precision of the machine. Therefore, on basis of analysis of the advantages and disadvantages of the conventional rail , a new composite rail structure is designed. Been put into use, sensitivity, rigidity, vibration force, load force and moment resisting capability of oriented machinery and deputy campaign on process equipment is greatly improved.
