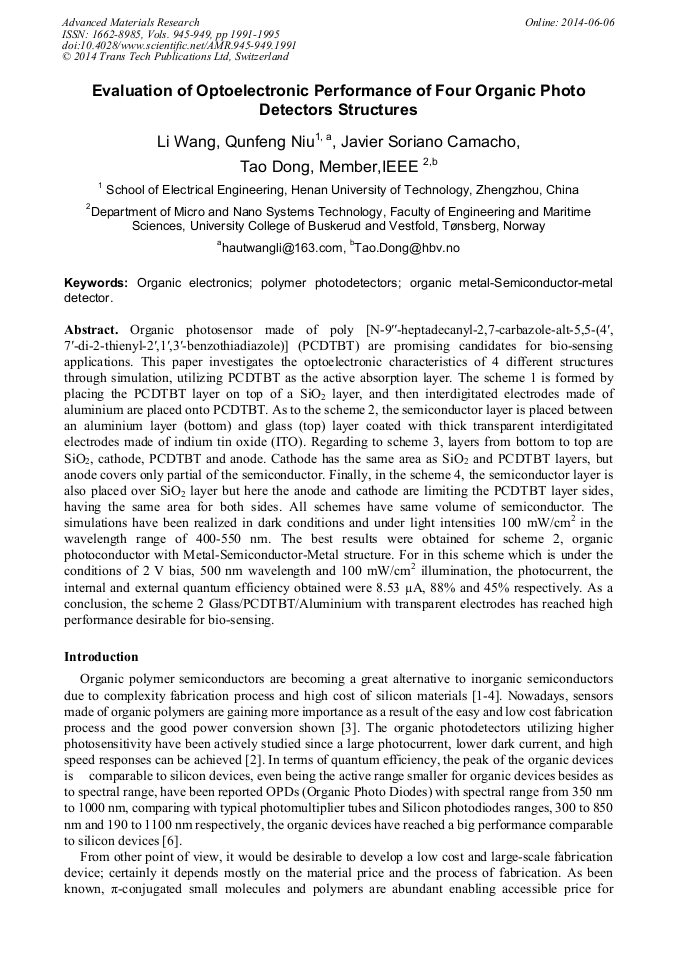

Evaluation of Optoelectronic Performance of Four Organic Photo Detectors Structures

Abstract:

Organic photosensor made of poly [N-9′′-heptadecanyl-2,7-carbazole-alt-5,5-(4′, 7′-di-2-thienyl-2′,1′,3′-benzothiadiazole)] (PCDTBT) are promising candidates for bio-sensing applications. This paper investigates the optoelectronic characteristics of 4 different structures through simulation, utilizing PCDTBT as the active absorption layer. The scheme 1 is formed by placing the PCDTBT layer on top of a SiO₂ layer, and then interdigitated electrodes made of aluminium are placed onto PCDTBT. As to the scheme 2, the semiconductor layer is placed between an aluminium layer (bottom) and glass (top) layer coated with thick transparent interdigitated electrodes made of indium tin oxide (ITO). Regarding to scheme 3, layers from bottom to top are SiO₂, cathode, PCDTBT and anode. Cathode has the same area as SiO₂ and PCDTBT layers, but anode covers only partial of the semiconductor. Finally, in the scheme 4, the semiconductor layer is also placed over SiO₂ layer but here the anode and cathode are limiting the PCDTBT layer sides, having the same area for both sides. All schemes have same volume of semiconductor. The simulations have been realized in dark conditions and under light intensities 100 mW/cm² in the wavelength range of 400-550 nm. The best results were obtained for scheme 2, organic photoconductor with Metal-Semiconductor-Metal structure. For in this scheme which is under the conditions of 2 V bias, 500 nm wavelength and 100 mW/cm² illumination, the photocurrent, the internal and external quantum efficiency obtained were 8.53 μA, 88% and 45% respectively. As a conclusion, the scheme 2 Glass/PCDTBT/Aluminium with transparent electrodes has reached high performance desirable for bio-sensing.

• Periodical: Advanced Materials Research (Volumes 945-949)
• Pages: 1991-1995
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.945-949.1991
• Online since: June 2014
• Authors: Li Wang, Qun Feng Niu, Javier Soriano Camacho, Tao Dong*
• Keywords: Organic Electronics, Organic Metal-Semiconductor-Metal Detector, Polymer Photodetectors

References

[1] Beiley, Z. M., et al, Traps, morphology and degradation in high efficiency polymer solar cells, Photovoltaic Specialists Conference (PVSC), 37th IEEE, (2011).

DOI: 10.1109/pvsc.2011.6185950

[2] Cheng, Y. -J., et al, Synthesis of conjugated polymers for organic solar cell applications, ChemInform, Vol. 41, 740-741, (2010).

[3] Dennler, G., et al, Polymer‐Fullerene Bulk‐Heterojunction Solar Cells, Advanced Materials, Vol. 21, 1323-1338, (2009).

DOI: 10.1002/adma.200801283

[4] Espinosa, N., et al, Solar cells with one-day energy payback for the factories of the future, Energy & Environmental Science, Vol. 5, 5117-5132, (2012).

DOI: 10.1039/c1ee02728j

[5] Pires, N. M., et al, A mediator embedded micro-immunosensing unit for electrochemical detection on viruses within physiological saline media, Journal of Micromechanics and Microengineering, Vol. 21, 115031, (2011).

DOI: 10.1088/0960-1317/21/11/115031

[6] Shinar, R. and J. Shinar, Organic electronics in sensors and biotechnology, McGraw-Hill, Inc, (2009).

[7] Zhao, X., et al, Compatible immuno-NASBA LOC device for quantitative detection of waterborne pathogens: design and validation, Lab on a Chip, Vol. 5, 602-612, (2012).

DOI: 10.1039/c1lc20836e

[8] Z. Yang, T. Dong, and E. Halvorsen, Identification of microfluidic two-phase flow patterns in lab-on-chip devices, Biomed. Mater. Eng., Vol. 23, 77–83, (2013).

DOI: 10.3233/bme-130786

[9] J. Staginus, I. M. Aerts, Z. Chang, G. C. M. Meijer, L. C. P. de Smet, and E. J. R. Sudhölter, Capacitive response of PDMS-coated IDE platform directly exposed to aqueous solutions containing volatile organic compounds, Sensors Actuators B, Vol. 184, 130–142, (2013).

DOI: 10.1016/j.snb.2013.04.041

[10] Nuno Miguel Matos Pires, Tao Dong, Ulrik Hanke and Nils Hoivik, An integrated optical microfluidic biosensor using a polycarbazole photodetector for point-of-care detection of hormonal compounds, Journal of Biomedical Optics, Vol. 18, 097001, (2009).

DOI: 10.1117/1.jbo.18.9.097001

[11] J. Z. Chen, A. A. Darhuber, S. M. Troian, and S. Wagner, Capacitive sensing of droplets for microfluidic devices based on thermocapillary actuation, Lab Chip, Vol. 4, 473–480, (2004).

DOI: 10.1039/b315815b

[12] Tong Zhou, Tao Dong, et al, High accurate and low-cost wireless 16-channel measurement system for multi-layer thin film characterization. Measurement, Vol. 46, 3600–3611, (2013).

DOI: 10.1016/j.measurement.2013.06.051
