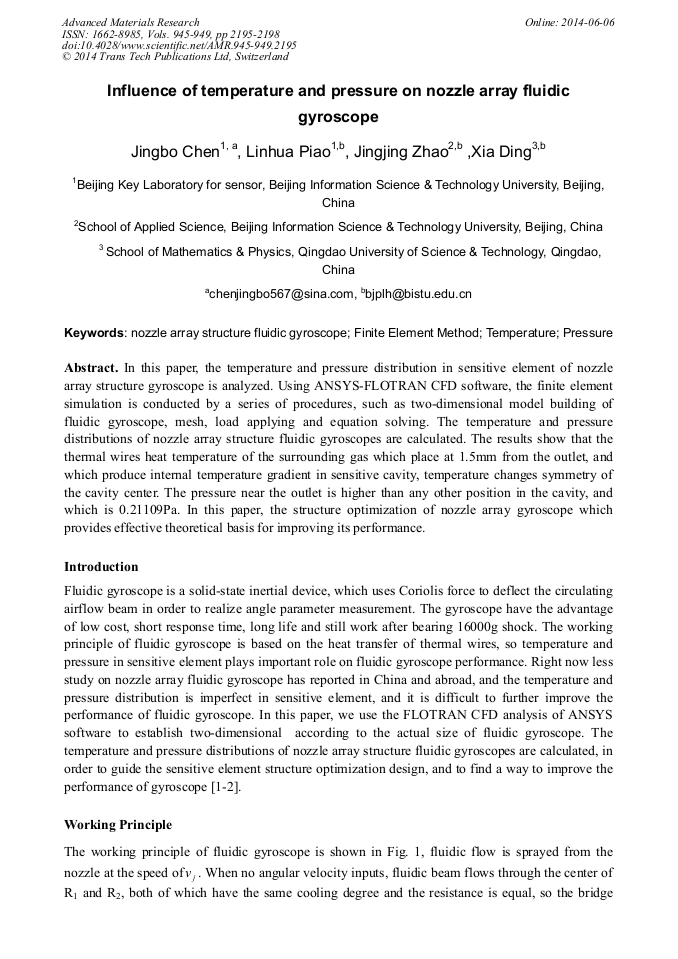

Influence of Temperature and Pressure on Nozzle Array Fluidic Gyroscope

Abstract:

In this paper, the temperature and pressure distribution in sensitive element of nozzle array structure gyroscope is analyzed. Using ANSYS-FLOTRAN CFD software, the finite element simulation is conducted by a series of procedures, such as two-dimensional model building of fluidic gyroscope, mesh, load applying and equation solving. The temperature and pressure distributions of nozzle array structure fluidic gyroscopes are calculated. The results show that the thermal wires heat temperature of the surrounding gas which place at 1.5mm from the outlet, and which produce internal temperature gradient in sensitive cavity, temperature changes symmetry of the cavity center. The pressure near the outlet is higher than any other position in the cavity, and which is 0.21109Pa. In this paper, the structure optimization of nozzle array gyroscope which provides effective theoretical basis for improving its performance.

• Periodical: Advanced Materials Research (Volumes 945-949)
• Pages: 2195-2198
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.945-949.2195
• Online since: June 2014
• Authors: Jing Bo Chen, Lin Hua Piao*, Jing Jing Zhao, Xia Ding
• Keywords: Finite Element Method (FEM), Nozzle Array Structure Fluidic Gyroscope, Pressure, Temperature

References

[1] F.X. Zhang: Modern Piezoelectricity (Science Press, China 2002).

[2] L.H. Piao, B. Zhang, F.X. Zhang: submitted to Piezoelectric and Acousto-optic (2005).

[3] G.Q. Wang: Numerical simulation of practical engineering in ANSYS (Northwestern Polytechnical University Press, China 1999).

[4] Y. Xu. S.S. Dang, R.X. Hu: ANSYS11. 0/FLOTRAN flow analysis examples tutorial (Mechanical Industry Press, China 2009).

[5] F.X. Zhang: submitted to Journal of Beijing Information Science and Technology University (2009).
