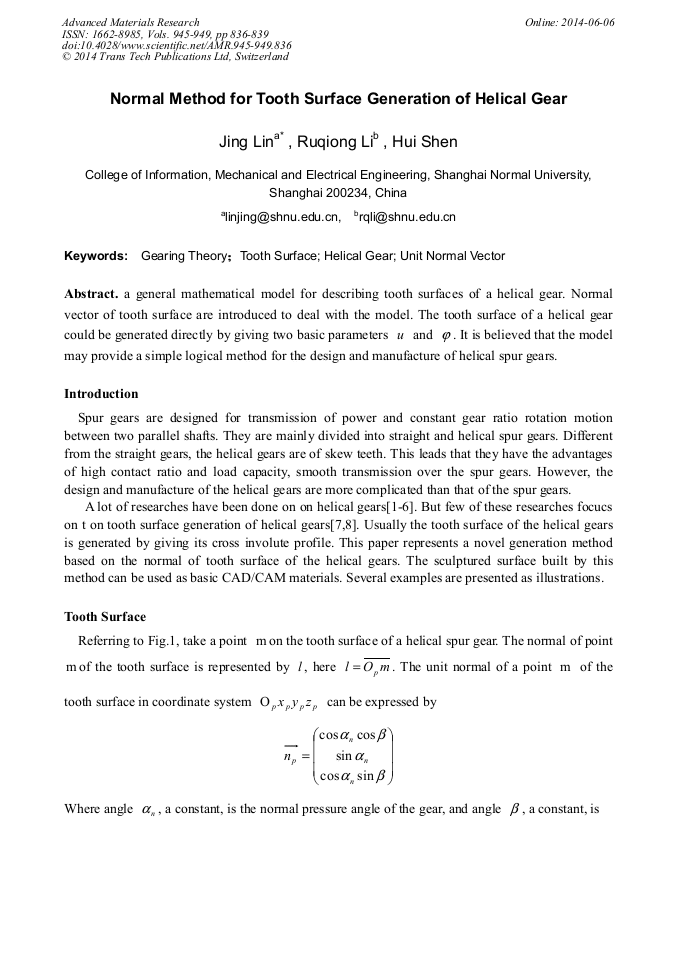

Normal Method for Tooth Surface Generation of Helical Gear

Abstract:

a general mathematical model for describing tooth surfaces of a helical gear. Normal vector of tooth surface are introduced to deal with the model. The tooth surface of a helical gear could be generated directly by giving two basic parameters and . It is believed that the model may provide a simple logical method for the design and manufacture of helical spur gears.
