Structure and Optical Property of Cu₂O:N Thin Film Deposited by Reactive Pulse Magnetron Sputtering

Abstract:

N-doped Cu₂O (Cu₂O:N) thin films were deposited on glass substrate by reactive pulse magnetron sputtering method using Cu target. Crystalline phases of thin films were controlled by adjusting N₂ / O₂ flow rate ratio and sputtering power precisely during the sputtering process, and the single phase of Cu₂O(111) thin films were obtained at room temperature. The thin films deposited at different sputtering powers were characteristics of 2D growth and the root mean square (RMS) of surface roughness of thin films gradually increased with the increasing of sputtering power. The optical band gap (E_g) of thin films were in the range 2.18-2.35 eV, and slightly decreased with increasing of sputtering power from 45 W to 90 W.

You might also be interested in these eBooks

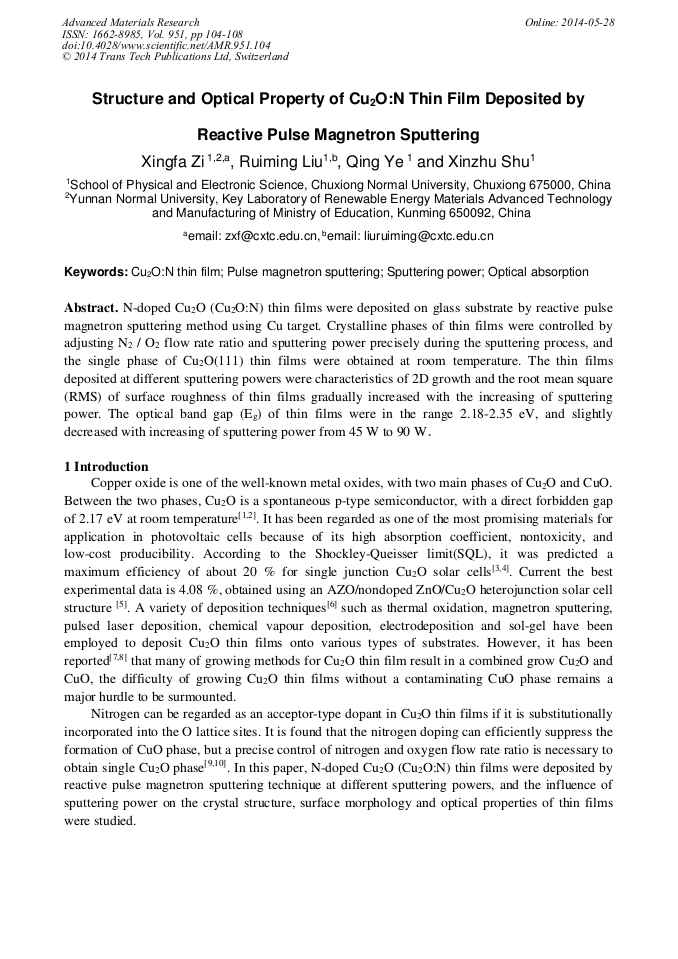

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 951)

Pages:

104-108

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.951.104

Citation:

Cite this paper

Online since:

May 2014

Authors:

Xing Fa Zi*, Rui Ming Liu, Qing Ye, Xin Zhu Shu

Keywords:

Cu₂O:N Thin Film, Optical Absorption, Pulse Magnetron Sputtering, Sputtering Power

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Joonsung Sohn, Sang-Hun Song, Dong-Woo Nam, In-Tak Cho, Eou-Sik Cho, Jong-Ho Lee, and Hyuck-In Kwon: Semicond. Sci. Technol. Vol. 28 - 015005 (2013), pp.1-5.

Google Scholar

[2] Lung-Chien Chen, Chung-ChiehWang, and Suz-Wei Lu: Journal of Nanomaterials Vol. 891365 (2013), pp.1-6.

Google Scholar

[3] B.B. Li, L. Lin, H.L. Shen, F.E. Boafo, Z.F. Chen, B. Liu and R. Zhang: Eur. Phys. J. Appl. Phys. Vol. 58-20303 (2012), p.1–4.

Google Scholar

[4] Claudia Malerba, Cristy Leonor Azanza Ricardo, Mirco D'Incau, Francesco Biccari, Paolo Scardi and Alberto Mittiga: Solar Energy Materials & Solar Cells Vol. 105(2012), p.192–195.

DOI: 10.1016/j.solmat.2012.06.017

Google Scholar

[5] Yuki Nishi, Toshihiro Miyata, and Tadatsugu Minami: J. Vac. Sci. Technol. A Vol. 30-4(2012), pp.1-6.

Google Scholar

[6] M. Hari Prasad Reddy, J. F. Pierson and S. Uthanna: Phys. Status Solidi A Vol. 209-7 (2012), p.1279–1286.

Google Scholar

[7] A A Ogwu, E Bouquerel, O Ademosu, S Moh, E Crossan and F Placido: J. Phys. D: Appl. Phys. Vol. 38(2005), p.266–27.

DOI: 10.1088/0022-3727/38/2/011

Google Scholar

[8] R. Chandra, A. K. Chawla and P. Ayyub: J. Nanosci. Nanotechnol. Vol. 6-4(2006), p.1119–1123.

Google Scholar

[9] Shogo IsHIZUKA, Shinya KATO, Takahiro MARUYAMA and Katsuhiro AKIMOTO: Jpn. J. Appl. Phys. Vol. 40 (2001), p.2765–2768.

Google Scholar

[10] H.J. Li, C.Y. Pu, C.Y. Ma, Sh. Li, W.J. Dong, S.Y. Bao and Q.Y. Zhang: Thin Solid Films Vol. 520 (2011), p.212–216.

DOI: 10.1016/j.tsf.2011.07.037

Google Scholar
