Statics Analysis of Rails on CNC Glass Edger

Abstract:

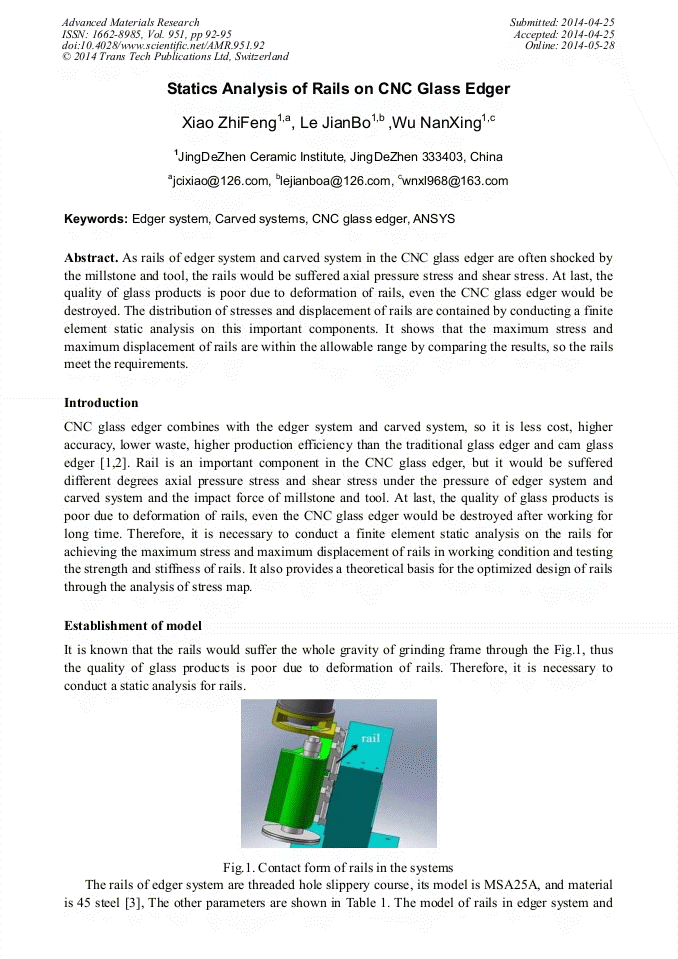

As rails of edger system and carved system in the CNC glass edger are often shocked by the millstone and tool, the rails would be suffered axial pressure stress and shear stress. At last, the quality of glass products is poor due to deformation of rails, even the CNC glass edger would be destroyed. The distribution of stresses and displacement of rails are contained by conducting a finite element static analysis on this important components. It shows that the maximum stress and maximum displacement of rails are within the allowable range by comparing the results, so the rails meet the requirements.
