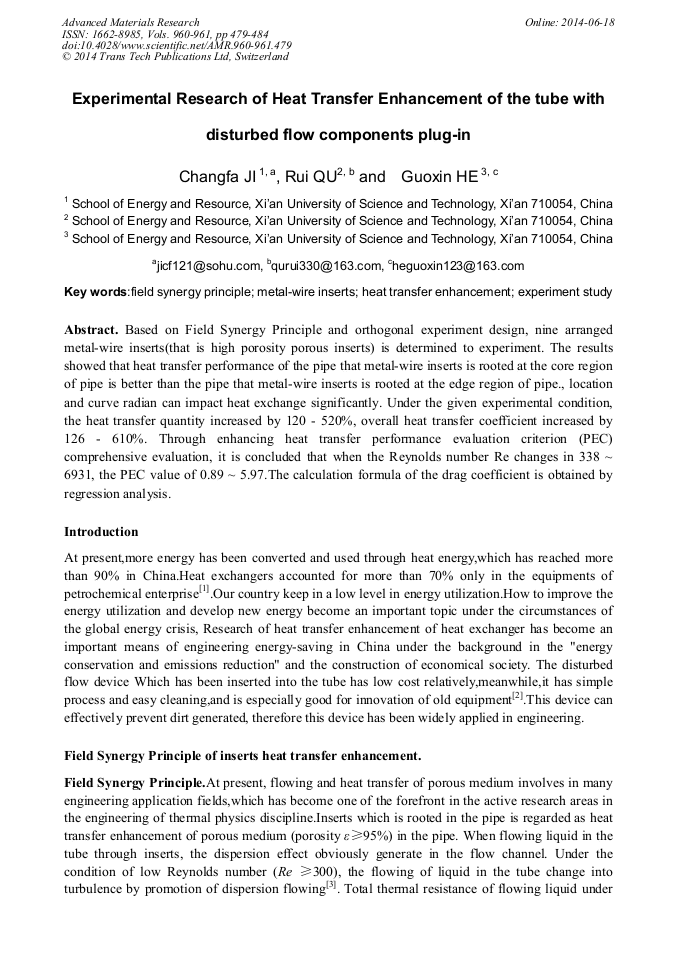

Experimental Research of Heat Transfer Enhancement of the Tube with Disturbed Flow Components Plug-In

Abstract:

Based on Field Synergy Principle and orthogonal experiment design, nine arranged metal-wire inserts(that is high porosity porous inserts) is determined to experiment. The results showed that heat transfer performance of the pipe that metal-wire inserts is rooted at the core region of pipe is better than the pipe that metal-wire inserts is rooted at the edge region of pipe., location and curve radian can impact heat exchange significantly. Under the given experimental condition, the heat transfer quantity increased by 120 - 520%, overall heat transfer coefficient increased by 126 - 610%. Through enhancing heat transfer performance evaluation criterion (PEC) comprehensive evaluation, it is concluded that when the Reynolds number Re changes in 338 ~ 6931, the PEC value of 0.89 ~ 5.97.The calculation formula of the drag coefficient is obtained by regression analysis.

• Periodical: Advanced Materials Research (Volumes 960-961)
• Pages: 479-484
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.960-961.479
• Online since: June 2014
• Authors: Chang Fa Ji, Rui Qu, Guo Xin He
• Keywords: Experiment Study, Field Synergy Principle, Heat Transfer Enhancement, Metal-Wire Inserts

References

[1] Bergles A.E. ，Junkhan.G. H and Webb R.L. Energy conservation via heat transfer enhancement[J]. Paper No. EGY 205, (1978).

DOI: 10.2172/6168485

[2] V.V. Wadekar. Improving industrial heat transfer-compact and not-so-compact heat exchangers Enhanced Heat Transfer[J]. 1998, 5: 53～69.

DOI: 10.1615/jenhheattransf.v5.i1.50

[3] Eastman J A, Choi U S. Novel thermal properties of nanostructured materials. Mater Sci Forum, 1999, 313: 629～634.

[4] Zengyuan Guo, Suyi Huang. Field Synergy Principle and New Technology of Heat Transfer Enhancement [M]. Beijing: China Electric Power Press, ( 2004)., p.2~10.

[5] S Wang，Z Y Guo, Z X Li. Heat Transfer Enhancements by Using Metallic Filament Insert in Channel Flow. Int. J. of Heat and Mass Transfer, 2001, 44(7): 1373～1378.

DOI: 10.1016/s0017-9310(00)00173-3

[6] Shaohua Zheng, Fenghua Jiang. Experimental Design and Data Processing [M]. Beijing: China Building Materials Industry Press, (2004), p.58~60.

[7] Agrawal K N, Kumar A, Akhavan M A, et al. Heat transfer augmenttation by coiled wire inserts during forced convection condensation of R-22 inside horizontal tubes. Int.J. Multiphase Flow, 1998, 24(4): 635 ～650.

DOI: 10.1016/s0301-9322(97)00061-x

[8] T. Kuppan. Heat Exchanger Design Handbook. Beijing: China Petrochemical Press, (2004).
