HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 960-961Analysis on Heat Transfer Energy Efficiency of...

Analysis on Heat Transfer Energy Efficiency of U-Tube Buried Pipe under Variable Entering Water Temperature Conditions

Abstract:

Taken as the carrier of heat extraction between rock-soil body and ground source heat pump systems, U-tubed pipe heat transfer efficiency was the key for ensuring the long-term and high-performance operation of ground source heat pump systems by means of improving the heat transfer effect. The efficiency coefficient, E, is defined as the ratio of the actual heat transfer capacity to the theoretically maximal heat transfer capacity from the U-tube into rock-soil body, which illustrated the effect of heat transfer ability and the variable heating or cooling loads. Aim at Variation characteristics of heat transfer coefficient of energy efficiency under the variable temperature inflow condition, decomposed into the product of the ratio of biggest buried tube heat transfer temperature difference φ and heat pump outlet water temperature difference σ. Use of u-shaped buried pipe three-dimensional heat transfer model which based on the multipole theory, the influence law of its change which caused by the construction load, buried pipe flow and the unit performance were analyzed, it can provide technical support to optimize the design of ground source heat pump system.

You might also be interested in these eBooks

Thermal, Power and Electrical Engineering III

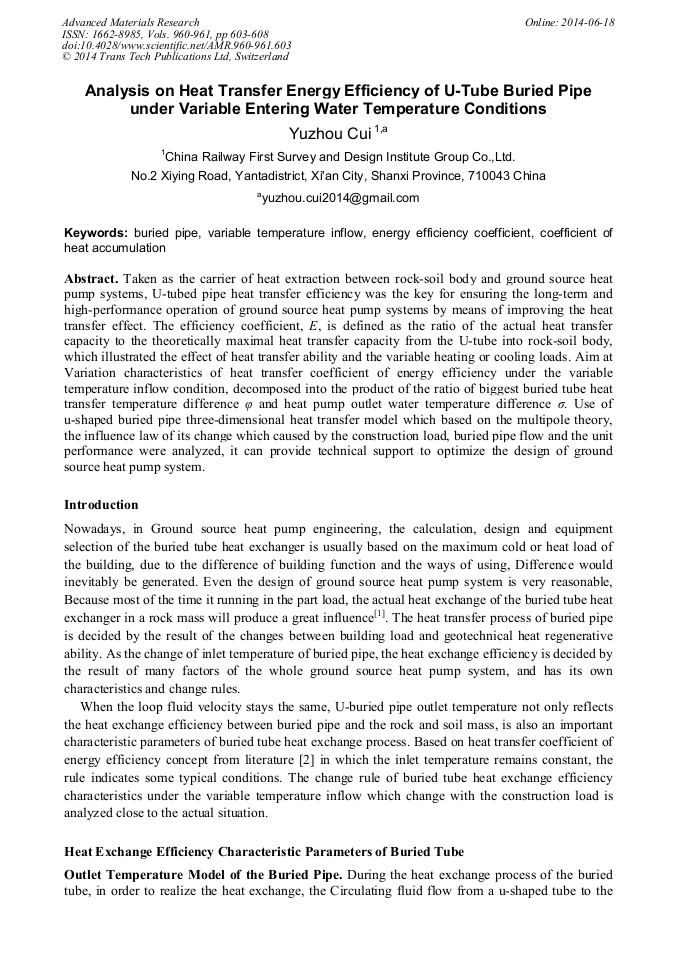

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 960-961)

Pages:

603-608

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.960-961.603

Citation:

Cite this paper

Online since:

June 2014

Authors:

Yu Zhou Cui*

Keywords:

Buried Pipe, Coefficient of Heat Accumulation, Energy Efficiency Coefficient, Variable Temperature Inflow

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Xianying Liu, Mingming Hu and Tangdi Wei. Journal of Chongqing Jianzhu University，Vol. 4 (1999)，P. 106 in Chinese.

Google Scholar

[2] Zhongyi Yu, Yanhua Chen and Pingfang Hu. HV&AC，Vol. 41 (2010)，P. 93 in Chinese.

Google Scholar

[3] Pingfang Hu, Zhongyi Yu, Na Zhu, Fei Lei, et al. Energy and Buildings，Vol. 65 (2013)，P. 231.

Google Scholar

[4] China Academy of Building Research. Technical Code for Ground-Source Heat Pump System (GB50366-2005). Peking: China Building Industry Press. （2009）in Chinese.

Google Scholar
