HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 969Investigation of Selected Physical Parameters of...

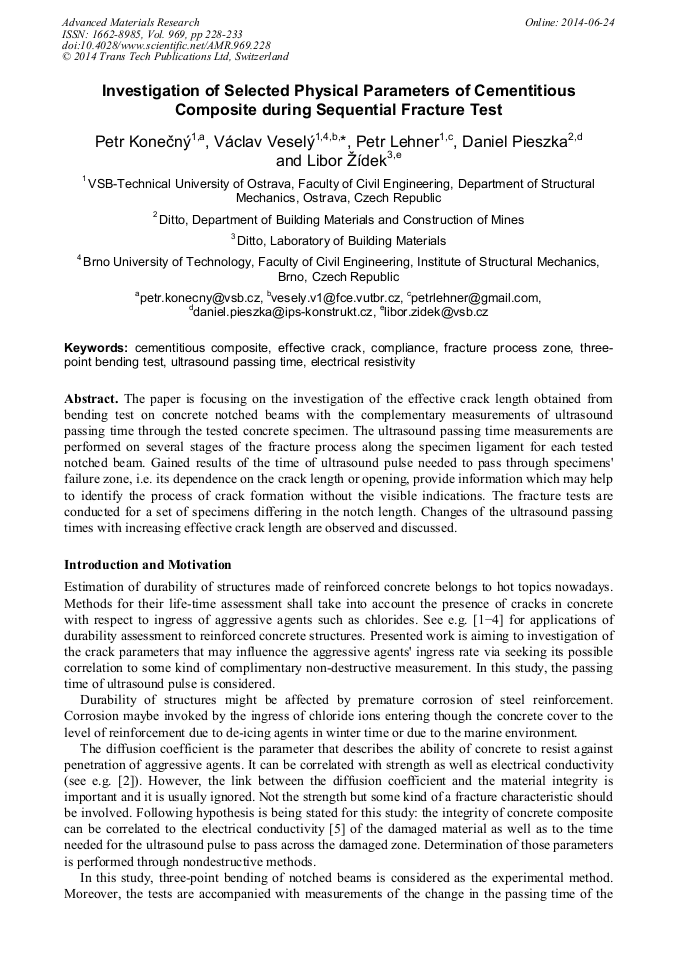

Investigation of Selected Physical Parameters of Cementitious Composite during Sequential Fracture Test

Abstract:

The paper is focusing on the investigation of the effective crack length obtained from bending test on concrete notched beams with the complementary measurements of ultrasound passing time through the tested concrete specimen. The ultrasound passing time measurements are performed on several stages of the fracture process along the specimen ligament for each tested notched beam. Gained results of the time of ultrasound pulse needed to pass through specimens' failure zone, i.e. its dependence on the crack length or opening, provide information which may help to identify the process of crack formation without the visible indications. The fracture tests are conducted for a set of specimens differing in the notch length. Changes of the ultrasound passing times with increasing effective crack length are observed and discussed.

You might also be interested in these eBooks

Structural and Physical Aspects of Civil Engineering

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 969)

Pages:

228-233

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.969.228

Citation:

Cite this paper

Online since:

June 2014

Authors:

Petr Konečný*, Václav Veselý, Petr Lehner, Daniel Pieszka, Libor Žídek

Keywords:

Cementitious Composite, Compliance, Effective Crack, Electrical Resistivity, Fracture Process Zone, Three-Point Bending Test, Ultrasound Passing Time

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] P. Konečný, P.J. Tikalsky and D.G. Tepke: Transportation Research Record, vol. 2020/2007, ISSN: 0361-(1981).

Google Scholar

[2] P. Ghosh, A. Hammond, and P.J. Tikalsky: ACI Mater J, 108(1) (2011), p.88.

Google Scholar

[3] D. Vořechovská, B. Teplý and M. Chromá: J Perform Constr Fac, ASCE, 24(6) (2010), p.571.

Google Scholar

[4] B. Teplý, M. Chromá, D. Vořechovská and P. Rovnaník: FReET Deterioration Module version 1. 3 (FReET-D), Program Documentation, Part 1, Theory, Revision 09/(2012).

Google Scholar

[5] V. Veselý, P. Konečný, P. Lehner, P. Pařenica, J. Hurta and L. Žídek: Key Eng Mat, Vols. 577–578 (2014), p.265–268, doi: 10. 4028/www. scientific. net/KEM. 577-578. 265.

DOI: 10.4028/www.scientific.net/kem.577-578.265

Google Scholar

[6] B.L. Karihaloo: Fracture mechanics and structural concrete (Longman Sci. & Techn., 1995).

Google Scholar

[7] S.P. Shah, S.E. Swartz and C. Ouyang: Fracture mechanics of structural concrete: applications of fracture mechanics to concrete, rock, and other quasi-brittle materials (Wiley, 1995).

DOI: 10.1016/0141-0296(96)84816-4

Google Scholar

[8] Z.P. Bažant and J. Planas: Fracture and size effect in concrete and other quasibrittle materials (CRC Press, 1998).

DOI: 10.1201/9780203756799

Google Scholar

[9] V. Veselý: Parameters of concrete for description of fracture behaviour (in Czech). Ph.D. Thesis, Faculty of Civil Engineering, BUT Brno, (2004).

Google Scholar
