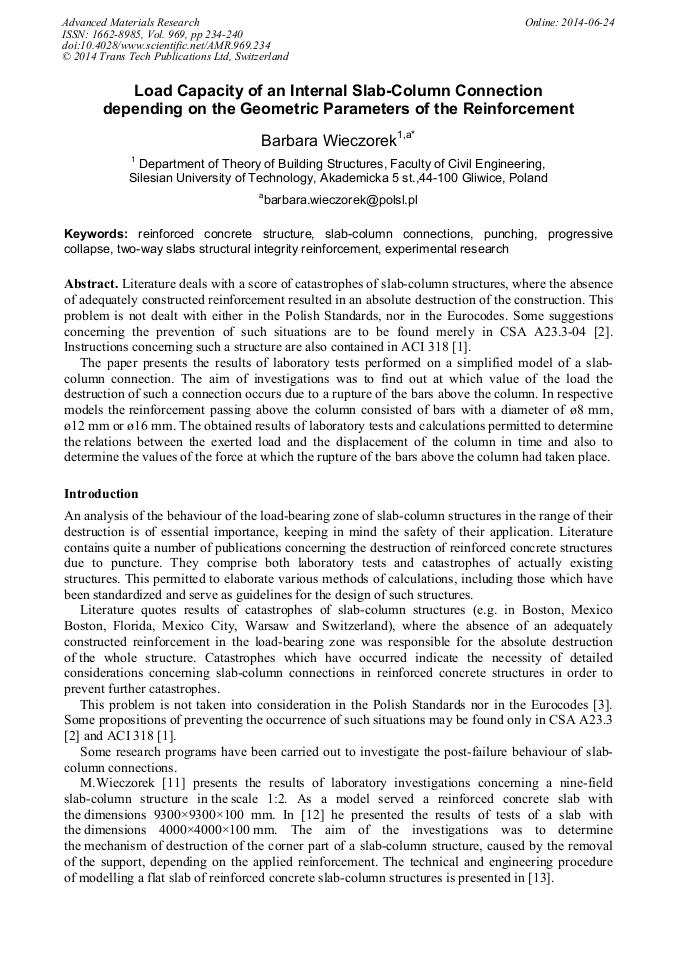

Load Capacity of an Internal Slab-Column Connection depending on the Geometric Parameters of the Reinforcement

Abstract:

Literature deals with a score of catastrophes of slab-column structures, where the absence of adequately constructed reinforcement resulted in an absolute destruction of the construction. This problem is not dealt with either in the Polish Standards, nor in the Eurocodes. Some suggestions concerning the prevention of such situations are to be found merely in CSA A23.3-04. Instructions concerning such a structure are also contained in ACI 318. The paper presents the results of laboratory tests performed on a simplified model of a slab-column connection. The aim of investigations was to find out at which value of the load the destruction of such a connection occurs due to a rupture of the bars above the column. In respective models the reinforcement passing above the column consisted of bars with a diameter of ø8 mm, ø12 mm or ø16 mm. The obtained results of laboratory tests and calculations permitted to determine the relations between the exerted load and the displacement of the column in time and also to determine the values of the force at which the rupture of the bars above the column had taken place.

• Periodical: Advanced Materials Research (Volume 969)
• Pages: 234-240
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.969.234
• Online since: June 2014
• Authors: Barbara Wieczorek*
• Keywords: Experimental Research, Progressive Collapse, Punching, Reinforced Concrete Structure, Slab-Column Connections, Two-Way Slabs Structural Integrity Reinforcement

References

[1] ACI Committee 318, Building code requirements for structural concrete and commentary, American Concrete Institute, United State America, (2011).

[2] CSA Standard A23. 3-04, Design of concrete structures, Canadian Standard Association, (2004).

[3] PN-EN 1992-1-1: 2004/AC, Eurocode 2, Design of concrete structures - Part 1-1: General rules and rules for buildings, European Standard, (2010).

DOI: 10.3403/03178016

[4] N.M. Hawkins, D. Mitchell, Progressive collapse of flat plate structures. Journal of the American Concrete Institute, 76(7), (1979).

[5] G. Melo, P. Regan, Post-punching resistance of connections between flat slabs and interior columns, Magazine of Concrete Research, 50(4), (1998).

DOI: 10.1680/macr.1998.50.4.319

[6] Y. Mirzaei, Post-punching behavior of reinforced concrete slabs. Ph.D. thesis, School of Architecture, Civil and Environmental Engineering, Ecole polytechnique fédérale de Lausanne (EPFL), Switzerland, (2010).

DOI: 10.3940/rina.innovsail.2010.14

[7] J. Sagaseta, A. Muttoni, M. Fernandez Ruiz, L. Tassinari, Non-axis-symmetrical punching shear around internal columns of RC slabs without transverse reinforcement, Magazine of Concrete Research, Paper 1000098, UK, (2011).

DOI: 10.1680/macr.10.00098

[8] B. Wieczorek, Influence of the location of the column on the load capacity of a slab-column connection for the inner column after punching, Procedia Engineering, Volume 57, (2013).

DOI: 10.1016/j.proeng.2013.04.158

[9] B. Wieczorek, Idea of a simplified model to determination of the load capacity of an inner slab-column connection after its punching, Procedia Engineering, Volume 65, (2013).

DOI: 10.1016/j.proeng.2013.09.022

[10] B. Wieczorek, Load-bearing capacity of reinforcing bars in the zone of the slab-column connection determined experimentally and in the result of numerical calculations, Procedia Engineering, Volume 65, (2013).

DOI: 10.1016/j.proeng.2013.09.025

[11] M. Wieczorek, Influence of amount and arrangement of reinforcement on the mechanism of destruction of the corner part of a slab-column structure, Procedia Engineering, Volume 57, (2013).

DOI: 10.1016/j.proeng.2013.04.159

[12] M. Wieczorek, Investigations concerning the corner part of the reinforced concrete structure in the emergency of removing the corner support, Procedia Engineering, Volume 65, (2013).

DOI: 10.1016/j.proeng.2013.09.023

[13] M. Wieczorek, Concept of shell-beam model of slab-column connection based on analysis of the 3D model, Procedia Engineering, Volume 65, (2013).

DOI: 10.1016/j.proeng.2013.09.026
