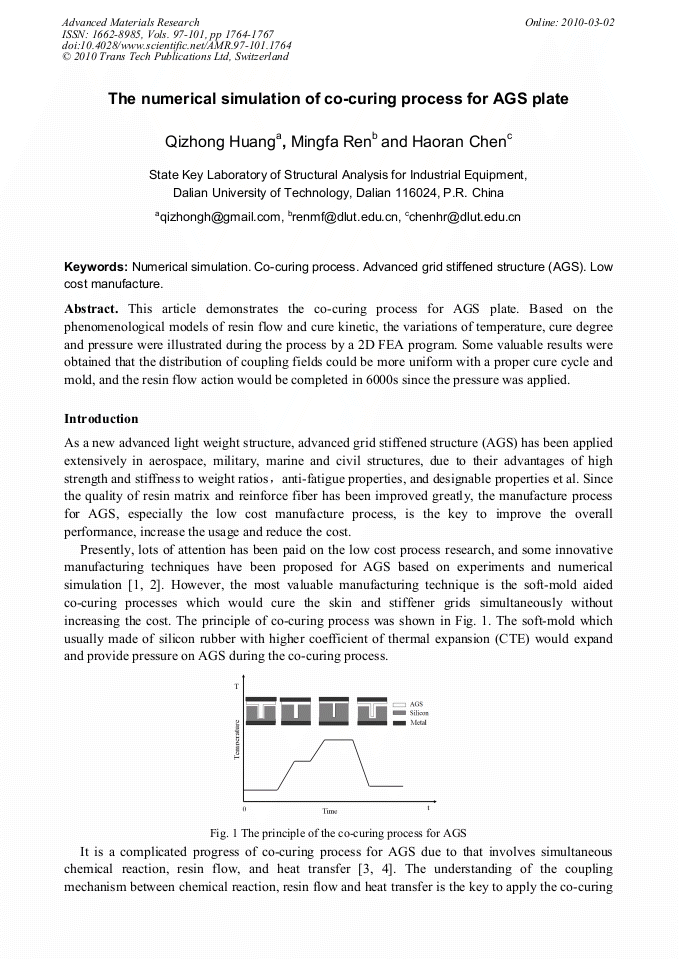

The Numerical Simulation of Co-Curing Process for AGS Plate

Abstract:

This article demonstrates the co-curing process for AGS plate. Based on the phenomenological models of resin flow and cure kinetic, the variations of temperature, cure degree and pressure were illustrated during the process by a 2D FEA program. Some valuable results were obtained that the distribution of coupling fields could be more uniform with a proper cure cycle and mold, and the resin flow action would be completed in 6000s since the pressure was applied.
