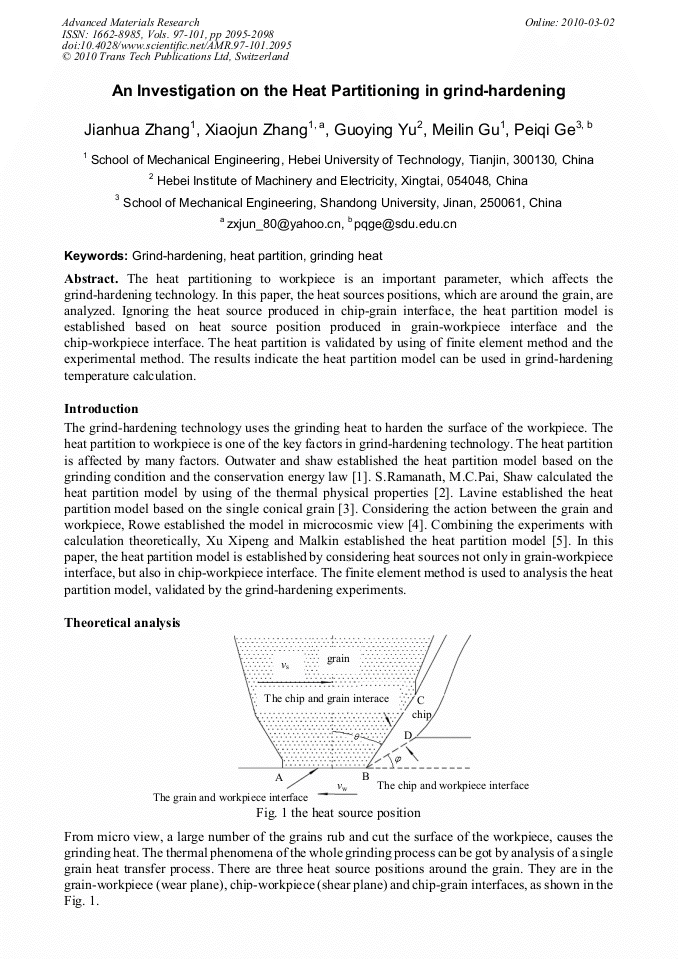

An Investigation on the Heat Partitioning in Grind-Hardening

Jian Hua Zhang; Xiao Jun Zhang; Guo Ying Yu; Mei Lin Gu; Pei Qi Ge

doi:10.4028/www.scientific.net/AMR.97-101.2095

Paper Titles

Thermal and Shear Characteristics Study of Various Mechanical Polishing Materials
p.2076

Effect of Tool Inclination Angle on Surface Quality in 5-Axis Ball-End Milling
p.2080

Non-Special Dressing Electrode Experimental Study on ELID Grinding
p.2085

The Grinding Head Design in Non-Circular Gear Grinding Teeth Based on the Planar Regions Interference Inspection
p.2089

An Investigation on the Heat Partitioning in Grind-Hardening
p.2095

The Control Algorithm of Ultrasonic-Magnetorheological Combined Finishing for Rotary Symmetrical Aspheric Surface
p.2099

Vacuum Dehumidifying Dryer for PET Chips
p.2103

Failure Mechanism of Twist Drill in Vibration Drilling of Duralumin
p.2107

Effects of Grinding Wheel Vibration on Surface Quality of Axisymmetric Aspheric Lens
p.2111

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 97-101An Investigation on the Heat Partitioning in...

An Investigation on the Heat Partitioning in Grind-Hardening

Abstract:

The heat partitioning to workpiece is an important parameter, which affects the grind-hardening technology. In this paper, the heat sources positions, which are around the grain, are analyzed. Ignoring the heat source produced in chip-grain interface, the heat partition model is established based on heat source position produced in grain-workpiece interface and the chip-workpiece interface. The heat partition is validated by using of finite element method and the experimental method. The results indicate the heat partition model can be used in grind-hardening temperature calculation.
