Analytical Model of Thermal Stress for Encapsulation and Service Process of Solar Cell Module

Abstract:

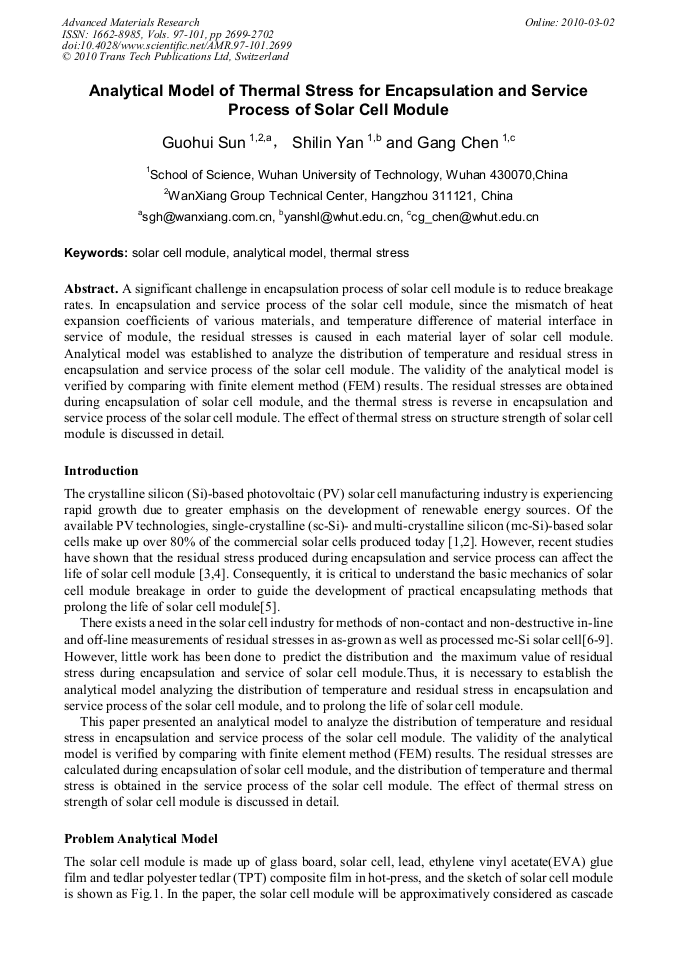

Article Preview

A significant challenge in encapsulation process of solar cell module is to reduce breakage rates. In encapsulation and service process of the solar cell module, since the mismatch of heat expansion coefficients of various materials, and temperature difference of material interface in service of module, the residual stresses is caused in each material layer of solar cell module. Analytical model was established to analyze the distribution of temperature and residual stress in encapsulation and service process of the solar cell module. The validity of the analytical model is verified by comparing with finite element method (FEM) results. The residual stresses are obtained during encapsulation of solar cell module, and the thermal stress is reverse in encapsulation and service process of the solar cell module. The effect of thermal stress on structure strength of solar cell module is discussed in detail.

Info:

Periodical:

Advanced Materials Research (Volumes 97-101)

Edited by:

Zhengyi Jiang and Chunliang Zhang

Pages:

2699-2702

Citation:

G. H. Sun et al., "Analytical Model of Thermal Stress for Encapsulation and Service Process of Solar Cell Module", Advanced Materials Research, Vols. 97-101, pp. 2699-2702, 2010

Online since:

March 2010

Export:

Price:

$38.00

[1] H.J. Moller, C. Funke, M. Rinio and S. Scholz: Thin Solid Films Vol. 487 (2005), p.179.

[2] N.G. Dhere: Solar Energy Materials and Solar Cells Vol. 91 (2007), p.1376.

[3] F. Claudia, K. Eckehard, K. Meinhard and M.H. Joachim: Advanced Engineering Materials Vol. 6 (2004), p.596.

[4] F. Ebrahimi, L. Kalwani: Materials Science and Engineering Vol. 268 (1999), p.16.

[5] S. He, T. Zheng and S. Danyluk: Journal of Applied Physics Vol. 96 (2004), p.3103.

[6] Ostapenko S, Tarasov I, Kalejs JP, Haessler C and Reisner EU: Semicond Sci Technol Vol. 15(2000), p.840.

[7] Gogotsi Y, Baek C and Kirscht F: Semicond Sci Technol Vol. 14(1999), p.936.

[8] Yamada M: Appl Phys Lett Vol. 47(1985), p.365.

[9] Ostapenko S, Tarasov I: Appl Phys Lett Vol. 76(2000), p.221.
