Preparation and Mechanical Characterization of Amorphous B-C Films

Abstract:

This study has demonstrated that trimethylboron, B(CH₃)₃ is a suitable boron source material for the fabrication amorphous boron carbide (a-BC:H) films. a-BC:H films were deposited by pluse plasma chemical vapor deposition on a silicon substrate (100) with different gas pressures and gas flow rates at constant voltage, -5 kV . The grown a-BC:H films were found to be porous surface and their thickness were in the range of 0.95 to 1.56 μm for 3 h of deposition time. Results indicated that the boron contents, morphologies and mechanical properties of the a-BC:H films were dependent on the gas pressures and gas flow rate. The increased of boron content will introduce more porous film surface. The effect of boron content on the mechanical properties such as hardness, Youngs modulus, and wear resistance were discussed. The good quality film is obtained from B(CH₃)₃ at 5 Pa and gas flow rate of 15 cm³/min which boron to carbon atomic ratio is 0.43. This film has lower friction coefficient (0.3) sliding against stainless steel ball, high hardness (8.1 GPa) and Youngs modulus (62.2 GPa).

You might also be interested in these eBooks

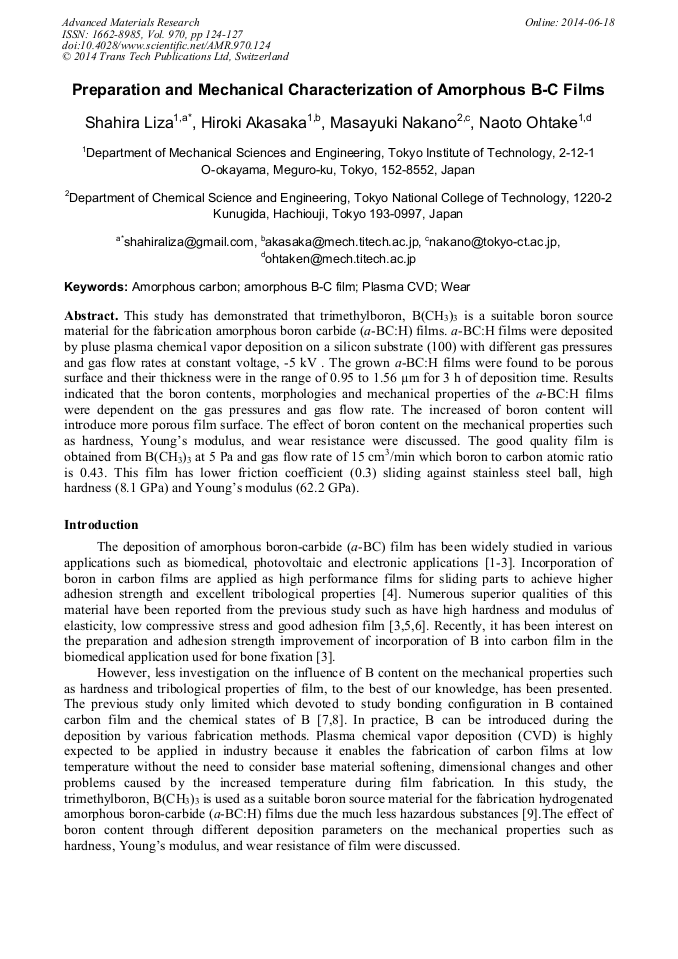

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 970)

Pages:

124-127

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.970.124

Citation:

Cite this paper

Online since:

June 2014

Authors:

Shahira Liza*, Hiroki Akasaka, Masayuki Nakano, Naoto Ohtake

Keywords:

Amorphous B-C Film, Amorphous Carbon, Plasma CVD, Wear

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] J. Podder, M. Rusop, T. Soga and T. Jimbo, Boron doped amorphous carbon thin films grown by R.F. PECVD under different partial pressure, Diamond Relat. Mater. 14, (2005) 1799-1804.

DOI: 10.1016/j.diamond.2005.07.020

Google Scholar

[2] T. S. Chen, S.E. Chiou and S. T. Shiue, The effect of different radio-frequency powers on characteristics of amorphous boron carbon thin film alloys prepared by reactive radio-frequency plasma enhanced chemical vapor deposition, Thin Solid Films 528, (2013).

DOI: 10.1016/j.tsf.2012.09.091

Google Scholar

[3] A. A. Ahmad and A. M. Alsaad, Adhesive B-doped DLC films on biomedical alloys used for bone fixation, Bull. Mater. Sci. 4, (2007) 301-308.

DOI: 10.1007/s12034-007-0050-5

Google Scholar

[4] H. Nakazawa, A. Sudoh, M. Suemitsu, K. Yasui, T. Itoh, T. Endoh, Y. Narita and M. Mashita, Mechanical and tribological properties of boron, nitrogen- coincorporated diamond-like carbon films prepared by reactive radio-frequency magnetron sputtering, Diamond Relat. Mater. 19 (2010).

DOI: 10.1016/j.diamond.2010.01.026

Google Scholar

[5] X. M. He, K.C. Walter and M. Nastasi, Plasma-immersion ion-processed boron-doped diamond-like carbon films, J. Phys.: Condens. Matter. 12, (2000) 183-189.

DOI: 10.1088/0953-8984/12/8/105

Google Scholar

[6] M. Tan, J. Zhu, J. Han, X. Han, L. Niu and W. Chen, Stress evolution of tetrahedral amorphous carbon upon boron incorporation, Scripta Mater. 57, (2007) 141-144.

DOI: 10.1016/j.scriptamat.2007.03.036

Google Scholar

[7] M. Chhowalla, Y. Yin, G. A. J. Amaratunga, D. R. McKenzie and T. Frauenheim, Boronated tetrahedral amorphous carbon, Diamond Relat. Mater. 6 (1997) 207-211.

DOI: 10.1016/s0925-9635(96)00760-1

Google Scholar

[8] M. Tan, J. Zhu, J. Han, W. Gao, A. Liu and Xiao Han, Raman characterization of boron doped tetrahedral amorphous carbon films, Mat. Res. Bull. 43 (2008) 453-462.

DOI: 10.1016/j.materresbull.2007.02.037

Google Scholar

[9] T. Tsubota, T. Fukui, T. Saito, K. Kusakabe, S. Morooka and H. Maeda, Effect of total reaction pressure on electrical properties of boron doped homoepitaxial (100) diamond films formed by microwave plasma-assisted chemical vapor deposition using trimethylboron, Diamond Relat. Mater., Vol. 9, (2000).

DOI: 10.1016/s0925-9635(99)00096-5

Google Scholar

[10] M. Rusop, S. Abdullah, J. Podder, T. Soga and T. Jimbo, Effect of gas pressure on the boron doped hydrogenated amorphous carbon thin films grown by radio frequency plasma-enhanced chemical vapor deposition, Surf. Rev. Lett. 13 (2006) 7-12.

DOI: 10.1142/s0218625x06007767

Google Scholar

[11] Y. Aoki and N. Ohtake, Tribological properties of segment-structured diamond-like carbon films, Tribo. Int. 37 (2004), 941-947.

DOI: 10.1016/j.triboint.2004.07.011

Google Scholar

[12] M. Takashima, T. Kuroda, M. Saito, N. Ohtake, M. Matsuo and Y. Iwamoto, Development of antiwear shim inserts utilizing segment-structured DLC coatings, JSME Int J., Ser. A. 3(6) (2009), 841-852.

DOI: 10.1299/jmmp.3.841

Google Scholar
