Numerical Calculation on the Influence of Missile Exhaust Plume with Mechanical Properties to the Double-Launch Box

Abstract:

The adverse impact of the exhaust plume on the inner wall of the vertical launch box and the former friable lid of the adjacent launch box is a common phenomenon, which causes the deformation or damage of the launch container. By using the three-dimensional unsteady numerical simulation, discrete phase model and multicomponent model, the change of the pressure and temperature with time on many monitoring sites are analyzed. The results show that the pressure and the temperature on the edge of the inner wall significantly rise over time after 0.2s. The pressure on the centerline of the inner wall rises over time after 0.2s but the temperature gradually decreases. The maximum pressure on the former friable lid of the adjacent launch box peaks at 0.54s. The conclusion can be regarded as a theoretical reference for engineering application.

You might also be interested in these eBooks

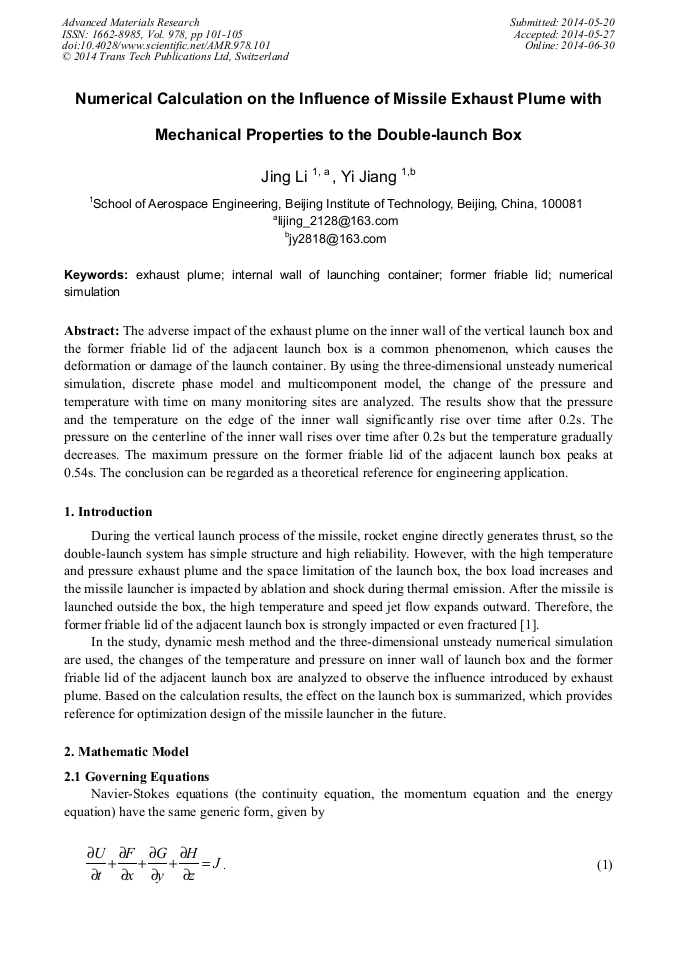

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 978)

Pages:

101-105

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.978.101

Citation:

Cite this paper

Online since:

June 2014

Authors:

Jing Li*, Yi Jiang

Keywords:

Exhaust Plume, Former Friable Lid, Internal Wall of Launching Container, Numerical Simulation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Wei Wang, Xuezhi Wang and Shaowei Liu. Numerical Simulation on the Influence of Missile Jet Flow on the Multi-launch Box Top．Computer Measurement & Control, 2013, 21（10）: 2747-2749, 2758.

Google Scholar

[2] Chengqing Zhao, Yi Jiang. The Dynamic of the Jet Flow. Beijing Institute of Technology Press (2006), in press.

Google Scholar

[3] Jiguang Hao, Yi Jiang and Shuyong Han. A New Dynamic Mesh Update Method and Its Application. Journal of Ballistics. 2007(2).

Google Scholar

[4] Yanli Ma, Yi Jiang, Jiguang Hao and Feng Yan: Simulation of the Influence of Missile Exhaust Plume to the Launching Equipment. Measuring Technology and Mechatronics Automation (ICMTMA), 2010 International Conference on, Volume: 3.

DOI: 10.1109/icmtma.2010.57

Google Scholar

[5] Shaowei Liu, Jiao Guan and Wei Wang. Research on Jet Flow Effecting Former Lid of the Missile Launch Box. Journal of Air Force Engineering University (Natural Science Edition). Vol. 14, No. 2, 2013(4).

Google Scholar
