Analysis of Effective Numerical Aperture in 2-D Photonic Crystal Waveguide

Abstract:

The effective numerical aperture calculation in two-dimensional Photonic crystal waveguide has been proposed. In this paper we present the analysis of ray optics refracted inside nanorods and at the boundaries between rods, which separates rod gap is much smaller than the incident wavelength assumed to reflect on the region. In operation, the resolving numerical aperture was compared with the finite difference time domain method via OptiFDTD software. Although numerical aperture mentioned above was found to be extremely close to fiber optics, a transmission passes though compartments of the rods are observed due to significant estimation of transmission and reflection of electric field. The compared simulation results will be discussed. By the aforementioned is that in the near future we will modify wave equation in periodic media of waveguide structures reached to the transverse electric equation of beam propagation in the two-dimensional Photonic crystal waveguide analysed.

You might also be interested in these eBooks

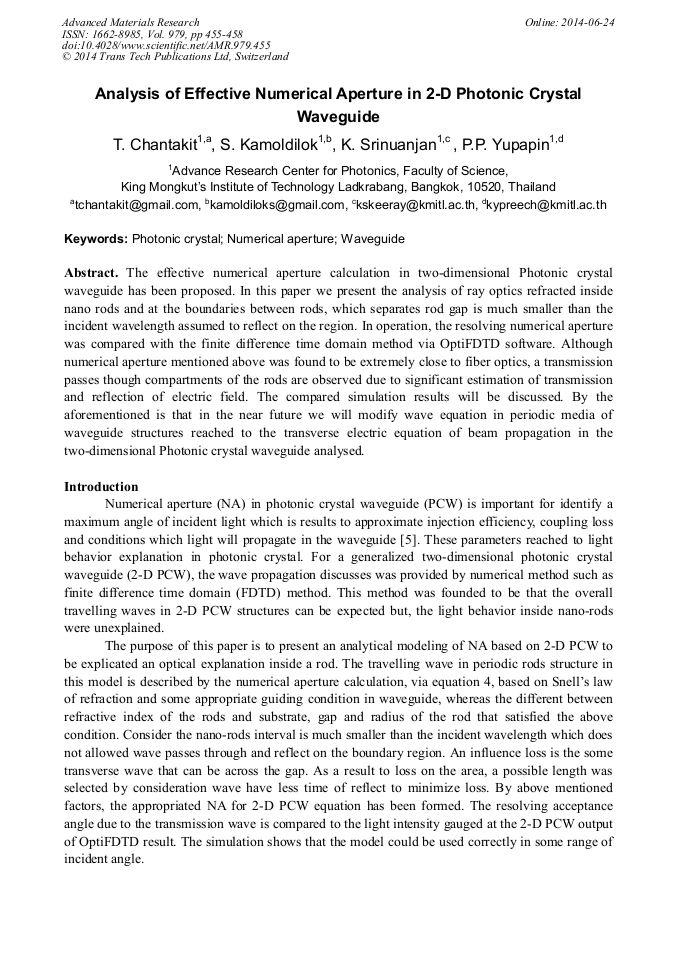

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 979)

Pages:

455-458

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.979.455

Citation:

Cite this paper

Online since:

June 2014

Authors:

T. Chantakit*, S. Kamoldilok, K. Srinuanjan, P.P. Yupapin

Keywords:

Numerical Aperture, Photonic Crystal (PC), Waveguide

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] N.A. Mortensen, J.R. Folken, P.M.W. Skovgaard, J. Broeng, Numerical Aperture of Single – Mode Photonic Crystal Fibers, IEEE Photonics Technology Letters 14 (2002) 1094-1096.

DOI: 10.1109/lpt.2002.1021980

Google Scholar

[2] Z.G. Kashani, N. Hojjat and M. Shahabadi. 2003, A Simple Method for Analyzing a 2 -D Photonic Crystal Waveguide, 17th lnternational Conference on Applied Electromagnetics and Communications (2003) 259-261.

DOI: 10.1109/icecom.2003.1291003

Google Scholar

[3] W.J. Wadsworth, R.M. Percival, G. Bouwmans, J.C. Knight, T.A. Birks, T.D. Hedley, P.J. Russell, Very High numerical Aperture Fibers, IEEE Photonics Technology Letters 16 (2004)843-845.

DOI: 10.1109/lpt.2004.823689

Google Scholar

[4] Y. Tsuji, Y. Morita and K. Hirayama, Photonic Crystal Waveguide Based on 2-D Photonic Crystal with Absolute Photonic Band Gap, IEEE Photonics Technology Letters 18 (2006) 2410-2412.

DOI: 10.1109/lpt.2006.885295

Google Scholar

[5] Y. Han, L. Hou, Y. Guo, S. Li, X. Zhao and Z. Song. 2009, Novel Technique for the Measurement of Photonic Crystal Fiber Numerical Aperture Properties, Communications and Photonics Conference and Exhibition (2009) 1-2.

DOI: 10.1364/acp.2009.wl6

Google Scholar
