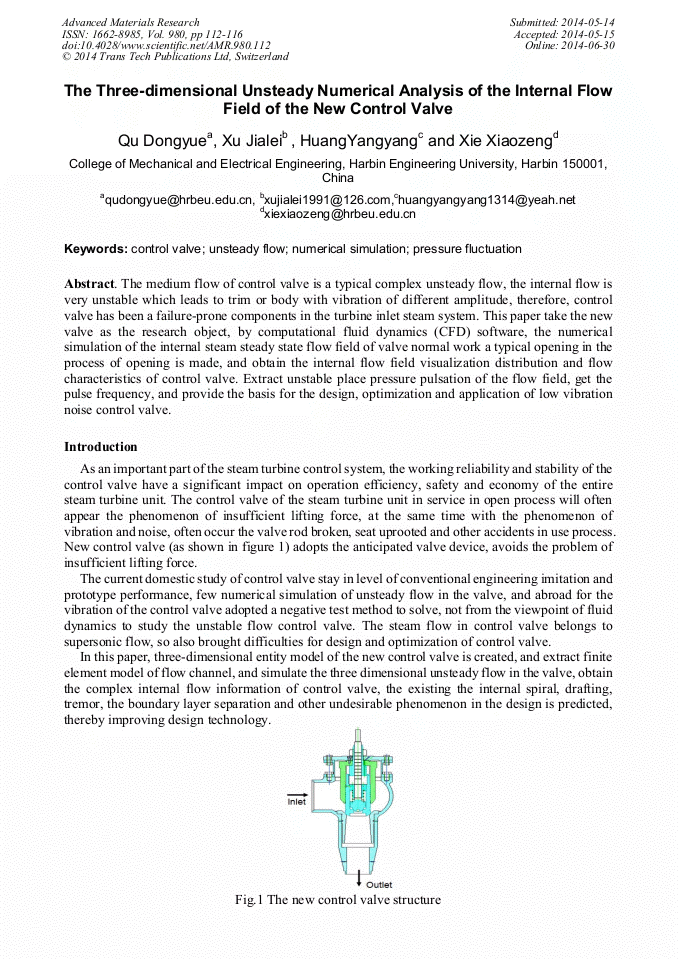

The Three-Dimensional Unsteady Numerical Analysis of the Internal Flow Field of the New Control Valve

Abstract:

The medium flow of control valve is a typical complex unsteady flow, the internal flow is very unstable which leads to trim or body with vibration of different amplitude, therefore, control valve has been a failure-prone components in the turbine inlet steam system. This paper take the new valve as the research object, by computational fluid dynamics (CFD) software, the numerical simulation of the internal steam steady state flow field of valve normal work a typical opening in the process of opening is made, and obtain the internal flow field visualization distribution and flow characteristics of control valve. Extract unstable place pressure pulsation of the flow field, get the pulse frequency, and provide the basis for the design, optimization and application of low vibration noise control valve.
