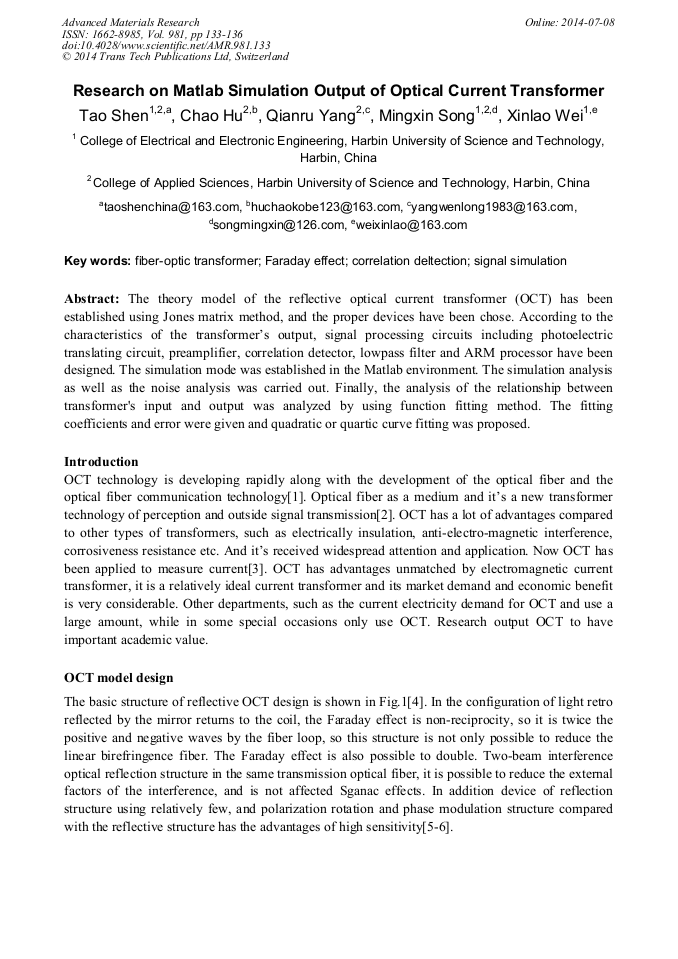

Research on Matlab Simulation Output of Optical Current Transformer

Abstract:

The theory model of the reflective optical current transformer (OCT) has been established using Jones matrix method, and the proper devices have been chose. According to the characteristics of the transformer’s output, signal processing circuits including photoelectric translating circuit, preamplifier, correlation detector, lowpass filter and ARM processor have been designed. The simulation mode was established in the Matlab environment. The simulation analysis as well as the noise analysis was carried out. Finally, the analysis of the relationship between transformer's input and output was analyzed by using function fitting method. The fitting coefficients and error were given and quadratic or quartic curve fitting was proposed.

• Periodical: Advanced Materials Research (Volume 981)
• Pages: 133-136
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.981.133
• Online since: July 2014
• Authors: Tao Shen*, Chao Hu, Qian Ru Yang, Ming Xin Song, Xin Lao Wei
• Keywords: Correlation Deltection, Faraday Effect, Fiber-Optic Transformer, Signal Simulation

References

[1] C. Li, X. Cui, I. Yamaguchi, Y. Masayuki, and Y. Toshihiko: IEEE Trans. Instr. Meas., Vol. 54 (2005), p.273.

[2] J. Dakin and B. Culshaw: Artech House, Vol. 4 (1997), p.437.

[3] H. d. Pei, J. Zu and H. Chen, in: A Novel Demodulation Method for the Sagnac Interferometric Fiber Current Sensor, IEEE, 4, 208. (2007).

[4] V. P. Gubin and V. A．Isaev: Lasers for Measurements and Information Transfer, (2005), p.98.

[5] J．H．Haywood, I．M．Bassett and M．Matar, in: Restoring reciprocity to the 3X3 Sagnac interferometer using the NIMI technique, 17th International Conference on Optical Fibre Transformers, 953(2005).

DOI: 10.1117/12.624415

[6] D. C. Ericksan: Power Apparaus and Systems, Vol. 99-3 (1980), p.105.
