Characteristics Research of New Type Silicon Magnetic Sensitivity Transistor Differential Structure by ATLAS

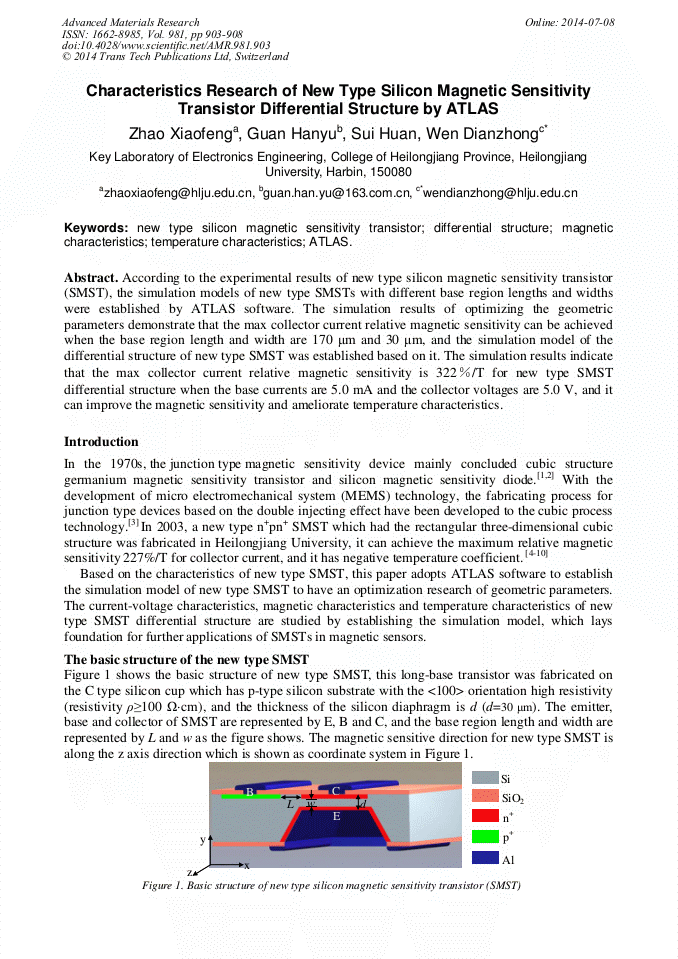

Abstract:

According to the experimental results of new type silicon magnetic sensitivity transistor (SMST), the simulation models of new type SMSTs with different base region lengths and widths were established by ATLAS software. The simulation results of optimizing the geometric parameters demonstrate that the max collector current relative magnetic sensitivity can be achieved when the base region length and width are 170 μm and 30 μm, and the simulation model of the differential structure of new type SMST was established based on it. The simulation results indicate that the max collector current relative magnetic sensitivity is 322％/T for new type SMST differential structure when the base currents are 5.0 mA and the collector voltages are 5.0 V, and it can improve the magnetic sensitivity and ameliorate temperature characteristics.

• Periodical: Advanced Materials Research (Volume 981)
• Pages: 903-908
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.981.903
• Online since: July 2014
• Authors: Xiao Feng Zhao, Han Yu Guan, Huan Sui, Dian Zhong Wen*
• Keywords: ATLAS, Differential Structure, Magnetic Characteristics, New Type Silicon Magnetic Sensitivity Transistor, Temperature Characteristics

References

[1] Victor Zieren, Bart P.M. Duydam. Magnetic-field-sensitive multicollector n-p-n transistors[J]. IEEE Transactions on Electron Devices, 1982, 29(1): 83-90.

DOI: 10.1109/t-ed.1982.20662

[2] Agnes Nagy, Hector Trujillo. Highly sensitive magneto transistor with new topology[J]. Sensors and Actuators, 1998, 65: 97-100.

DOI: 10.1016/s0924-4247(97)01625-7

[3] Wen Dianzhong, Mu Changsheng, Zhao Xiaofeng. Silicon magneto transistor by MEMS technology silicon transistor[J]. Journal of Transducer Technology, 2001, 20(5): 49-52.

[4] Wen Dianzhong. Study on laser etching emitter region-groove approach of magnetic-sensitive silicon transistor[J]. Chinese Journal of Lasers, 2003, 30(5): 454-456.

[5] Zhao Xiaofeng, Wen Dianzhong. Negative-resistance oscillations characteristics of a new type silicon magnetic sensitive transistor on MEMS [J]. Chinese Journal of Semiconductor, 2005, 26(6): 1214-1219.

[6] Tian Fengjun, Wen Dianzhong. New type of P+-I-N+ double injection magneto-sensitive difference circuit developted on SOI[J]. Journal of Transducer Technology. 2005, 24(4): 84-86.

[7] Zhao Xiaofeng, Wen Dianzhong. Fabrication–technology research of new type silicon magnetic-sensitive transistor[J]. Rare Metal Materials and Engineering, 2006, 35(12): 492-494.

[8] Wen Dianzhong. Study on a new magnetic-transistor on a SOI substrate[J]. Chinese Journal of Electron Devices, 2006, 29(3): 609-612.

[9] Zhao Xiaofeng, Li Lei, Wang ping, et al. Simulation research of the long-base silicon magnetic sensitive diode negative-resistance characteristics on the base of ATLAS[J]. Key Engineering Materials, 2013. 562-565: 465-470.

DOI: 10.4028/www.scientific.net/kem.562-565.465

[10] Zhao Xiaofeng, Wen Dianzhong, Pan Dongyang, et al. Differential structure and characteristics of a new-type silicon magnetic sensitivity transistor[J]. China Physics Letter , 2013, 30(8) : 088501(1-4).

DOI: 10.1088/0256-307x/30/8/088501
