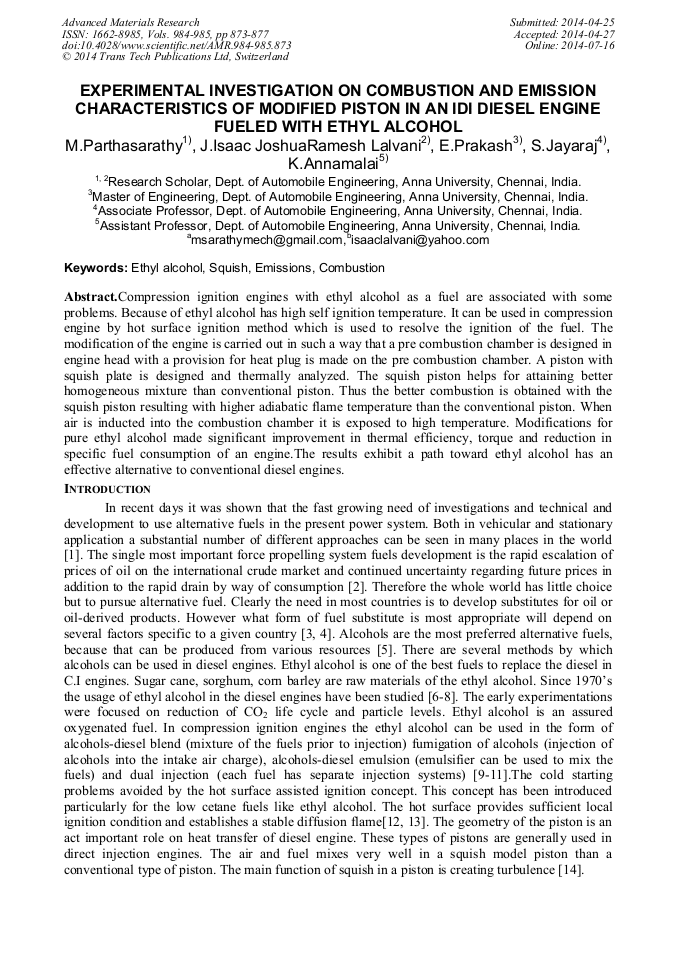

Experimental Investigation on Combustion and Emission Characteristics of Modified Piston in an IDI Diesel Engine Fueled with Ethyl Alcohol

Abstract:

Compression ignition engines with ethyl alcohol as a fuel are associated with some problems. Because of ethyl alcohol has high self-ignition temperature. It can be used in compression engine by hot surface ignition method which is used to resolve the ignition of the fuel. The modification of the engine is carried out in such a way that a pre combustion chamber is designed in engine head with a provision for heat plug is made on the pre combustion chamber. A piston with squish plate is designed and thermally analyzed. The squish piston helps for attaining better homogeneous mixture than conventional piston. Thus the better combustion is obtained with the squish piston resulting with higher adiabatic flame temperature than the conventional piston. When air is inducted into the combustion chamber it is exposed to high temperature. Modifications for pure ethyl alcohol made significant improvement in thermal efficiency, torque and reduction in specific fuel consumption of an engine. The results exhibit a path toward ethyl alcohol has an effective alternative to conventional diesel engines.

• Periodical: Advanced Materials Research (Volumes 984-985)
• Pages: 873-877
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.984-985.873
• Online since: July 2014
• Authors: M. Parthasarathy*, J. Isaac Joshua Ramesh Lalvani, E. Prakash, S. Jayaraj, K. Annamalai
• Keywords: Combustion, Emission, Ethyl Alcohol, Squish

References

[1] AC. Hansen, Q. Zhang, PWL. Lyne, Ethanol–diesel fuel blends; a review. Biores. Technol 96 (2005) 277–85.

[2] WA. Goetz, Utilizing neat methanol and heat plug ignition in DI Diesels: laboratory testing of a single and multi-cylinder engine. SAE paper(1994) 941044.

DOI: 10.4271/941044

[3] A Ramesh, B. Nagalingam, Gopalakrishnan KV, Investigations on the design and performance of two types of hot surface ignition engines. SAE paper(1992) 921632.

DOI: 10.4271/921632

[4] M. Parthasarathy, J. Isaac JoshuaRameshLalavani., B. Parthiban., K. Annamalai. Comparison of performance and emission characteristics of Tamanu, Mahua and Pongamia biodiesel in a DI diesel engine. Advanced Material Research 768 (2013) 218-225.

DOI: 10.4028/www.scientific.net/amr.768.218

[5] G. Nagarajan, AN. Rao,G. Renganarayanan, Emission and performance characteristics of neat ethanol fuelled in DI diesel engine. Int. J Ambient Energy 23 (2002) 149–58.

DOI: 10.1080/01430750.2002.9674883

[6] S. JabeshDinakar,B. Nagalingam, KV. Gopalakrishnan, Experimental investigations on the combustion of ethanol in a low heat rejection engine using different methods. SAE paper (1993) 930931.

DOI: 10.4271/930931

[7] EA. Ajav,B. Singh, TK. Bhattacharya, Performance of a stationary diesel engine using vapourized ethanol as supplementary fuel, Biomass Bioenergy 15 (1998) 493–502.

DOI: 10.1016/s0961-9534(98)00055-5

[8] Ozer Can, IsmetCelikten, NazımUsta, Effects of ethanol addition on performance and emissions of a turbocharged indirect injection Diesel engine running at different injection pressures. Energy Conversion and Management 45 (2004) 2429–2440.

DOI: 10.1016/j.enconman.2003.11.024

[9] A. Morton, M. Genoveva, S. Beyerlein,J. Steciak,M. Cherry, Aqueous ethanol–fueled catalytic ignition engine. SAE 1999-01-3267.

DOI: 10.4271/1999-01-3267

[10] M. Lapuerta, O. Armas, M. Herrerosjose, Emission from a diesel-bioethanol blend in an automotive diesel engine. Fuel 1 (2008) 25-31.

DOI: 10.1016/j.fuel.2007.04.007

[11] P. Kwanchareon, A. Luengnaruemitchai, Solubility of a diesel- biodiesel –ethanol blend, its fuel properties and its emission charactertic from diesel engine. Fuel 86 (2007) 25-31.

DOI: 10.1016/j.fuel.2006.09.034

[12] J. Isaac JoshuaRameshLalavani., M. Parthasarathy, A.V. Arun Kumar, K. Annamalai. Performance improvement on a single cylinder diesel engine powered with Pongamia biodiesel by incorporating swirling grooves. Advanced Material Research 768 (2013).

DOI: 10.4028/www.scientific.net/amr.768.199

[13] D. Cipolat, N. Bhana, Fuelling of a compression ignition engine on ethanol with DME as ignition promoter: effect of injector configuration. Fuel Process Technol. 90 (2009) 1107–13.

DOI: 10.1016/j.fuproc.2009.05.006

[14] R.M. Frank, J.B. Heywood, The effect of piston temperature on hydrocarbon emissions from a spark ignited direct-injection engine. SAE (1991) 910558.

DOI: 10.4271/910558

[15] Taymaz I. An experimental study of energy balance in low heat rejection diesel engine. Energy 31 (2006) 364–71.

DOI: 10.1016/j.energy.2005.02.004
