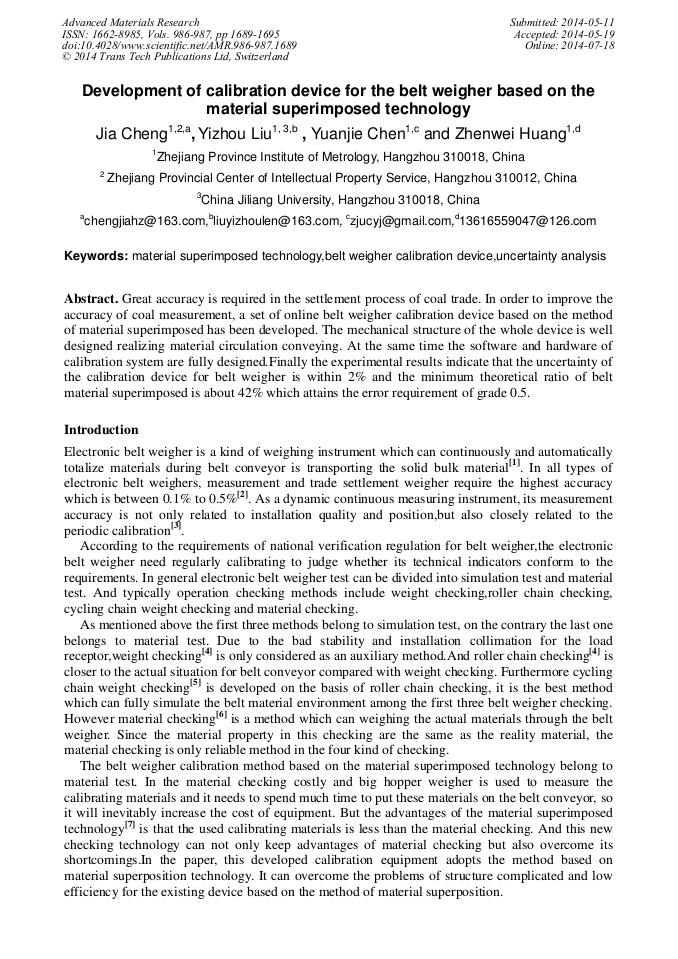

Development of Calibration Device for the Belt Weigher Based on the Material Superimposed Technology

Abstract:

Great accuracy is required in the settlement process of coal trade. In order to improve the accuracy of coal measurement, a set of online belt weigher calibration device based on the method of material superimposed has been developed. The mechanical structure of the whole device is well designed realizing material circulation conveying. At the same time the software and hardware of calibration system are fully designed.Finally the experimental results indicate that the uncertainty of the calibration device for belt weigher is within 2% and the minimum theoretical ratio of belt material superimposed is about 42% which attains the error requirement of grade 0.5.

• Periodical: Advanced Materials Research (Volumes 986-987)
• Pages: 1689-1695
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.986-987.1689
• Online since: July 2014
• Authors: Jia Cheng*, Yi Zhou Liu, Yuan Jie Chen, Zhen Wei Huang
• Keywords: Belt Weigher Calibration Device, Material Superimposed Technology, Uncertainty Analysis

References

[1] John Simpson: Canadian Weights and Measures and 0. 1% Certified Belt weighers[J]. Canadian Weights and Measures (Technical Paper), (2000).

[2] Caisheng Luo, Bingyi Zou, Jiawei Zhang: Electronic Belt weigher(China Metrology Press, Beijing, 1992) (in Chinese).

[3] Zijun Wang: Weighing Instruments Vol. 38 No. 7 (2009), pp.36-37. (in Chinese).

[4] Yuanbai Fang: Weighing Instruments Vol. 36 No. 3 (2007), pp.4-11. (in Chinese).

[5] Yuanfeng Chen. The Design of Cycling Chains Calibration Device of Electronic Belt weigher. Shanghai: East China University of Science and Technology, 2010. (in Chinese).

[6] Xiaoxia Lian, Qingmei Zhao: Industrial Measurement No. S1 (2003), pp.226-227. (in Chinese).

[7] Jiangsu SAIMO Group Co., ltd, A Kind of High Precision belt weighing device, China. Patent102012253. 2011. (in Chinese).

[8] Johansen, Mogens: Belt Weigher. European Patent Application, 1994, 4(13).

[9] JJG 195-2002. Verification Regulation for Continuous Totalizing Automatic Weighing Instrument. (in Chinese).

[10] Yunfei Ma: Measurement and Test Technology Vol. 37 No. 8 (2010), pp.65-68. (in Chinese).
