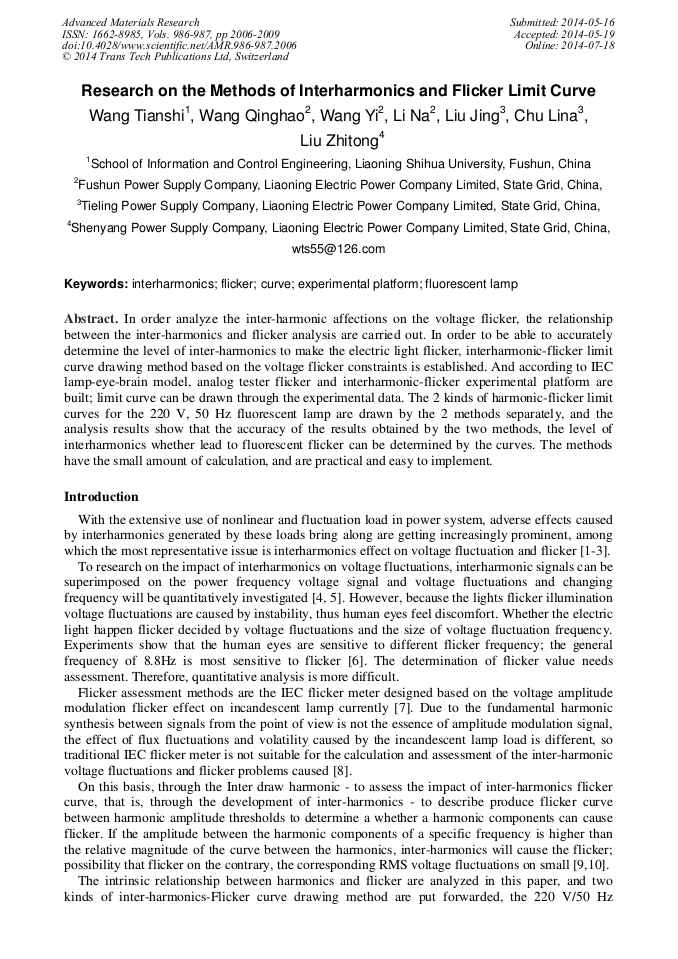

Research on the Methods of Interharmonics and Flicker Limit Curve

Abstract:

In order analyze the inter-harmonic affections on the voltage flicker, the relationship between the inter-harmonics and flicker analysis are carried out. In order to be able to accurately determine the level of inter-harmonics to make the electric light flicker, interharmonic-flicker limit curve drawing method based on the voltage flicker constraints is established. And according to IEC lamp-eye-brain model, analog tester flicker and interharmonic-flicker experimental platform are built; limit curve can be drawn through the experimental data. The 2 kinds of harmonic-flicker limit curves for the 220 V, 50 Hz fluorescent lamp are drawn by the 2 methods separately, and the analysis results show that the accuracy of the results obtained by the two methods, the level of interharmonics whether lead to fluorescent flicker can be determined by the curves. The methods have the small amount of calculation, and are practical and easy to implement.

• Periodical: Advanced Materials Research (Volumes 986-987)
• Pages: 2006-2009
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.986-987.2006
• Online since: July 2014
• Authors: Tian Shi Wang*, Qing Hao Wang, Yi Wang, Na Li, Jing Liu, Li Na Chu, Zhi Tong Liu
• Keywords: Curve, Experimental Platform, Flicker, Fluorescent Lamp, Interharmonics

References

[1] GB/T 24337-2009 Power quality Public power system interharmonics [S]. Standard of China, (2009).

[2] LIN Haixue. Origin of Interharmonic and Its Effects on Power System [J]. Power Supply Technologies And Applications， 2010，13(5)：1-6.

[3] HAO Jiangtao, Liu Nian, Xing Jinyu, at el. The Sources and harms of interharmnics in power system[J]．Sichuan Power Technologies，2005，2：11-14.

[4] ZHU Ke, YONG Jing, Thavatchai Tayjasanant. Quantifying Flicker Impact of Interharmonics[J]. Proceedings of the CSEE, 2008, 28（28）：113-118.

[5] HU Jie, CHEN Ni. The analysis of interharmonics affection on the voltage fluctuation[J]. Electrical power application, 2010, 29(5): 46-49.

[6] XIAO Xiangning. Power quality analysis and control [M]. Beijing: China Power Press, (2010).

[7] IEC Technical Subcommittee 77A. Electromagnetic compatibility (EMC)part 4：testing and measurement techniques，section 15：flickermeter-functional and design specifications (IEC 61000-4-15)[S]. Geneva, Switzerland：IEC，2003.

DOI: 10.1109/ieeestd.2011.6053977

[8] CHEN Han, LIU Huijin, LI Dalu. Establishment of Interharmonics-Flicker Curve Based on Peak Fluctuations[J]. Power System Technology, 2010, 34(9): 109-114.

[9] Tayjasanant T, Wang W, Li C, et al．Interharmonic-flicker curves[J]. IEEE Trans. on Power Delivery, 2005, 20(2): 1017-1024.

DOI: 10.1109/tpwrd.2004.838639

[10] YONG Jing, SUN Caixin, LI Jianbo, et al. Light Flicker Characteristics Caused by Interharmonics and Flicker Limit Curve[J]. Proceedings of the CSEE, 2008, 28（31）：88-93.
