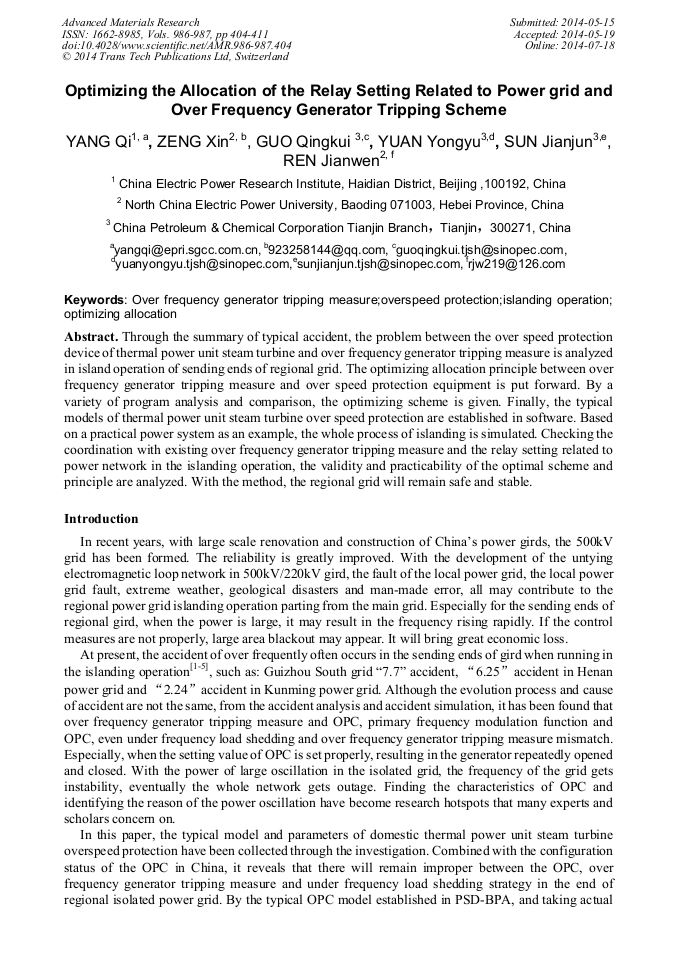

Optimizing the Allocation of the Relay Setting Related to Power Grid and over Frequency Generator Tripping Scheme

Abstract:

Through the summary of typical accident, the problem between the over speed protection device of thermal power unit steam turbine and over frequency generator tripping measure is analyzed in island operation of sending ends of regional grid. The optimizing allocation principle between over frequency generator tripping measure and over speed protection equipment is put forward. By a variety of program analysis and comparison, the optimizing scheme is given. Finally, the typical models of thermal power unit steam turbine over speed protection are established in software. Based on a practical power system as an example, the whole process of islanding is simulated. Checking the coordination with existing over frequency generator tripping measure and the relay setting related to power network in the islanding operation, the validity and practicability of the optimal scheme and principle are analyzed. With the method, the regional grid will remain safe and stable.

• Periodical: Advanced Materials Research (Volumes 986-987)
• Pages: 404-411
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.986-987.404
• Online since: July 2014
• Authors: Qi Yang*, Xin Zeng, Qing Kui Guo, Yong Yu Yuan, Jian Jun Sun, Jian Wen Ren
• Keywords: Islanding Operation, Optimizing Allocation, Over Frequency Generator Tripping Measure, Overspeed Protection

References

[1] Huang Zongjun, Chao Jian, Li Xingyuan, et al．High frequency phenomenon caused by fault occurred in southern part of Gui Yang power grid and simulation of over speed protection controller [J]．Power System Technology，2007，31(15)：26-32(in Chinese).

[2] Xu Yanhui, He Renmu, Kong Xiangyun．The effect of overspeed protection control on power system stability[J]．Modern Electric Power，2006，23(6)：6-9 (in Chinese).

[3] Cai Yunqing, Wang Lei, KipMorison, et a1．Current status and prospect of wide—area protection (dynamic stability control) technologies[J]. Power System Technology, 2004, 28(8): 20—25(in Chinese).

[4] Chen Xinghua, Luo Xiangdong, Wu Guobing, et al . A machine network coordination scheme of electromagnetic ring rejection for Guang Dong Zhong Zhu power grid[J]. Southern power system technology, 2008, 2(3): 56-59（in Chinese).

[5] FU Shuti. Summary on power system security problems on 2004 PES meeting and recommendation for developing defense measures s[J] . Automation of Electric Power Systems, 2005, 29 (8): 124（in Chinese).

[6] XUE Yusheng. The way from a simple contingency to system wide disaster: lessons from the eastern interconnection blackout in 2003. Automation of Elect ric Power Systems , 2003 , 27 (18) : 1-5(in Chinese).

[7] DAI Yiping , ZHAO Ting , GAO Lin. Research on characteristics of power system primary frequency control operating on power plants. Electric Power, 2006, 39 (11) : 37-41(in Chinese).
