The Ply Optimum Design of Composites Wind Turbine Blade Based on the Local Stability

Abstract:

Fluid-solid coupling calculations are performed on design of a wind turbine blade made by fiber reinforced polymer composites. The length of the blade is 46m, and it is for a 3MW-capacity power station. By the finite element method, the initial design on the ply is carried out under the case of static loads. Then, the eigenvalue buckling theory is used to analyze the stability. In the process of design, sections of the blade which have different stiffness have different ply orientation and thickness. Thus, the local structural stiffness is enhanced, and the local stability of the blade is improved. The results show that the buckling load coefficient increases from 3.3 to 4.2, and the weight of the blade reduces by 4.5%. The aim of optimization design on the wind turbine blade has been achieved.

You might also be interested in these eBooks

Material, Mechanical and Manufacturing Engineering II

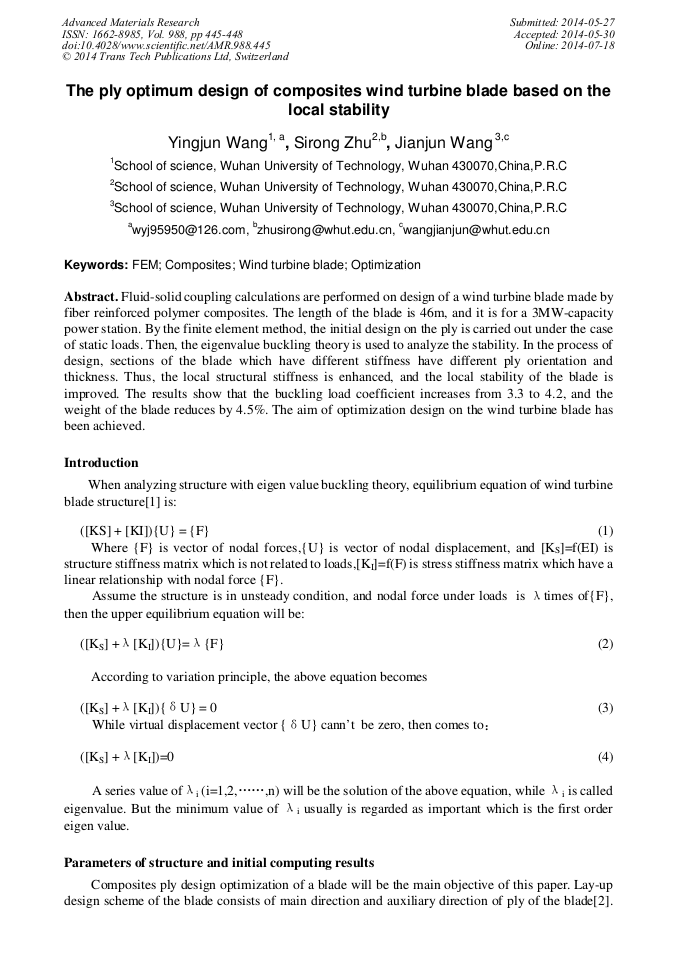

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 988)

Pages:

445-448

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.988.445

Citation:

Cite this paper

Online since:

July 2014

Authors:

Ying Jun Wang*, Si Rong Zhu, Jian Jun Wang

Keywords:

Composite, FEM, Optimization, Wind Turbine Blade

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Chaviaropoulos, P.K. Hansen. Investigating 3D and Rotational Effects on Wind Turbine Blades by Means of a Quasi-3D Navier-Stokes Solver, ASME Journal of Fluids Engineering, vol. 122, no. 2, 2004, pp.330-336.

DOI: 10.1115/1.483261

Google Scholar

[2] N.N. Serensen, J.A. Michelsen, S. Schreck, Navier Stokes Predictions of the NREL Phase VI Rotor in the NASA Ames 80ftx120ft Wind Tunnel, Wind Energy, 2002, vol. 5, pp.151-169.

DOI: 10.1002/we.64

Google Scholar

[3] J. Johansen, N.N. Serensen, Aerofoil Characteristics from 3D CFD Rotor Computations, Wind Energy, vol. 7, no. 4, pp.283-294.

DOI: 10.1002/we.127

Google Scholar

[4] Wang yingjun, Pei pengyu. Finite Element Analysis for Inherent Mode of Blade of Wind Turbine, Journal of HUST(Urban Science Edition). 2006. 12. 23(2): 44-46.

Google Scholar

[5] Shi yaoyao, Yan long, Yang kaiping. Molding Technology of Tape Winding and Tape Laying for Advanced Composites, Aeronautical Manufacturing Technology , 2010, 17: 32-36.

Google Scholar

[6] Germanischer Lloyd Industrial Services GmbH. Guideline for the Certification of Wind Turbines. (2010).

Google Scholar

[7] Li zheng, Qi lukuan, etc. Modeling with Parameters and Eigenvalue Buckling Analysis of Reinforced Concrete Arch Bridges, 2007, 24(4): 113-116.

Google Scholar
