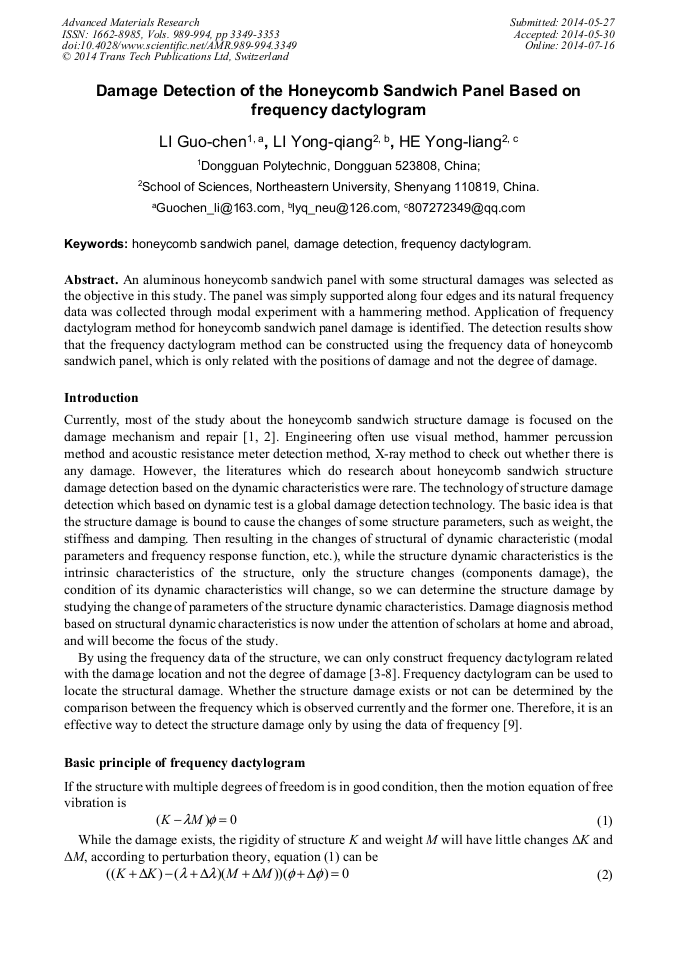

Damage Detection of the Honeycomb Sandwich Panel Based on Frequency Dactylogram

Abstract:

An aluminous honeycomb sandwich panel with some structural damages was selected as the objective in this study. The panel was simply supported along four edges and its natural frequency data was collected through modal experiment with a hammering method. Application of frequency dactylogram method for honeycomb sandwich panel damage is identified. The detection results show that the frequency dactylogram method can be constructed using the frequency data of honeycomb sandwich panel, which is only related with the positions of damage and not the degree of damage.

• Periodical: Advanced Materials Research (Volumes 989-994)
• Pages: 3349-3353
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.989-994.3349
• Online since: July 2014
• Authors: Guo Chen Li*, Yong Qiang Li, Yong Liang He
• Keywords: Damage Detection, Frequency Dactylogram, Honeycomb Sandwich Panel

References

[1] Foo C C, Seah L K and Chai G B: Composite Structure, (2008) No. 85, p.20–28.

[2] Dear JP, Lee H, Brown SA: INT J ENG SCI, (2005) No. 32, pp.130-154.

[3] Adams R D, Cawley P, et al: P I MECH ENG C-J MEC, Vol. 20 (1978) No. 2, pp.93-100.

[4] Cawley P and Adams R D: Journal of Strain Analysis, Vol. 14 (1979) No. 2, pp.49-57.

[5] Cawley P and Adams R D: Composite Materials, (1979) No. 13, pp.161-175.

[6] Hearn G and Testa R B: J J STRUCT ENG-ASCE, Vol. 117 (1991) No. 10, pp.3042-3061.

[7] Kaminski P C: Journal of Process Mechanical Engineering, (1995) No. 209, pp.117-123.

[8] Li Guo-qiang, Liang Yuan-sen and Chen Su-wen: Journal of Vibration, Measurement &Diagnosis, Vol. 25 (2005) No. 1, pp.8-12.

[9] MO Shuhua and Wang Chun-yuan: Acta Material Compositae Sinica, Vol. 26 (2009) No. 1, pp.96-99.
