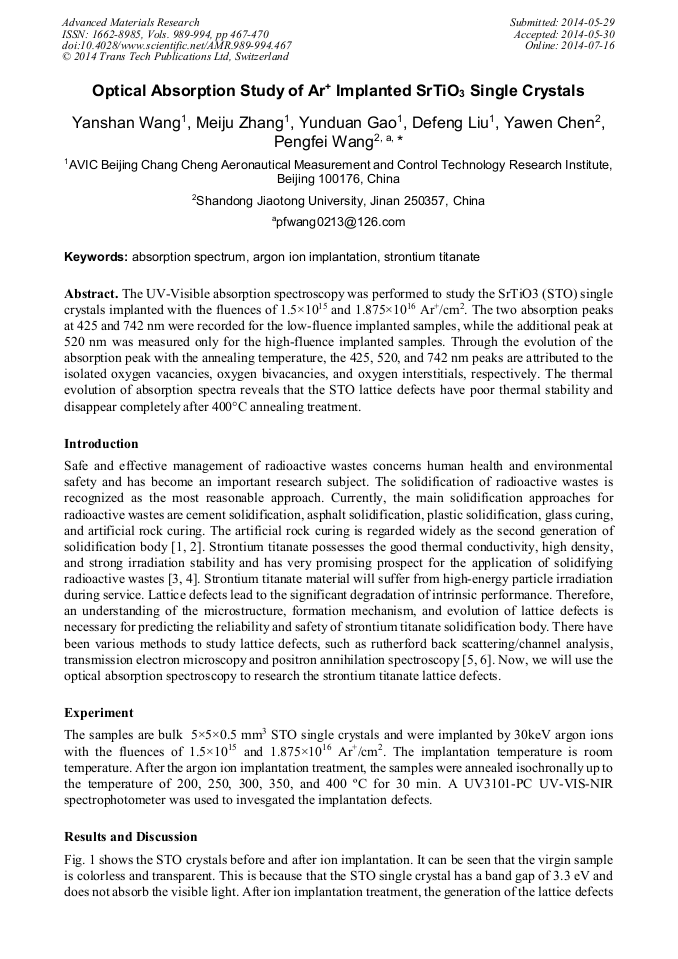

Optical Absorption Study of Ar⁺ Implanted SrTiO₃ Single Crystals

Abstract:

The UV-Visible absorption spectroscopy was performed to study the SrTiO3 (STO) single crystals implanted with the fluences of 1.5×10¹⁵ and 1.875×10¹⁶ Ar⁺/cm². The two absorption peaks at 425 and 742 nm were recorded for the low-fluence implanted samples, while the additional peak at 520 nm was measured only for the high-fluence implanted samples. Through the evolution of the absorption peak with the annealing temperature, the 425, 520, and 742 nm peaks are attributed to the isolated oxygen vacancies, oxygen bivacancies, and oxygen interstitials, respectively. The thermal evolution of absorption spectra reveals that the STO lattice defects have poor thermal stability and disappear completely after 400°C annealing treatment.

• Periodical: Advanced Materials Research (Volumes 989-994)
• Pages: 467-470
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.989-994.467
• Online since: July 2014
• Authors: Yan Shan Wang, Mei Ju Zhang, Yun Duan Gao, De Feng Liu, Ya Wen Chen, Peng Fei Wang*
• Keywords: Absorption Spectrum, Argon Ion Implantation, Strontium Titanate

References

[1] Chunxia Che, Yangcheng Teng, and Qiang Gui, Research and application status of radioactive waste solidification, Materials Review, Vol. 20, 2006 (2), P. 94-97.

[2] Jingxuan Jia, Rongjun Wu, Jiaoya Wang, et al, Research of alarm threshold value of noble gas monitoring channel in containment for PWR nuclear power plant, Radiation Protection, Vol. 33, 2013(2), P. 91-101.

[3] Ruizhu Zhang, Jie Yang, Dakao Yan, et al, Consolidation of high-level radioactive wastes into strontium by CS method, Materials Science Forum, Vol. 704-705 (2012), P. 625-630.

DOI: 10.4028/www.scientific.net/msf.704-705.625

[4] Ruizhu Zhang, Yongwei Gao, Jiansheng Wang, et al, Leaching properties of immobilization of HLW into SrTiO3 ceramics, Advanced Materials Research Vol. 332-334 (2011), P. 1807-1811.

DOI: 10.4028/www.scientific.net/amr.332-334.1807

[5] Y. Zhang, C. M. Wang, M. H. Engelhard, et al, Irradiation behavior of SrTiO3 at temperatures close to the critical temperature for amorphization, Journal of Applied Physics 100, 113533 (2006).

DOI: 10.1063/1.2399932

[6] M. Song, X. Guo, N. Ishikawa, et al, Formation of defect clusters in SrTiO3 crystal implanted with xenon ions, Materials Science Forum, Vol. 561-565 (2007), P. 1757-1760.

DOI: 10.4028/www.scientific.net/msf.561-565.1757

[7] D. J. Keeble, R. A. Mackie, W. Egger, et al, Identification of vacancy defects in a thin film perovskite oxide, Physical Review B 81, 064102 (2010).

DOI: 10.1103/physrevb.81.064102

[8] Shosuke Mochizuki, Fumito Fujishiro, Kenichiro Ishiwata, et al, Defect-induced optical absorption and photoluminescence of verneuil-grown SrTiO3 crystal, Physica B, 376-377 (2006), P. 813, 819.

DOI: 10.1016/j.physb.2005.12.204

[9] C. Lee, J. Destry, and J. L. Brebner, Optical absorption and transport in semiconducting SrTiO3, Physical Review B 11, 6(1975), P. 2299-2310.

[10] K. W. Blazey and H. Weibel, Optical absorption spectra of reduced transition-metal ion-doped SrTiO3, J. Phys. Chem. Solids Vol. 45, 8/9 (1984), P. 917-922.

DOI: 10.1016/0022-3697(84)90134-3

[11] C. M. Liu, Z.L. Yuan, Y.F. Ju, et al, Optical properties and microstructure of nitrogen-doped SrTiO3, Can. J. Phys. 86, 1345-1348 (2008).

DOI: 10.1139/p08-082

[12] Caisuke Kan, Takahito Terashima, Pyoko Kanda, et al, Blue-light emission at room temperature Ar-irradiated SrTiO3, Nature Materials, Vol. 4, 2005,P. 816-819.

DOI: 10.1038/nmat1498

[13] Tao Sun and Ming Lu, Band-structure modulation of SrTiO3 by hydrogenation for enhanced photoactivity, Appl. Phys. A (2012) 108: 171-175.

DOI: 10.1007/s00339-012-6867-9
