Test and Research on Controlled Cooling Technology for High Carbon High Silicon Wire Rod of S87B

Lei Zhang; Jian Lin Sun; Yan Li; Juan Cui; Fang Zhang

doi:10.4028/www.scientific.net/AMR.989-994.475

Paper Titles

Research on Chloride Appropriate Dosage for Incorporated Accelerated Corrosion
p.458

Effects of Feed Rate and pH Value on the Physical and Electrochemical Properties of LiNi_0.4Co_0.2Mn_0.4O₂ Cathode Material for Lithiumion Battery
p.462

Optical Absorption Study of Ar⁺ Implanted SrTiO₃ Single Crystals
p.467

Au Nanoparticles Prepared by Microwave Irradiation
p.471

Test and Research on Controlled Cooling Technology for High Carbon High Silicon Wire Rod of S87B
p.475

Simultaneous Determination of Ruthenium, Zinc and Zirconium in Waste Zirconium Dioxide Loaded Ruthenium-Zinc Catalysts Using Inductively Coupled Plasma Optical Emission Spectrometry
p.480

Propagation Characteristics of Seismic Waves Taking Stratigraphic Composition into Consideration
p.484

Effect of SO₂ on Mn-Mg-O_x Catalyst Treated by Non-Thermal Plasma for NO Catalytic Oxidation
p.490

Synthesis and Characterisation of a Novel Thermoresponsive Dendronized Monomer Bearing Azobenzene Moiety
p.494

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 989-994Test and Research on Controlled Cooling Technology...

Test and Research on Controlled Cooling Technology for High Carbon High Silicon Wire Rod of S87B

Abstract:

In this paper, critical temperature of phase transformation and continuous cooling transformation (CCT) curve of S87B were determined by hot uniaxial compression tests. At several of cooling speed, the microstructures were studied. The results indicate that the critical temperature of phase transformation become lower with cooling speed increasing, the min interlamellar spacing of pearlite was 0.125μm when the cooling speed was 4°C/s, the best cooling speed of phase transformation area was during (3-4)°C/s..

You might also be interested in these eBooks

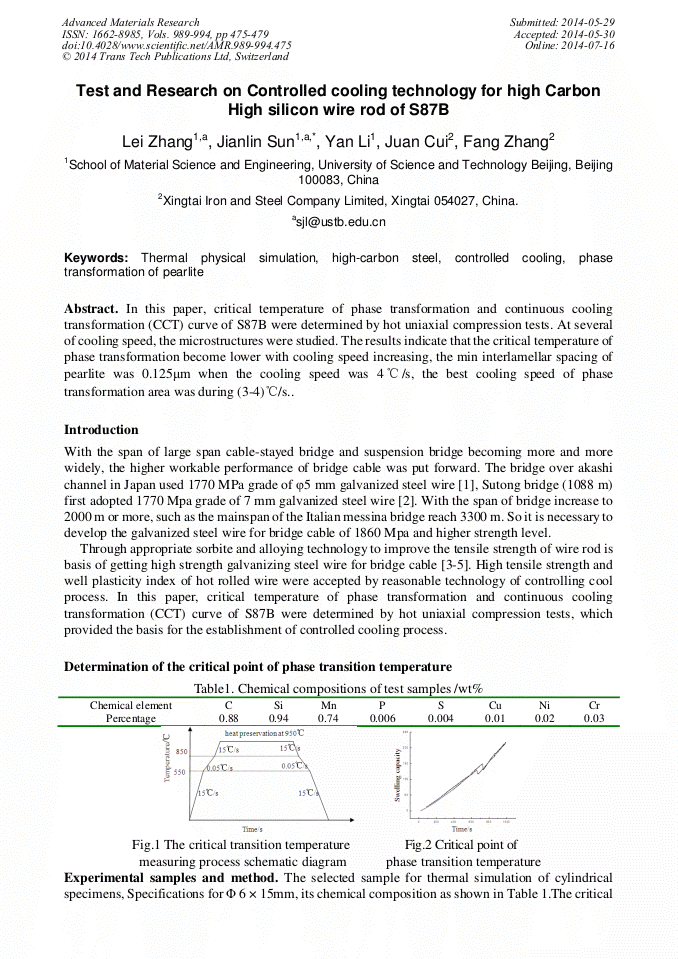

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 989-994)

Pages:

475-479

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.989-994.475

Citation:

Cite this paper

Online since:

July 2014

Authors:

Lei Zhang, Jian Lin Sun*, Yan Li, Juan Cui, Fang Zhang

Keywords:

Controlled Cooling, High-Carbon Steel, Phase Transformation of Pearlite, Thermal Physical Simulation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] T. Taru, N. Matuyama, T. Eguch et al: Structural Engineering International, 2002(3): 209-213.

Google Scholar

[2] Sang Chunming, Zhou Daiyi, Bai Bingdong. Steel Wire products, 2008(2): 11-15.

Google Scholar

[3] XU Wenlei', NING Shiwei. Steel Wire Products, 2010(2): 27-30.

Google Scholar

[4] Luan baifeng, Zhang da, Guo ning. Transaction of Materials and Heat treatment. 2011 (7): 78-82.

Google Scholar

[5] Zhang Weijun, Sun Jinmao. Steel Wire products, 2005, 31(3): 1-3.

Google Scholar

[6] M. Kazeminezhad, A. Karimi Taheri. Materials & Design, 2003, 24(6): 415-421.

Google Scholar

[7] N. Guo, B.F. Luan, Z. Zhou. Transaction of Materials and Heat treatment, 2012(4): 44-49.

Google Scholar

[8] K.K. Ray, D. Mondal. Acta Metallurgica et Materialia, 1991, 39(10): 2201-2208.

Google Scholar

[9] A.M. Elwazri, P. Wanjarab, S. Yue. Materials Characterization, 2005, 54(4-5): 473-478.

Google Scholar

[10] F.B. Pickering, B. Garbarz. Scripta Metallurgica, 1987, 21, 249-253.

Google Scholar

[11] N. Ridley. Metallurgical and Materials Transactions A, 1984, 16A, 1019-1036.

Google Scholar
