Distribution of Residual Deformation Effects in Shell Tubes from Ferritic-Martensitic Steels

Yuriy Perlovich; Margarita Isaenkova; Evgeniy Zharikov; Olga Krymskaya

doi:10.4028/www.scientific.net/AMR.996.124

Paper Titles

Influence of Morphological Texture on Stresses Analysis by X-Ray and Neutron Diffraction: Accounting for Extreme Morphologies
p.100

Modeling Methodology for Stress Determination by XRD in Polycrystalline Materials
p.106

New Modelling Approach for Micromechanical Modelling of the Elastoplastic Behaviour
p.112

Study of Mechanical Behaviour of Polycrystalline Materials at the Mesoscale Using High Energy X-Ray Diffraction
p.118

Distribution of Residual Deformation Effects in Shell Tubes from Ferritic-Martensitic Steels
p.124

Residual Stress Tensor Distributions in Cracked Austenitic Stainless Steel Measured by Two-Dimensional X-Ray Diffraction Method
p.128

Microscopic Stress and Strain Evolved in a Twinning-Induced Plasticity Fe-Mn-C Steel
p.135

Effects of Misalignment of Parallel Beam Optics on Thin Film Stress Analysis
p.141

New Developments of Multireflection Grazing Incidence Diffraction
p.147

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 996Distribution of Residual Deformation Effects in...

Distribution of Residual Deformation Effects in Shell Tubes from Ferritic-Martensitic Steels

Abstract:

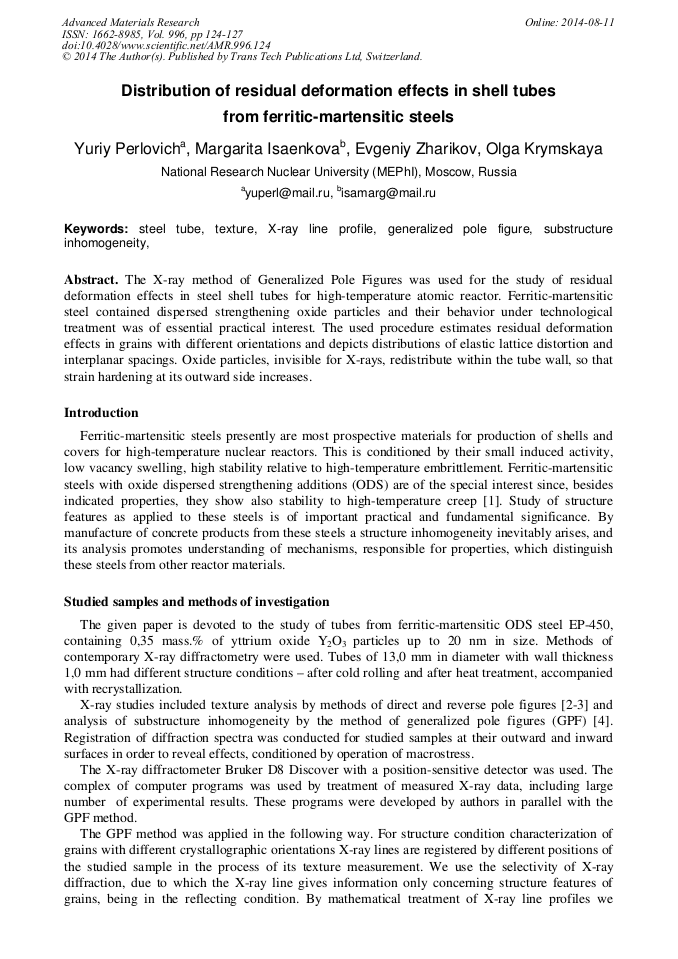

The X-ray method of Generalized Pole Figures was used by study of residual deformation effects in steel shell tubes for high-temperature atomic reactor. Ferritic-martensitic steel contained disperse strengthening oxide particles and their behavior under technological treatment was of essential practical interest. The used procedure estimates residual deformation effects in grains with different orientations and depicts distributions of elastic lattice distortion and interplanar spacings. Invisible oxide particles redistribute within the tube wall and strain hardening at its outer side is higher.

By email View Pdf

You have full access to the following eBook

Read eBook

Info:

Periodical:

Advanced Materials Research (Volume 996)

Pages:

124-127

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.996.124

Citation:

Cite this paper

Online since:

August 2014

Authors:

Yuriy Perlovich*, Margarita Isaenkova, Evgeniy Zharikov, Olga Krymskaya

Keywords:

Generalized Pole Figure, Steel Tube, Substructure Inhomogeneity, Texture, X-Ray Line Profile

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Citation:

* - Corresponding Author

References

[1] A. Steckmeyer, M. Praud, B. Fournier et al. – Journal of Nuclear Materials, 2010, v. 405, pp.95-100.

Google Scholar

[2] M. Borodkina, E. Spector, X-ray texture analysis of metals and alloys, Metallurgy (1981).

Google Scholar

[3] Yu.A. Perlovich, M.G. Isaenkova, S.N. Kaplii, Rapid Method of Mapping the Inverse Pole Figures, Industrial Laboratory, vol. 79, № 05 (2013) 27-30.

Google Scholar

[4] Yu. Perlovich, H. -J. Bunge, M. Isaenkova – Textures & Microstructures, 1997, v. 29, pp.241-266.

DOI: 10.1155/tsm.29.241

Google Scholar

[5] Warren B.E. X-ray diffraction. - Addison-Wesley Publishing Company, Inc., Reading, Massachussetts, 1969. - 381 p.

Google Scholar
