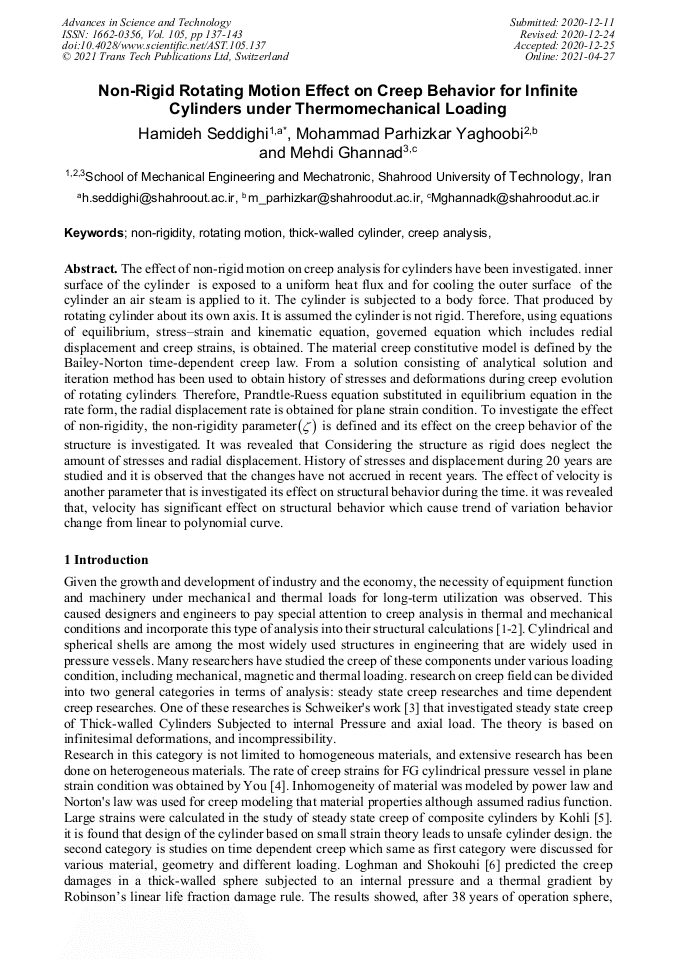

Non-Rigid Rotating Motion Effect on Creep Behavior for Infinite Cylinders under Thermomechanical Loading

Abstract:

The effect of non-rigid motion on creep analysis for cylinders have been investigated. inner surface of the cylinder is exposed to a uniform heat flux and for cooling the outer surface of the cylinder an air steam is applied to it. The cylinder is subjected to a body force. That produced by rotating cylinder about its own axis. It is assumed the cylinder is not rigid. Therefore, using equations of equilibrium, stress–strain and kinematic equation, governed equation which includes redial displacement and creep strains, is obtained. The material creep constitutive model is defined by the Bailey-Norton time-dependent creep law. From a solution consisting of analytical solution and iteration method has been used to obtain history of stresses and deformations during creep evolution of rotating cylinders. Therefore, Prandtle-Ruess equation substituted in equilibrium equation in the rate form, the radial displacement rate is obtained for plane strain condition. To investigate the effect of non-rigidity, the non-rigidity parameter (ζ) is defined and its effect on the creep behavior of the structure is investigated. It was revealed that Considering the structure as rigid does neglect the amount of stresses and radial displacement. History of stresses and displacement during 20 years are studied and it is observed that the changes have not accrued in recent years. The effect of velocity is another parameter that is investigated its effect on structural behavior during the time. it was revealed that, velocity has significant effect on structural behavior which cause trend of variation behavior change from linear to polynomial curve.

• Periodical: Advances in Science and Technology (Volume 105)
• Pages: 137-143
• DOI: https://doi.org/10.4028/www.scientific.net/AST.105.137
• Online since: April 2021
• Authors: Hamideh Seddighi*, Mohammad Parhizkar Yaghoobi, Mehdi Ghannad
• Keywords: Creep Analysis, Non-Rigidity, Rotating Motion, Thick-Walled Cylinder

References

[1] J.T. Boyle and J. Spence, Stress analysis for creep,, Elsevier, Southampton, (1983).

[2] M. Omidi Bidgoli, M. Arefi, A. Loghman, Thermoelastic behavior of FGM rotating cylinder resting on friction bed subjected to a thermal gradient and an external torque,, Australian Journal of Mechanical Engineering, pp.1-9, Vol. 16,‏ (2018).

DOI: 10.1080/14484846.2018.1552736

[3] M. Arefi, M. Nasr, A. Loghman, Creep analysis of the FG cylinders: Time-dependent non-axisymmetric behavior ,, Steel and Composite Structures, Vol. 28, pp.331-347, (2018).

[4] J. W. Schweiker and O. M. Sidebottom, Creep of thick-walled cylinders subjected an internal pressure and axial load,, SESA Spring Meeting held in Salt Lake City, (1965).

DOI: 10.1007/bf02328425

[5] L.H. You, H. Ou and Z.Y. Zheng, Creep deformations and stresses in thick-walled cylindrical vessels of functionally graded materials subjected to internal pressure,, Journal of Composite Structures, Vol. 78, p.285–291, (2007).

DOI: 10.1016/j.compstruct.2005.10.002

[6] G.Kohli, Creep analysis in thick composite cylinder considering large strain,, Journal of the Brazilian Society of Mechanical Sciences and Engineering,Vol. 3,pp.68-72, (2019).

DOI: 10.1007/s40430-019-2152-6

[7] A. Loghman, N. Shokouhi, Creep damage evaluation of thick-walled spheres using a long-term creep constitutive model,, Journal of Mechanical Science and Technology, Vol. 23, pp.2577-2582, (2009).

DOI: 10.1007/s12206-009-0631-x

[8] M. Moradi, A. Loghman, Non Axisymmetric time dependent creep analysis in a thick-walled cylinder due to termo-mechanical loading,, Journal of Solid Mechanic, Vol 10, pp.845-863, (2018).

[9] M. Davoudi Kashkoli, K. Nader Tahan and M. Zamin-Nejad, Time-dependent thermo-creep analysis of rotating FGM thick-walled cylindrical pressure vessels under heat flux,, International Journal of Engineering Science, Vol. 82, pp.222-237, (2014).

DOI: 10.1016/j.ijengsci.2014.06.006

[10] J. Ahmad, M. A. Wahab, Thermoelastic and creep analysis of a functionally graded rotating cylindrical vessel with internal heat generation,, World Journal of Engineering, Vol. 12, pp.517-532, (2015).

DOI: 10.1260/1708-5284.12.6.517

[11] A. Loghman and V. Atabakhshian, Semi-analytical solution for Time-dependent Creep analysis of rotating cylinders made of anisotropic exponentially graded material (EGM) ,, Journal of Soild Mechanics Mechanics, Vol. 4, pp.313-326, (2012).

[12] M. Parhizkar Yaghoobi, M. Ghannad, An analytical solution for heat conduction of FGM cylinders with varying thickness subjected to non-uniform heat flux using a first-order temperature theory and perturbation technique,, International Communications in Heat and Mass Transfer, Vol. 116, pp.1-16, (2020).

DOI: 10.1016/j.icheatmasstransfer.2020.104684

[13] M. Ghannad, M. Parhizkar Yaghoobi, Stress and active control analysis of functionally graded piezoelectric material cylinder and disk under electro-thermo-mechanical loading,, Journal of Intelligent Material Systems and Structures, Vol. 29, pp.924-937, (2017).

DOI: 10.1177/1045389x17721374

[14] M. Ghannad, M. Parhizkar Yaghoobi, 2D thermo elastic behavior of a FG cylinder under thermomechanical loads using a first order temperature theory,, International Journal of Pressure Vessels and Piping, Vol. 149, pp.75-92, (2017).

DOI: 10.1016/j.ijpvp.2016.12.002

[15] Penny RK., Marriott DL., 1995, Design for creep, London, Chapman & Hall.
