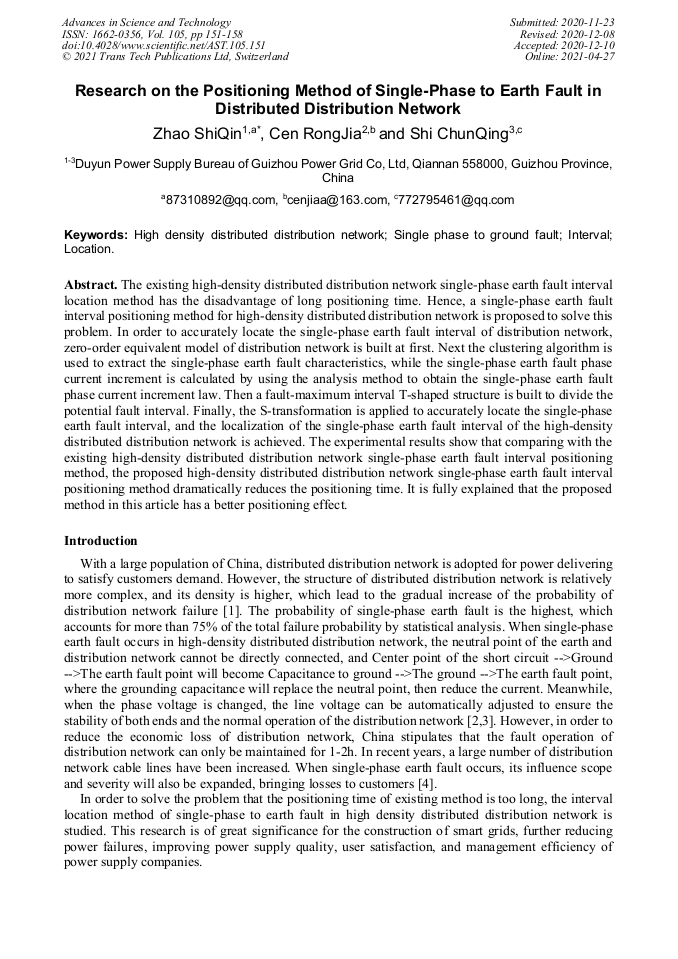

Research on the Positioning Method of Single-Phase to Earth Fault in Distributed Distribution Network

Abstract:

The existing high-density distributed distribution network single-phase earth fault interval location method has the disadvantage of long positioning time. Hence, a single-phase earth fault interval positioning method for high-density distributed distribution network is proposed to solve this problem. In order to accurately locate the single-phase earth fault interval of distribution network, zero-order equivalent model of distribution network is built at first. Next the clustering algorithm is used to extract the single-phase earth fault characteristics, while the single-phase earth fault phase current increment is calculated by using the analysis method to obtain the single-phase earth fault phase current increment law. Then a fault-maximum interval T-shaped structure is built to divide the potential fault interval. Finally, the S-transformation is applied to accurately locate the single-phase earth fault interval, and the localization of the single-phase earth fault interval of the high-density distributed distribution network is achieved. The experimental results show that comparing with the existing high-density distributed distribution network single-phase earth fault interval positioning method, the proposed high-density distributed distribution network single-phase earth fault interval positioning method dramatically reduces the positioning time. It is fully explained that the proposed method in this article has a better positioning effect.

• Periodical: Advances in Science and Technology (Volume 105)
• Pages: 151-158
• DOI: https://doi.org/10.4028/www.scientific.net/AST.105.151
• Online since: April 2021
• Authors: Shi Qin Zhao*, Rong Jia Cen, Chun Qing Shi
• Keywords: High Density Distributed Distribution Network, Interval, Location, Single Phase to Ground Fault

References

[1] Fan Songhai, Chen Kun, Xiao Xianyong, et al. Residual current transfer arc elimination method of single-phase ground fault of distribution network [J]. Electrical measurement and instrumentation, 2019, 56(11): 20-25.

[2] Hu Funian, ZHANG Shuai, GE Miaomao. Study on Fault location of closed Distribution Network based on FTU [J]. Control engineering, 2019, 26 (5): 864-871.

[3] Su Xiaoqing, YU Rui, Bai Jie, et al. Fault line selection method of resonant grounding system using transient zero-sequence current Waveform Characteristics [J]. Power Capacitors and Reactive compensation, 209, 40(4):106-111.

DOI: 10.1109/iccnea57056.2022.00069

[4] Zhang Nai-gang, ZHANG Jia-sheng, ZHENG Chang-ming, et al. Locating method of small current grounding fault based on the similarity of amplitude distribution of zero sequence current [J]. Power System Protection and Control, 2018, 46(13) : 120-125.

[5] Qi Xiaomin, PEI Wei, LI Luyang, et al. Fault Characteristics analysis of multi-voltage grade AC/DC hybrid distribution Network based on DAB DC transformer [J]. Chinese Journal of Electrical Engineering, 2019, 39(6): 1582-1591.

[6] Ma Wei, QIU Yutao, DING Dong, et al. Single-phase ground fault location scheme based on damped least square method [J]. Power Grid Technology, 2018, 42(9) : 3049-3054.

[7] TANG Y. Anomaly Inference Based on Heterogeneous Data Sources in an Electrical Distribution System [D]. Houghton, MI, USA: Michigan Technological University, (2018).

[8] Li Ke, Suixiaona, Zhang Jun, et al. Research on fault line Selection Method of mine power grid [J]. Industrial and Mining Automation, 2008, 44(5): 70-75.

[9] Fu Qiang, Xiang Hongwei, Liu Biao, et al. Operational inspection Risk Assessment of distributed Renewable Energy Access to distribution Network [J]. Renewable Energy, 2019, 37(7): 1001-1006.

[10] Peng Nan, Yang Zhi, LIANG Rui, et al. A Distributed traveling wave ranging method for Half-wavelength Transmission Lines [J].Journal of Electrical Machinery and Control, 2019, 23(08):35-42.

[11] Song Shiheng, MU Yunfei, Meng Xianjun, et al. Economic Dispatching Method of distribution Network -- Water Distribution Network for distributed Power Consumption [J].Automation of Electric Power Systems, 19, 43(11) : 95-103.

[12] Huang Zhiqiu, Shi Wenchao, Li Xiaoming, et al. Vulnerability Analysis of distributed power distribution network Nodes [J].Industrial Safety and Environmental Protection, 209, 45(6) : 34-39.

[13] Jia Ke, Li Shuo, Yang Zhe, et al. Research on Fault location of Distribution Network based on Bayesian Compressed Sensing Theory [J].Chinese Journal of Electrical Engineering, 2019, 39(12) : 3475-3485.

[14] Miao Hui, Ding Xiaoqun, Ye Chenhui, et al. Fault Recovery algorithm of Distributed power distribution Network based on graph Theory and OBDD [J].New Technology of Electrical Energy, 2018, 37(9) : 59-66.

[15] Gao Zhanjun, LI Siyuan, PENG Zhengliang, et al. Fault location method of distribution network Based on network tree diagram and Improved D-S evidence Theory [J].Electric Power Automation Equipment, 2008, 38(6) : 65-71.

[16] Zhang Wenqing, Liu Feng, Fan Shangming, et al. Research on voltage quality Hierarchical and Coordinated Control Strategy of DISTRIBUTED Generation distribution Network [J].Electronic Design Engineering, 2019, 27(11):100-105.
