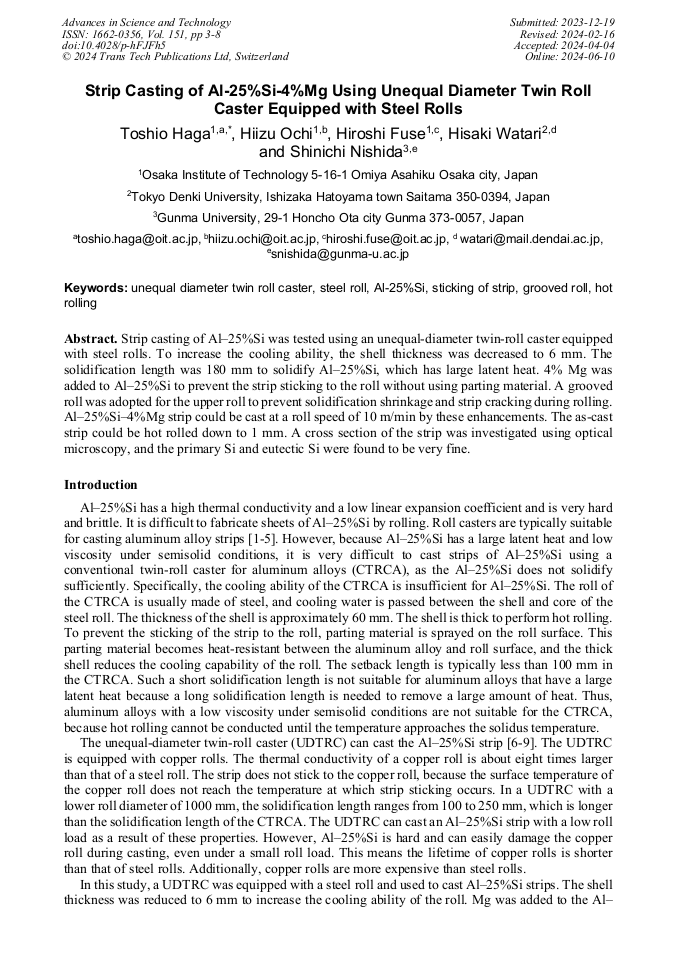

Strip Casting of Al-25%Si-4%Mg Using Unequal Diameter Twin Roll Caster Equipped with Steel Rolls

Abstract:

Strip casting of Al–25%Si was tested using an unequal-diameter twin-roll caster equipped with steel rolls. To increase the cooling ability, the shell thickness was decreased to 6 mm. The solidification length was 180 mm to solidify Al–25%Si, which has large latent heat. 4% Mg was added to Al–25%Si to prevent the strip sticking to the roll without using parting material. A grooved roll was adopted for the upper roll to prevent solidification shrinkage and strip cracking during rolling. Al–25%Si–4%Mg strip could be cast at a roll speed of 10 m/min by these enhancements. The as-cast strip could be hot rolled down to 1 mm. A cross section of the strip was investigated using optical microscopy, and the primary Si and eutectic Si were found to be very fine.

You might also be interested in these eBooks

10th International Conference on Advanced Materials, Mechanics and Structural Engineering (AMMSE)

View Preview

Info:

Periodical:

Advances in Science and Technology (Volume 151)

Pages:

3-8

DOI:

https://doi.org/10.4028/p-hFJFh5

Citation:

Cite this paper

Online since:

June 2024

Authors:

Toshio Haga*, Hiizu Ochi, Hiroshi Fuse, Hisaki Watari, Shinichi Nishida

Keywords:

Al-25%Si, Grooved Roll, Hot Rolling, Steel Roll, Sticking of Strip, Unequal Diameter Twin Roll Caster

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Y. Li, C. He, J. Li, Z. Wang, D. Wu, G. Xu: A novel approach to improve the microstructure and mechanical properties of Al-Mg-Si aluminum alloys during twin-roll casting, Metals 13,1713(2020).

DOI: 10.3390/ma13071713

Google Scholar

[2] R. Cook, P. G. Groock, P. M. Thomas, D. V. Edmonds, J. D. Hunt: Development of the twin-roll casting process, J. Mater. Process. Technol. 55(2) (1995) 76-84.

DOI: 10.1016/0924-0136(95)01788-7

Google Scholar

[3] S.Hamers, D.Smith, C.Romanowski, G.Yildizbayrak, B.Taraglio, Twin roll casting of aluminum at 2.5mm gauge. Production experience and process improvement, Light Met. (1999)931-937.

Google Scholar

[4] P.Y. Menet, R.Cayol, J.Moriceau, Pechiney Jumbo 3CM 'TM' start-up of the Neu-Brisach thin strip caster, Light Met. (1997) 753-756.

Google Scholar

[5] O.Daland, A.B. Espedal, M.L. Nedreberg, I.Alvestad, Thin gage twin-roll casting, process capabilities and product quality, Light Met. (1997) 745-752.

DOI: 10.1007/978-3-319-48228-6_125

Google Scholar

[6] T.H. Nguyen, R.Song, Y.Harada, S.Kumai: Color Metallography of Characteristic Microstructure in High-Speed Twin-Roll Cast Al-Mn-Si Alloy Strip Using Weck's Reagent, Mater. Trans. 61(2020)225-2262.

DOI: 10.2320/matertrans.l-m2020856

Google Scholar

[7] T. Haga, H. Inui, H. Watari, S. Kumai: Casting of Al–Si hypereutectic aluminum alloy strip using an unequal diameter twin roll caster, J. Mater. Process. Technol. 191(2007) 238-241.

DOI: 10.1016/j.jmatprotec.2007.03.012

Google Scholar

[8] T.Haga, K.Takahashi: Aluminum Alloy Strips Casting Using an Unequal Diameter Twin Roll Caster, Material Science Forum, 449 (2004) 145-149.

DOI: 10.4028/www.scientific.net/msf.449-452.145

Google Scholar

[9] T. Haga, K. Yamazaki, H. Watari, S. Nishida: Reduction of Surface Cracks at Al-Mg Alloy Strip Surface Cast by Unequal Diameter Twin Roll Caster, Material Science Forum, 1007 (2020) 6-11.

DOI: 10.4028/www.scientific.net/msf.1007.6

Google Scholar

[10] T.Haga，M.Matsuo，D.Kunigo，Y.Hatanaka，R.Nakamura，H.Watari，S.Kumai : Roll casting of 5182 aluminum alloy, J. Achiev. Mater. Manuf. Eng. 37 (2009) 172-179.

Google Scholar
