Medium Span Footbridge System Using UHPC

Abstract:

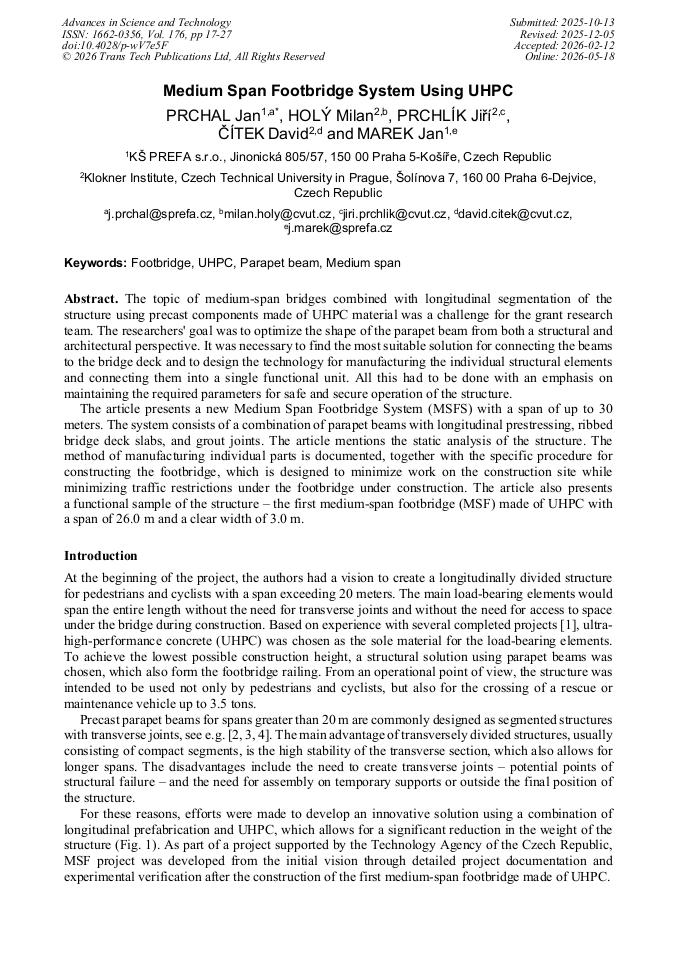

The topic of medium-span bridges combined with longitudinal segmentation of the structure using precast components made of UHPC material was a challenge for the grant research team. The researchers' goal was to optimize the shape of the parapet beam from both a structural and architectural perspective. It was necessary to find the most suitable solution for connecting the beams to the bridge deck and to design the technology for manufacturing the individual structural elements and connecting them into a single functional unit. All this had to be done with an emphasis on maintaining the required parameters for safe and secure operation of the structure.The article presents a new Medium Span Footbridge System (MSFS) with a span of up to 30 meters. The system consists of a combination of parapet beams with longitudinal prestressing, ribbed bridge deck slabs, and grout joints. The article mentions the static analysis of the structure. The method of manufacturing individual parts is documented, together with the specific procedure for constructing the footbridge, which is designed to minimize work on the construction site while minimizing traffic restrictions under the footbridge under construction. The article also presents a functional sample of the structure – the first medium-span footbridge (MSF) made of UHPC with a span of 26.0 m and a clear width of 3.0 m.

• Periodical: Advances in Science and Technology (Volume 176)
• Pages: 17-27
• DOI: https://doi.org/10.4028/p-wV7e5F
• Online since: May 2026
• Authors: Jan Prchal*, Milan Holý, Jiří Prchlík, David Čítek, Jan Marek
• Keywords: Footbridge, Medium Span, Parapet Beam, UHPC
