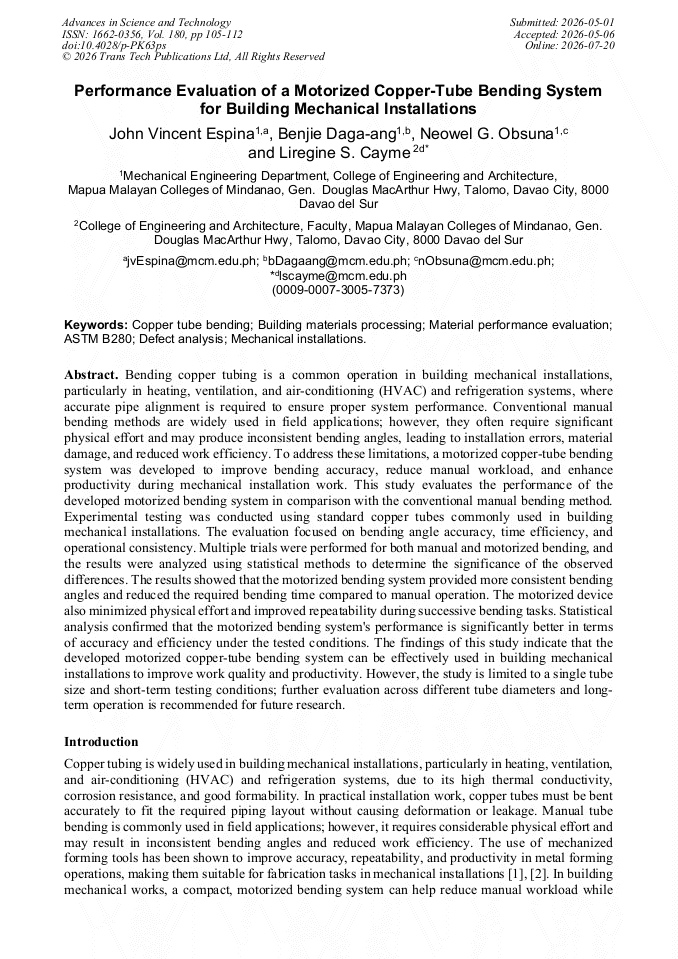

Performance Evaluation of a Motorized Copper-Tube Bending System for Building Mechanical Installations

Abstract:

Bending copper tubing is a common operation in building mechanical installations, particularly in heating, ventilation, and air-conditioning (HVAC) and refrigeration systems, where accurate pipe alignment is required to ensure proper system performance. Conventional manual bending methods are widely used in field applications; however, they often require significant physical effort and may produce inconsistent bending angles, leading to installation errors, material damage, and reduced work efficiency. To address these limitations, a motorized copper-tube bending system was developed to improve bending accuracy, reduce manual workload, and enhance productivity during mechanical installation work. This study evaluates the performance of the developed motorized bending system in comparison with the conventional manual bending method. Experimental testing was conducted using standard copper tubes commonly used in building mechanical installations. The evaluation focused on bending angle accuracy, time efficiency, and operational consistency. Multiple trials were performed for both manual and motorized bending, and the results were analyzed using statistical methods to determine the significance of the observed differences. The results showed that the motorized bending system provided more consistent bending angles and reduced the required bending time compared to manual operation. The motorized device also minimized physical effort and improved repeatability during successive bending tasks. Statistical analysis confirmed that the motorized bending system's performance is significantly better in terms of accuracy and efficiency under the tested conditions. The findings of this study indicate that the developed motorized copper-tube bending system can be effectively used in building mechanical installations to improve work quality and productivity. However, the study is limited to a single tube size and short-term testing conditions; further evaluation across different tube diameters and long-term operation is recommended for future research.

• Periodical: Advances in Science and Technology (Volume 180)
• Pages: 105-112
• DOI: https://doi.org/10.4028/p-PK63ps
• Online since: July 2026
• Authors: John Vincent Espina, Benjie Daga-Ang, Neowel G. Obsuna, Liregine S. Cayme*
• Keywords: ASTM B280, Building Materials Processing, Copper Tube Bending, Defect Analysis, Material Performance Evaluation, Mechanical Installations

References

[1] ASTM International, ASTM B280-20: Standard Specification for Seamless Copper Tube for Air-Conditioning and Refrigeration Field Service, West Conshohocken, PA, USA, 2020.

DOI: 10.1520/b1018-21

[2] ASHRAE, ASHRAE Handbook — HVAC Systems and Equipment, Atlanta, GA, USA: American Society of Heating, Refrigerating and Air-Conditioning Engineers, 2020.

[3] Copper Development Association, Copper Tube Handbook, New York, NY, USA, 2019.

[4] W. J. Whitman, W. M. Johnson, J. A. Tomczyk, and E. Silberstein, Refrigeration and Air Conditioning Technology, 8th ed. Boston, MA, USA: Cengage Learning, 2019.

[5] M. P. Groover, Fundamentals of Modern Manufacturing: Materials, Processes, and Systems, 6th ed. Hoboken, NJ, USA: Wiley, 2020.

[6] S.Kalpakjian and S. R. Schmid, Manufacturing Engineering and Technology, 8th ed. Pearson, 2021.

[7] R.G. Budynas and J. K. Nisbett, Shigley's Mechanical Engineering Design, 11th ed. New York, NY, USA: McGraw-Hill, 2020.

[8] R.C. Hibbeler, Mechanics of Materials, 10th ed. Pearson, 2018.

[9] F.P. Beer, E. R. Johnston Jr., J. T. DeWolf, and D. F. Mazurek, Mechanics of Materials, 8th ed. New York, NY, USA: McGraw-Hill, 2019.

[10] D. C. Montgomery, Design and Analysis of Experiments, 9th ed. Hoboken, NJ, USA: Wiley, 2017.

[11] W. J. Conover, Practical Nonparametric Statistics, 3rd ed. New York, NY, USA: Wiley, 2018.

[12] R. E. Walpole, R. H. Myers, S. L. Myers, and K. Ye, Probability and Statistics for Engineers and Scientists, 10th ed. Pearson, 2018.

[13] Dassault Systèmes, SolidWorks Simulation User Guide, Dassault Systèmes SolidWorks Corp., 2021.

DOI: 10.1016/j.repl.2015.02.041

[14] C. R. Asfahl and D. W. Rieske, Construction Safety and Health Mana.., 7th ed. Pearson, 2018.

[15] E. Oberg, F. D. Jones, H. L. Horton, and H. H. Ryffel, Machinery's Handbook, 30th ed. New York, NY, USA: Industrial Press, 2020.

[16] Y. Li, H. Yang, and M. Zhan,"Numerical simulation of tube bending process and defect analysis,"

[17] Journal of Materials Processing Technology, vol. 232, p.1–10, 2016

DOI: 10.1016/j.jmatprotec.2016.03.012

[18] A. Mentella and M. Strano, "Rotary draw bending of copper tubes: Experimental and numerical investigation," Journal of Manufacturing Processes, vol. 17, p.1–9, 2015

[19] X. Zhang, G. Zhao, and L. Chen, "Deformation behavior analysis in tube bending process," International Journal of Advanced., vol. 96, p.2345–2356, 2018
