Finite Element Method (FEM) Simulation of Modified Mechanical Jig on Upper Backer Press Process at PT XYZ Indonesia to Reduce the Surface Defect on Piano Sideboard

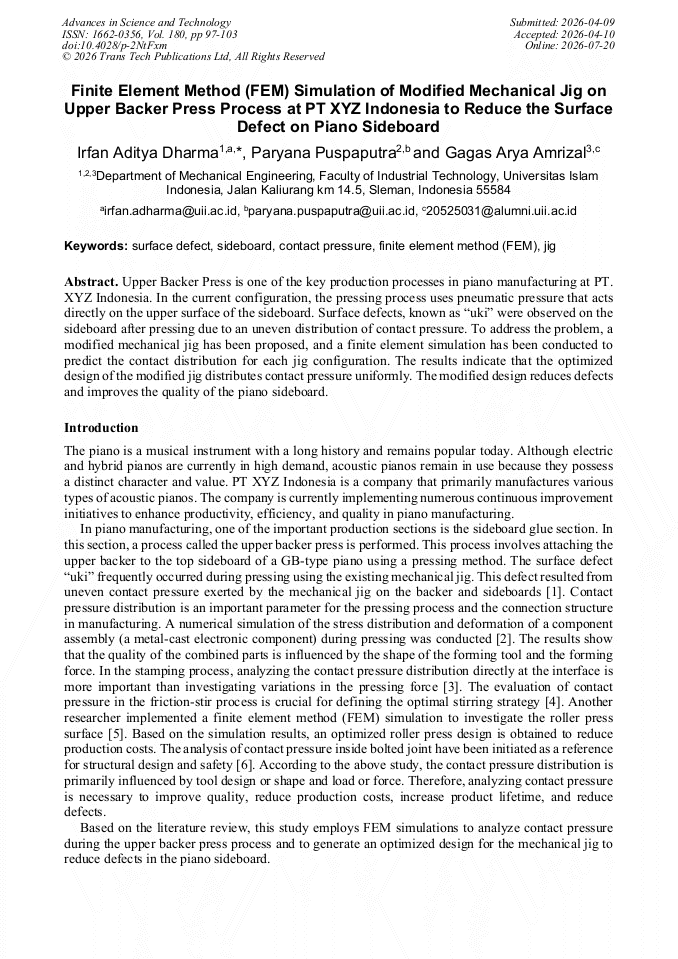

Article Preview

Abstract:

Upper Backer Press is one of the key production processes in piano manufacturing at PT. XYZ Indonesia. In the current configuration, the pressing process uses pneumatic pressure that acts directly on the upper surface of the sideboard. Surface defects, known as “uki” were observed on the sideboard after pressing due to an uneven distribution of contact pressure. To address the problem, a modified mechanical jig has been proposed, and a finite element simulation has been conducted to predict the contact distribution for each jig configuration. The results indicate that the optimized design of the modified jig distributes contact pressure uniformly. The modified design reduces defects and improves the quality of the piano sideboard.

You might also be interested in these eBooks
The 10th Int. Conf. on Materials Engineering and Nano Sciences & the 10th Int. Conf. on Material Engineering and Manufacturing (ICMENS & ICMEM) View Preview

Info:

Periodical:

Advances in Science and Technology (Volume 180)

Pages:

97-103

DOI:

https://doi.org/10.4028/p-2NtFxm

Citation:

Cite this paper

Online since:

July 2026

Authors:

Irfan Aditya Dharma*, Paryana Puspaputra, Gagas Arya Amrizal

Keywords:

Contact Pressure, Finite Element Method (FEM), Jig, Sideboard, Surface Defect

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] S. K. Panigrahi and B. Pradhan, "Onset and growth of adhesion failure and delamination induced damages in double lap joint of laminated FRP composites," Compos. Struct., vol. 85, no. 4, p.326–336, Oct. 2008.

DOI: 10.1016/j.compstruct.2007.10.036

Google Scholar

[2] P. Srb, J. Vosahlo, and M. Petrů, "Numeric Simulation of Part Assembly During Pressing Within Assembly Production Process," in Proceedings of the 61st International Conference of Machine Design Departments (ICMD 2020), 2023, p.227–233.

DOI: 10.2991/978-94-6463-182-1_24

Google Scholar

[3] S. Sah, "Investigation of Contact Pressure Distribution on Sheet Metal Stamping Tooling Interfaces: Surface Modeling, Simulations, and Experriments," University of Massachusetts Amherst, 2007.

Google Scholar

[4] T. Ohashi, X. Tong, Z. J. Zhao, H. Mofidi Tabatabaei, and T. Nishihara, "Visualization of Contact-Pressure Distribution between Material and Backing Plate in Friction Stir Processing," Key Eng. Mater., vol. 765, p.199–203, Mar. 2018.

DOI: 10.4028/www.scientific.net/KEM.765.199

Google Scholar

[5] F. Wang, J. Du, and G. Su, "Investigation of Roller Press Surface and Stud Based on FEM Simulation," Appl. Sci., vol. 13, no. 19, p.11032, Oct. 2023.

DOI: 10.3390/app131911032

Google Scholar

[6] J. Xie et al., "Simulation and experimental study on contact pressure distribution of contact interface in single and double bolted connection structures," J. Low Freq. Noise, Vib. Act. Control, vol. 43, no. 1, p.123–143, Mar. 2024.

DOI: 10.1177/14613484231209300

Google Scholar

[7] R. G. Budynas, W. C. Young, and A. M. Sadegh, Roark's Formulas for Stress and Strain, 8th Edition. McGraw-Hill Education, 2011.

Google Scholar

[8] P. O. Kettunen, Wood: Structure and Properties. Trans Tech Publications Limited, 2006.

Google Scholar
