Study on the Mechanical and Material Properties of Metal 3D Printing Specimens by FDM

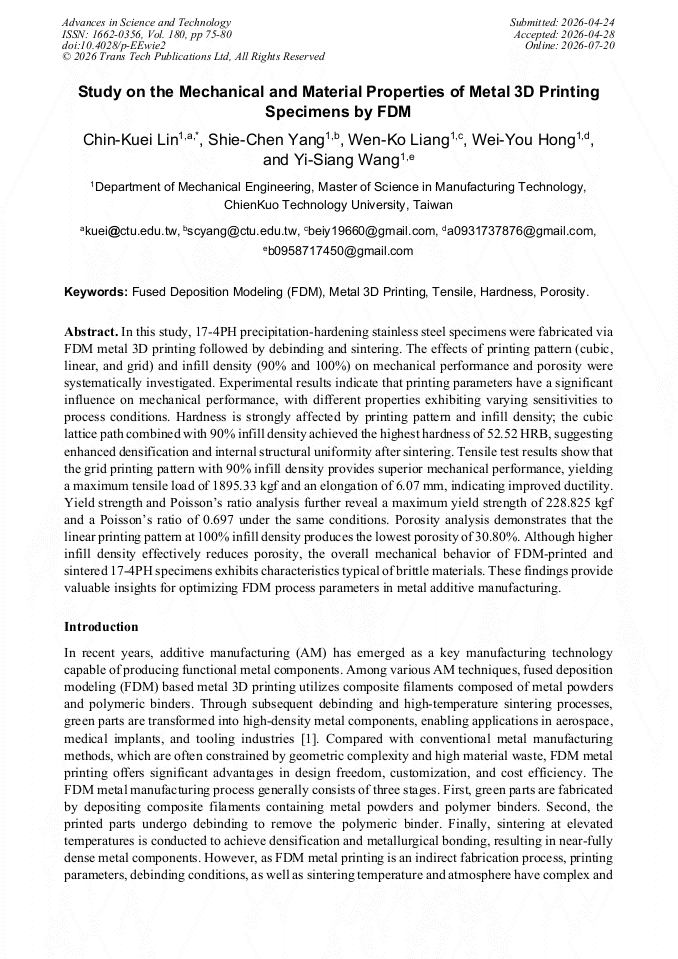

Article Preview

Abstract:

In this study, 17-4PH precipitation-hardening stainless steel specimens were fabricated via FDM metal 3D printing followed by debinding and sintering. The effects of printing pattern (cubic, linear, and grid) and infill density (90% and 100%) on mechanical performance and porosity were systematically investigated. Experimental results indicate that printing parameters have a significant influence on mechanical performance, with different properties exhibiting varying sensitivities to process conditions. Hardness is strongly affected by printing pattern and infill density; the cubic lattice path combined with 90% infill density achieved the highest hardness of 52.52 HRB, suggesting enhanced densification and internal structural uniformity after sintering. Tensile test results show that the grid printing pattern with 90% infill density provides superior mechanical performance, yielding a maximum tensile load of 1895.33 kgf and an elongation of 6.07 mm, indicating improved ductility. Yield strength and Poisson’s ratio analysis further reveal a maximum yield strength of 228.825 kgf and a Poisson’s ratio of 0.697 under the same conditions. Porosity analysis demonstrates that the linear printing pattern at 100% infill density produces the lowest porosity of 30.80%. Although higher infill density effectively reduces porosity, the overall mechanical behavior of FDM-printed and sintered 17-4PH specimens exhibits characteristics typical of brittle materials. These findings provide valuable insights for optimizing FDM process parameters in metal additive manufacturing.

You might also be interested in these eBooks
The 10th Int. Conf. on Materials Engineering and Nano Sciences & the 10th Int. Conf. on Material Engineering and Manufacturing (ICMENS & ICMEM) View Preview

Info:

Periodical:

Advances in Science and Technology (Volume 180)

Pages:

75-80

DOI:

https://doi.org/10.4028/p-EEwie2

Citation:

Cite this paper

Online since:

July 2026

Authors:

Chin Kuei Lin*, Shie Chen Yang, Wen Ko Liang, Wei You Hong, Yi Siang Wang

Keywords:

Fuse Deposition Modeling (FDM), Hardness, Metal 3D Printing, Porosity, Tensile

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] Haidar Ramazani & Abdolvahed Kami Progress in Additive Manufacturing Volume 7(2022) pages 609–626.

Google Scholar

[2] Vosynek, P. & Navrat, Tomas & Krejbychova, Adela & Paloušek, David. (2018). Included in D2ME 2018 Chapter 2: Material Engineering, Volume 237.

Google Scholar

[3] Miguel Ángel Caminero Corresponding Author; Ana Romero; Jesús Miguel Chacón; Pedro José Núñez; Eustaquio García-Plaza; Gloria Patricia Rodríguez Rapid Prototyping Journal 583–591(2021).

Google Scholar

[4] Chong-Yong Lee Adam C. Taylor Andrew Nattestad Stephen Beirne Gordon G. Wallace .3D Printing for Electrocatalytic Applications. CellPress Joule 3, 1835–1849, August 21, 2019 1849.

DOI: 10.1016/j.joule.2019.06.010

Google Scholar

[5] Yaozhong Zhang, Aljoscha Roch,Fused filament fabrication and sintering of 17-4PH stainless steel, Manufacturing Letters,Volume 33,2022,Pages 29-32.

DOI: 10.1016/j.mfglet.2022.06.004

Google Scholar

[6] Gong, H., Snelling, D., Kardel, K. et al. Comparison of Stainless Steel 316L Parts Made by FDM- and SLM-Based Additive Manufacturing Processes. JOM 71, 880–885 (2019).

DOI: 10.1007/s11837-018-3207-3

Google Scholar

[7] https://www.lcpf.com.tw/tw/knowledge/plastic-material/008?page=1&rtnKind=list.

Google Scholar
