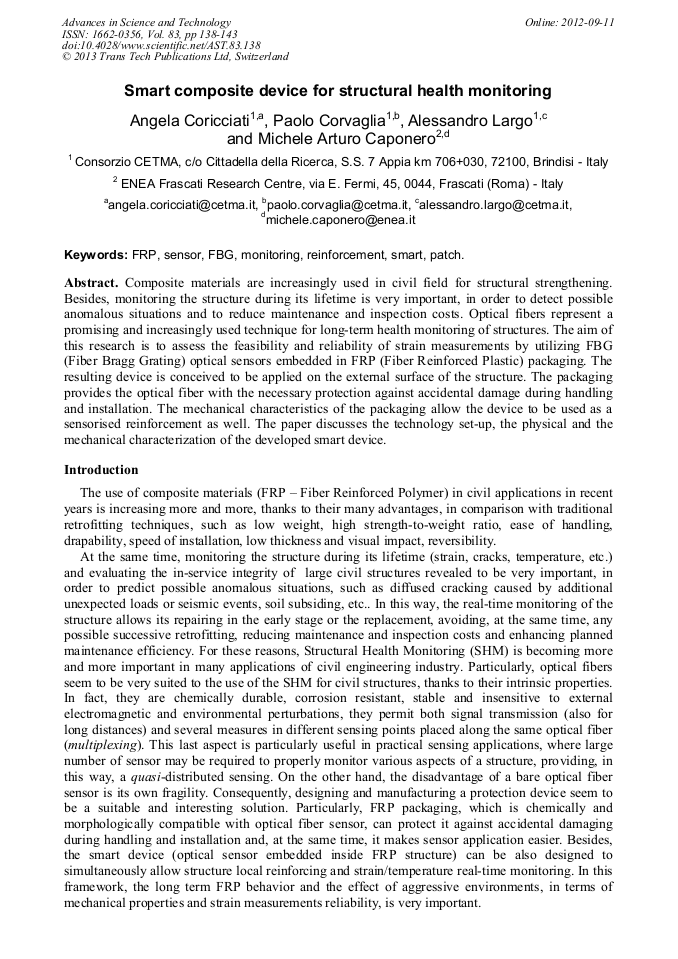

Smart Composite Device for Structural Health Monitoring

Abstract:

Composite materials are increasingly used in civil field for structural strengthening. Besides, monitoring the structure during its lifetime is very important, in order to detect possible anomalous situations and to reduce maintenance and inspection costs. Optical fibers represent a promising and increasingly used technique for long-term health monitoring of structures. The aim of this research is to assess the feasibility and reliability of strain measurements by utilizing FBG (Fiber Bragg Grating) optical sensors embedded in FRP (Fiber Reinforced Plastic) packaging. The resulting device is conceived to be applied on the external surface of the structure. The packaging provides the optical fiber with the necessary protection against accidental damage during handling and installation. The mechanical characteristics of the packaging allow the device to be used as a sensorised reinforcement as well. The paper discusses the technology set-up, the physical and the mechanical characterization of the developed smart device.

• Periodical: Advances in Science and Technology (Volume 83)
• Pages: 138-143
• DOI: https://doi.org/10.4028/www.scientific.net/AST.83.138
• Online since: September 2012
• Authors: Angela Coricciati, Paolo Corvaglia, Alessandro Largo, Michele Arturo Caponero
• Keywords: Fiber Bragg Grating (FBG), FRP, Monitoring, Patch, Reinforcement, Sensor, Smart

References

[1] P. Corvaglia. A. Largo, M.A. Caponero, G. Maddaluno, Development and some investigative testing of smart structural FRP devices with embedded fiber optic sensor for health monitoring of civil structures, Advances in Structural Engineering, Vol. 13 No. 5 (2010).

DOI: 10.1260/1369-4332.13.5.905

[2] C. Park, K. P. and M. Zikry, The Effects of Embedded Optical Fiber Density on the Impact Response and Lifetime of Laminated Composites, Journal of Intelligent Material Systems and Structures, Vol. 21 (2010).

DOI: 10.1177/1045389x10390250

[3] A. Papantoniou, G. Rigas, N. D. Alexopoulos, Assessment of the strain monitoring reliability of fiber Bragg grating sensor (FBGs) in advanced composite structures, Composite Structures, Vol. 93 (2011) 2163–2172.

DOI: 10.1016/j.compstruct.2011.03.001

[4] A. Coricciati, P. Corvaglia, A. Largo, M.A. Caponero, G. Maddaluno, Production and validation of smart FRP devices for structural health monitoring by using fiber optical sensors, Proceedings of the first congress ASSOCOMPOSITI, Milano (25-26 May 2011).

DOI: 10.1260/1369-4332.13.5.905
