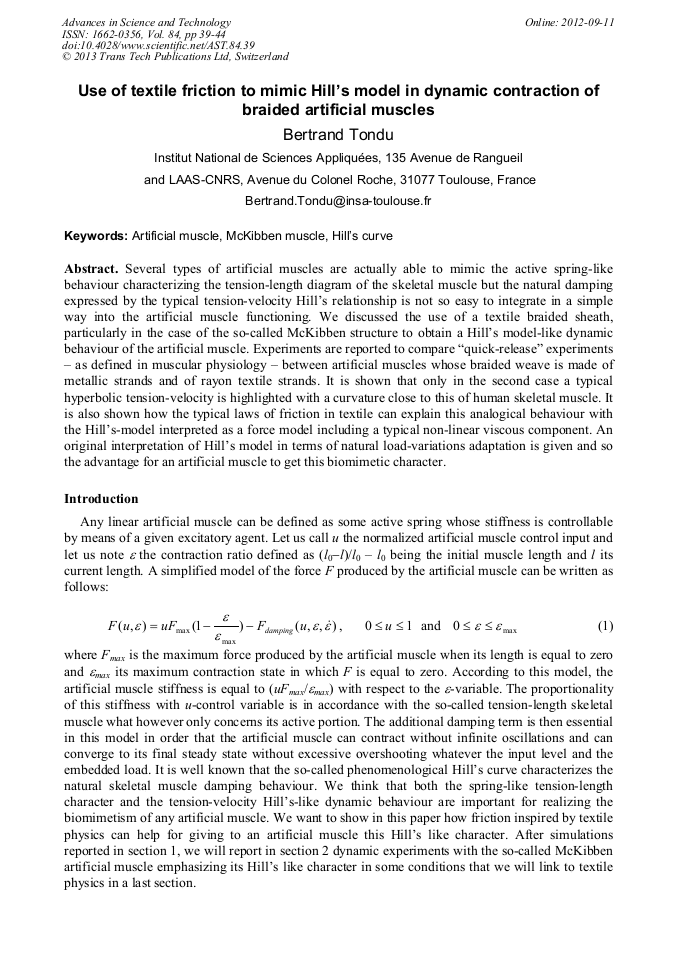

Use of Textile Friction to Mimic Hill's Model in Dynamic Contraction of Braided Artificial Muscles

Abstract:

Several types of artificial muscles are actually able to mimic the active spring-like behaviour characterizing the tension-length diagram of the skeletal muscle but the natural damping expressed by the typical tension-velocity Hill’s relationship is not so easy to integrate in a simple way into the artificial muscle functioning. We discussed the use of a textile braided sheath, particularly in the case of the so-called McKibben structure to obtain a Hill’s model-like dynamic behaviour of the artificial muscle. Experiments are reported to compare “quick-release” experiments – as defined in muscular physiology – between artificial muscles whose braided weave is made of metallic strands and of rayon textile strands. It is shown that only in the second case a typical hyperbolic tension-velocity is highlighted with a curvature close to this of human skeletal muscle. It is also shown how the typical laws of friction in textile can explain this analogical behaviour with the Hill’s-model interpreted as a force model including a typical non-linear viscous component. An original interpretation of Hill’s model in terms of natural load-variations adaptation is given and so the advantage for an artificial muscle to get this biomimetic character.

• Periodical: Advances in Science and Technology (Volume 84)
• Pages: 39-44
• DOI: https://doi.org/10.4028/www.scientific.net/AST.84.39
• Online since: September 2012
• Authors: Bertrand Tondu
• Keywords: Artificial Muscles, Hill’s Curve, Mckibben Muscle

References

[1] M. Lubin, Measurement of Mechanical Properties of Muscle under Servo Control, Proc. of the IRE, 47, 11 (1959) 1880-1888.

DOI: 10.1109/jrproc.1959.287159

[2] G.K. Klute, J.M. Czerniecki and B. Hannaford, Artificial Muscles: Actuators for Biorobotic Systems, The Int. Journal of Robotic Research, 21, 4 (2002) 295-309.

DOI: 10.1177/027836402320556331

[3] B. Tondu, Modelling of the McKibben Artificial Muscle: A Review, J. of Intelligent Material Systems and Structures, 23, 3 special issue on Fluidic Actuators (2012) 225-253.

DOI: 10.1177/1045389x11435435

[4] C. Rubenstein, Review on the Factors Influencing the Friction of Fibres, Yarns and Fabrics, Wear, 2 (1958/59) 296-310.

DOI: 10.1016/0043-1648(59)90267-4

[5] H.G. Howell, K.W. Mieszkis and D. Tabor, Friction in Textiles, Butterworths Scientific Publications, London, (1959).
