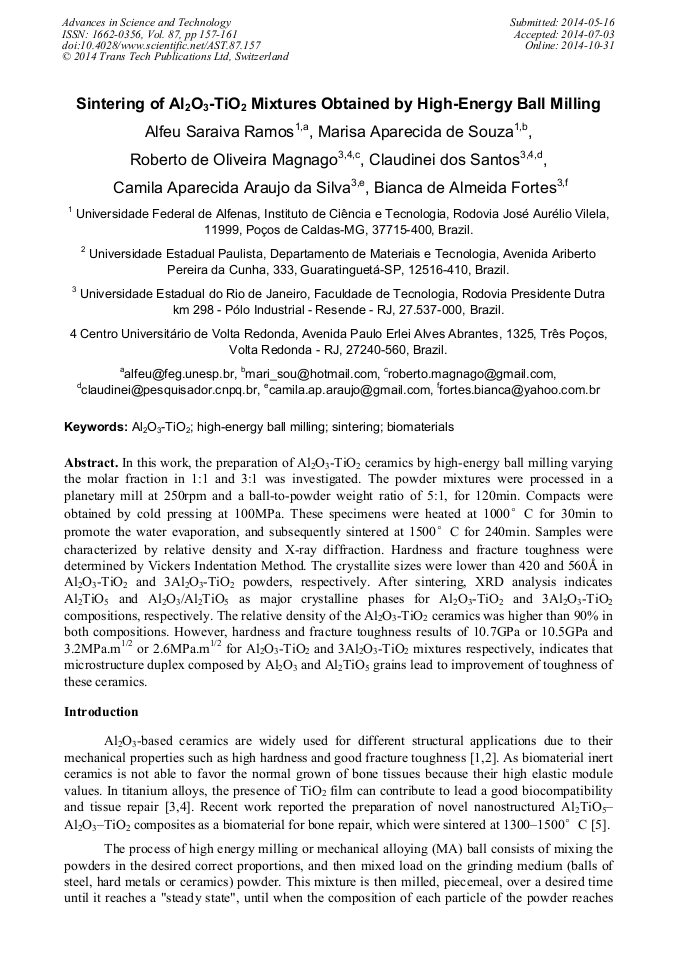

Sintering of Al₂O₃-TiO₂ Mixtures Obtained by High-Energy Ball Milling

Abstract:

In this work, the preparation of Al₂O₃-TiO₂ ceramics by high-energy ball milling varying the molar fraction in 1:1 and 3:1 was investigated. The powder mixtures were processed in a planetary mill at 250rpm and a ball-to-powder weight ratio of 5:1, for 120min. Compacts were obtained by cold pressing at 100MPa. These specimens were heated at 1000^◦C for 30min to promote the water evaporation, and subsequently sintered at 1500^◦C for 240min. Samples were characterized by relative density and X-ray diffraction. Hardness and fracture toughness were determined by Vickers Indentation Method. The crystallite sizes were lower than 420 and 560Å in Al₂O₃-TiO₂ and 3Al₂O₃-TiO₂ powders, respectively. After sintering, XRD analysis indicates Al₂TiO₅ and Al₂O₃/Al₂TiO₅ as major crystalline phases for Al₂O₃-TiO₂ and 3Al₂O₃-TiO₂ compositions, respectively. The relative density of the Al₂O₃-TiO₂ ceramics was higher than 90% in both compositions. However, hardness and fracture toughness results of 10.7GPa or 10.5GPa and 3.2MPa.m^1/2 or 2.6MPa.m^1/2 for Al₂O₃-TiO₂ and 3Al₂O₃-TiO₂ mixtures respectively, indicates that microstructure duplex composed by Al₂O₃ and Al₂TiO₅ grains lead to improvement of toughness of these ceramics.

• Periodical: Advances in Science and Technology (Volume 87)
• Pages: 157-161
• DOI: https://doi.org/10.4028/www.scientific.net/AST.87.157
• Online since: October 2014
• Authors: Alfeu Saraiva Ramos, Marisa Aparecida de Souza, Roberto de Oliveira Magnago*, Claudinei dos Santos, Camila Aparecida Araujo da Silva, Bianca de Almeida Fortes
• Keywords: Al₂O₃-TiO₂, Biomaterial, High-Energy Ball Milling, Sintering

References

[1] Thomas J Webster. Nanophase ceramics: The future orthopedic and dental implant material . Advances in Chemical Engineering, Volume 27, 2001, Pages 125-166.

DOI: 10.1016/s0065-2377(01)27005-7

[2] I. Mobasherpour, M. Solati Hashjin, S.S. Razavi Toosi and R. Darvishi Kamachali: Ceramics International Vol 35 (2009), p.1569.

DOI: 10.1016/j.ceramint.2008.08.017

[3] H. Qi, Y. Fan, W. Xing and L. Winnubst: J. of the European Ceramic Society Vol 30 (2010), p.1317.

[4] M. Geetha, A.K. Singh, R. Asokamani and A.K. Gogia: Progress in Materials Science Vol 54 (2009), p.397.

[5] S.J. Kalita and V. Somani: Mat. Research Bulletin Vol 45 (2010), p.1803.

[6] W.J. Nascimento, T.G.M. Bonadio, V.F. Freitas, W.R. Weinand, M.L. Baesso and W.M. Lima: Materials Chemistry and Physics Vol 130 (2011), p.84.

DOI: 10.1016/j.matchemphys.2011.05.069

[7] C. Suryaranayana, Mechanical alloying and milling. Progress in Materials Science, v. 46, pp.1-184, (2001).

[8] D. Choi and P.N. Kumta: Mat. Sci. and Eng. C Vol 27 (2007), p.377.

[9] C. Santos, M.H. Koizumi, J.K.M.F. Daguano, F.A. Santos, C.N. Elias and A.S. Ramos: Materials Science and Engineering A Vol 502 (2009), p.6.

[10] W Kraus and G Nolze: J. Applied Crystallography Vol 29 (1996), p.301.

[11] P. Duran, M. Villegas, F. Capel, P. Recio and C. Moure: J. Eur. Ceram. Soc. Vol 16 (1996), p.945.

[12] H.P. Klug and L.E. Alexander: X-Ray Diffraction Procedures; for Polycrystalline and Amorphous Materials, John Willey, New York, 1974, p.618.

[13] H.M. Rietveld, J. Appl. Crystall. Vol 2 (1969), p.65.

[14] A.C. Larson and R.B. Von Dreele: Los Alamos National Laboratory. Los Alamos, EUA. Copyright, 1985-2000: The Regents of the University of California, (2001).

[15] Niihara K, Moreno R and Hasselman DPH. J. Mater. Sci. Lett, 1982; 1; 13–16.
