Nitrogen Doped and Functionalized Carbon Materials as Supports for Catalysts in Electro-Oxidation of Methanol

Abstract:

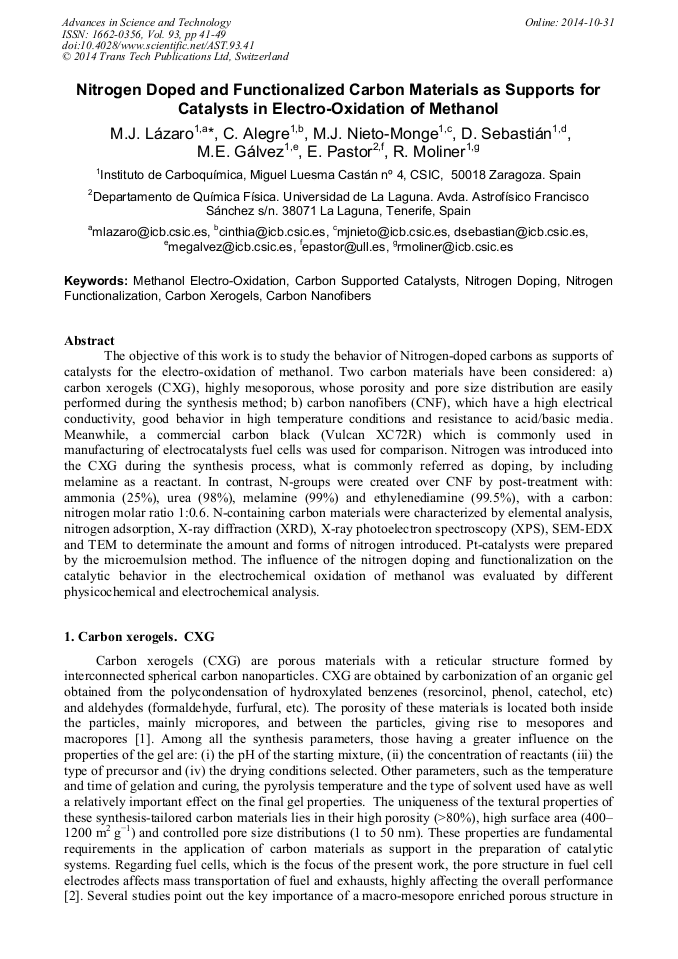

Article Preview

The objective of this work is to study the behavior of Nitrogen-doped carbons as supports of catalysts for the electro-oxidation of methanol. Two carbon materials have been considered: a) carbon xerogels (CXG), highly mesoporous, whose porosity and pore size distribution are easily performed during the synthesis method; b) carbon nanofibers (CNF), which have a high electrical conductivity, good behavior in high temperature conditions and resistance to acid/basic media. Meanwhile, a commercial carbon black (Vulcan XC72R) which is commonly used in manufacturing of electrocatalysts fuel cells was used for comparison. Nitrogen was introduced into the CXG during the synthesis process, what is commonly referred as doping, by including melamine as a reactant. In contrast, N-groups were created over CNF by post-treatment with: ammonia (25%), urea (98%), melamine (99%) and ethylenediamine (99.5%), with a carbon: nitrogen molar ratio 1:0.6. N-containing carbon materials were characterized by elemental analysis, nitrogen adsorption, X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), SEM-EDX and TEM to determinate the amount and forms of nitrogen introduced. Pt-catalysts were prepared by the microemulsion method. The influence of the nitrogen doping and functionalization on the catalytic behavior in the electrochemical oxidation of methanol was evaluated by different physicochemical and electrochemical analysis.

Info:

Periodical:

Edited by:

Pietro Vincenzini

Pages:

41-49

Citation:

M.J. Lázaro et al., "Nitrogen Doped and Functionalized Carbon Materials as Supports for Catalysts in Electro-Oxidation of Methanol", Advances in Science and Technology, Vol. 93, pp. 41-49, 2014

Online since:

October 2014

Export:

Price:

$41.00

* - Corresponding Author

[1] Yoshizawa N., Hatori H., Soneda Y., Hanzawa Y., Kaneko K., Dresselhaus M.S. Structure and electrochemical properties of carbon aerogels polymerized in the presence of Cu2+. Journal of Non-Crystalline Solids, 330 (2003) 99-105.

DOI: https://doi.org/10.1016/j.jnoncrysol.2003.08.041

[2] Du H., Li B., Kang F., Fu R., Zeng Y. Carbon aerogel supported Pt–Ru catalysts for using as the anode of direct methanol fuel cells. Carbon, 45 (2007) 429-435.

DOI: https://doi.org/10.1016/j.carbon.2006.08.023

[3] Antolini E. Carbon supports for low-temperature fuel cell catalysts. Applied Catalysis B, 88 (2009) 1-24.

DOI: https://doi.org/10.1016/j.apcatb.2008.09.030

[4] Perez-Cadenas M., Moreno-Castilla C., Carrasco-Marín F, Pérez-Cadenas A.F. Surface chemistry, porous texture, and morphology of N-doped carbon xerogels. Langmuir, 25 (2009) 466–70.

DOI: https://doi.org/10.1021/la8027786

[5] Gorgulho H.F., Gonçalves F., Pereira M.F.R., Figueiredo J.L. Synthesis and characterization of nitrogen-doped carbon xerogels. Carbon, 47 (2009) 2032-(2039).

DOI: https://doi.org/10.1016/j.carbon.2009.03.050

[6] Pizzi A. Handbook of Adhesive Technology, Revised and Expanded. Chapter 32. Melamine-Formaldehyde Adhesives ISBN: 0-8247-0986-1; Eds. Marcel Dekker Inc.: New York, NY, USA, (2003).

DOI: https://doi.org/10.1201/9780203912225.ch32

[7] Zhang Y., Feng H., Wu X., Wang L., Zhang A., Xia T., Dong H., Li X., Zhang L. Progress of electrochemical capacitor electrode materials: A review. International Journal of Hydrogen Energy, 34 (2009) 4889-4899.

DOI: https://doi.org/10.1016/j.ijhydene.2009.04.005

[8] Paraknowitsch J.P., Thomas A., Antonietti M. A detailed view on the polycondensation of ionic liquid monomers towards nitrogen doped carbon materials. Journal of Materials Chemistry, 20 (2010) 6746–6758.

DOI: https://doi.org/10.1039/c0jm00869a

[9] Celzard A., Marêché J.F., Payot F., Furdin G. Electrical conductivity of carbonaceous powders. Carbon, 40 (2002) 2801-2815.

DOI: https://doi.org/10.1016/s0008-6223(02)00196-3

[10] Sebastián D., Suelves I., Moliner R., Lázaro M.J. The effect of the functionalization of carbon nanofibers on their electronic conductivity. Carbon, 48 (2010) 4421-4431.

DOI: https://doi.org/10.1016/j.carbon.2010.07.059

[11] Zhou Y., Pasquarelli R., Holme T., Berry J., Ginley D., O'Hayre R. Improving PEM fuel cell catalyst activity and durability using nitrogen-doped carbon supports: observations from model Pt/HOPG systems. Journal of Materials Chemistry, 19 (2009).

DOI: https://doi.org/10.1039/b910924b

[12] Shao Y., Yin G., Gao Y. Understanding and approaches for the durability issues of Pt-based catalysts for PEM fuel cell. Journal of Power Sources, 171 (2007) 558-56.

DOI: https://doi.org/10.1016/j.jpowsour.2007.07.004

[13] Roy S. C., Christensen P.A., Hamnelt A., Thomas K. M., Trapp V. Direct methanol fuel cell cathodes with sulfur and nitrogen-based carbon functionality. Journal of Electrochemical Society, 143 (1996) 3073-3079.

DOI: https://doi.org/10.1149/1.1837166

[14] Matter P. H, Zhang L., Ozkan U.S. The role of nanostructure in nitrogen-containing carbon catalysts for the oxygen reduction reaction. Journal of Catalysis, 239 (2006) 83-96.

DOI: https://doi.org/10.1016/j.jcat.2006.01.022

[15] Maldonado S., Stevenson K. J Influence of Nitrogen Doping on Oxygen Reduction Electrocatalysis at Carbon Nanofiber Electrodes. J. Phys. Chem. B, 109 (2005) 4707-4716.

DOI: https://doi.org/10.1021/jp044442z

[16] Wu G., Swaidan R., Li D., Li N. Enhanced methanol electro-oxidation activity of PtRu catalysts supported on heteroatom-doped carbon. Electrochimica Acta, 53 (2008) 7622–7629.

DOI: https://doi.org/10.1016/j.electacta.2008.03.082

[17] Rodríguez N.M., Chambers A., Baker R.T.K. Catalytic engineering of carbon nanostructures. Langmuir, 11 (1995) 3862-3866.

DOI: https://doi.org/10.1021/la00010a042

[18] De Jong K.P., Geus J.W. Carbon nanofibers: catalytic synthesis and applications. Catalysis Reviews- Science Engineering, 42 (4) (2000) 481-510.

DOI: https://doi.org/10.1081/cr-100101954

[19] M. J. Lázaro, D. Sebastián, I. Suelves, R. Moliner. Carbon nanofiber growth optimization for their use as electrocatalyst support in proton exchange membrane (PEM) fuel cells Journal of Nanoscience and Nanotechnology, 9 (7) (2009) pp.4353-4359.

DOI: https://doi.org/10.1166/jnn.2009.m59

[20] I. Suelves, M.J. Lázaro, R. Moliner, Y. Echegoyen, J.M. Palacios. Characterization of NiAl and NiCuAl catalysts prepared by different methods for hydrogen production by thermo catalytic decomposition of methane Catalysis Today, 116 (2006).

DOI: https://doi.org/10.1016/j.cattod.2006.05.071

[21] D. Sebastián, I. Suelves, M.J. Lázaro, R. Moliner. Carbon nanofibers as electrocatalyst support for fuel cells: Effect of hydrogen on their properties in CH4 decomposition. Journal of Power Sources, 192 (2009) 51-56.

DOI: https://doi.org/10.1016/j.jpowsour.2008.11.092

[22] Pinilla J.L., Suelves I., Lázaro M.J., Moliner R., Palacios J.M. Activity of NiCuAl catalyst in methane decomposition studied using a thermobalance and the structural changes in the Ni and the deposited carbon. International Journal of Hydrogen Energy, 33 (2008).

DOI: https://doi.org/10.1016/j.ijhydene.2008.02.041
