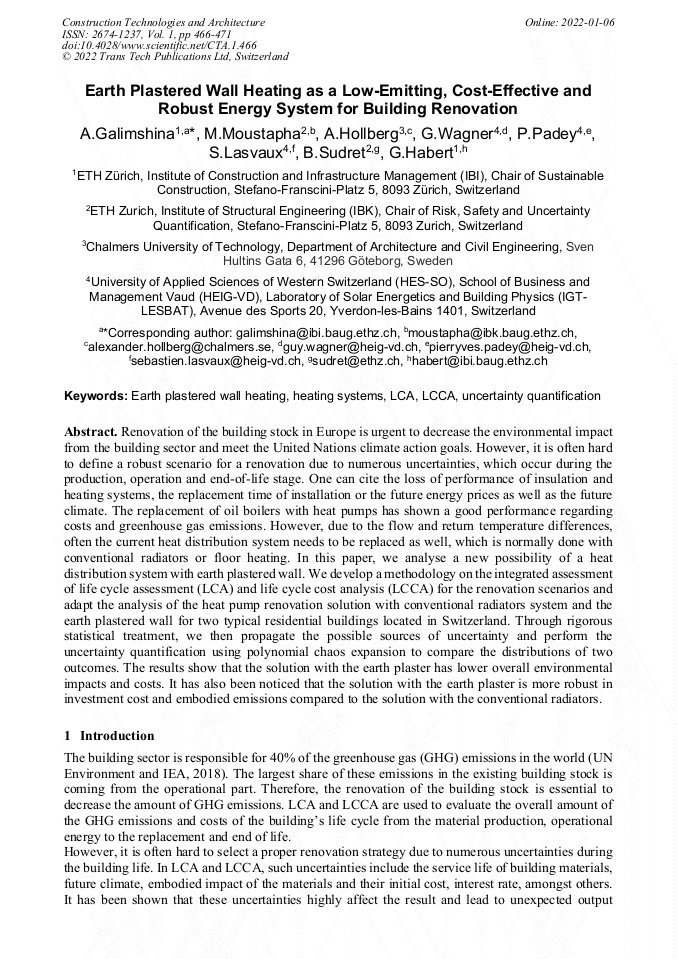

Earth Plastered Wall Heating as a Low-Emitting, Cost-Effective and Robust Energy System for Building Renovation

Abstract:

Renovation of the building stock in Europe is urgent to decrease the environmental impact from the building sector and meet the United Nations climate action goals. However, it is often hard to define a robust scenario for a renovation due to numerous uncertainties, which occur during the production, operation and end-of-life stage. One can cite the loss of performance of insulation and heating systems, the replacement time of installation or the future energy prices as well as the future climate. The replacement of oil boilers with heat pumps has shown a good performance regarding costs and greenhouse gas emissions. However, due to the flow and return temperature differences, often the current heat distribution system needs to be replaced as well, which is normally done with conventional radiators or floor heating. In this paper, we analyse a new possibility of a heat distribution system with earth plastered wall. We develop a methodology on the integrated assessment of life cycle assessment (LCA) and life cycle cost analysis (LCCA) for the renovation scenarios and adapt the analysis of the heat pump renovation solution with conventional radiators system and the earth plastered wall for two typical residential buildings located in Switzerland. Through rigorous statistical treatment, we then propagate the possible sources of uncertainty and perform the uncertainty quantification using polynomial chaos expansion to compare the distributions of two outcomes. The results show that the solution with the earth plaster has lower overall environmental impacts and costs. It has also been noticed that the solution with the earth plaster is more robust in investment cost and embodied emissions compared to the solution with the conventional radiators.

• Periodical: Construction Technologies and Architecture (Volume 1)
• Pages: 466-471
• DOI: https://doi.org/10.4028/www.scientific.net/CTA.1.466
• Online since: January 2022
• Authors: Alina Galimshina*, Maliki Moustapha, Alexander Hollberg, Guy Wagner, Pierryves Padey, Sébastien Lasvaux, Bruno Sudret, Guillaume Habert
• Keywords: Earth Plastered Wall Heating, Heating Systems, LCA, LCCA

References

[1] Chen, C. et al. (2010) Environmental impact of cement production: detail of the different processes and cement plant variability evaluation,, Journal of Cleaner Production. Elsevier Ltd, 18(5), p.478–485.

DOI: 10.1016/j.jclepro.2009.12.014

[2] Clayworks (2020) Heated clay wall & ceiling system. Available at: https://clay-works.com/heated-clay-wall-ceiling-system/.

[3] Fabbri, A. and Morel, J. C. (2019) Earthen materials and constructions, Nonconventional and Vernacular Construction Materials: Characterisation, Properties and Applications. Elsevier Ltd.

DOI: 10.1016/B978-0-08-102704-2.00014-7

[4] Favi, C. et al. (2018) Building Retrofit Measures and Design : A Probabilistic Approach for LCA,, Sustainability, 10(10).

DOI: 10.3390/su10103655

[5] Fawcett, W. et al. (2012) Flexible strategies for long-term sustainability under uncertainty,, Building Research and Information, 40(5), p.545–557.

DOI: 10.1080/09613218.2012.702565

[6] Finnegan, S., Jones, C. and Sharples, S. (2018) The embodied CO2e of sustainable energy technologies used in buildings: A review article,, Energy and Buildings. Elsevier B.V., 181, p.50–61.

DOI: 10.1016/j.enbuild.2018.09.037

[7] Galimshina, A. et al. (2020) Statistical method to identify robust building renovation choices for environmental and economic performance,, Building and Environment, 183(107143).

DOI: 10.1016/j.buildenv.2020.107143

[8] Gomes, F. et al. (2013) Adaptation of environmental data to national and sectorial context: Application for reinforcing steel sold on the French market,, International Journal of Life Cycle Assessment, 18(5), p.926–938.

DOI: 10.1007/s11367-013-0558-4

[9] Le Gratiet, L. L., Marelli, S. and Sudret, B. (2017) Metamodel-based sensitivity analysis: Polynomial chaos expansions and gaussian processes,, Handbook of Uncertainty Quantification, p.1289–1325.

DOI: 10.1007/978-3-319-12385-1_38

[10] Häfliger, I.-F. et al. (2017) Buildings environmental impacts' sensitivity related to LCA modelling choices of construction materials,, Journal of Cleaner Production, 156, p.805–816.

DOI: 10.1016/j.jclepro.2017.04.052

[11] KBOB (2016) KBOB "Ökobilanzdaten im Baubereich",. Available at: https://www.kbob.admin.ch/kbob/de/home/publikationen/nachhaltiges-bauen.html.

[12] Lewis, E. (2018) Environmental Product Declaration,, Sustainaspeak, (May 2018), p.106–107.

DOI: 10.4324/9781315270326-75

[13] Liuzzi, S. et al. (2013) Hygrothermal behaviour and relative humidity buffering of unfired and hydrated lime-stabilised clay composites in a Mediterranean climate,, Building and Environment. Elsevier Ltd, 61, p.82–92.

DOI: 10.1016/j.buildenv.2012.12.006

[14] Macdonald, I. (2002) Quantifying the Effects of Uncertainty in Building Simulation,, Regulation, Ph D(July), p.267. Available at: http://www.strath.ac.uk/media/departments/ mechanicalengineering/esru/research/phdmphilprojects/macdonald_thesis.pdf.

[15] McGregor, F. et al. (2016) A review on the buffering capacity of earth building materials,, Proceedings of Institution of Civil Engineers: Construction Materials, 169(5), p.241–251.

DOI: 10.1680/jcoma.15.00035

[16] Mileto, C., Vegas, F. and Cristini, V. (2006) Earthen architecture, Geological Society Engineering Geology Special Publication.

DOI: 10.1144/GSL.ENG.2006.021.01.13

[17] Myhren, J. A. and Holmberg, S. (2008) Flow patterns and thermal comfort in a room with panel, floor and wall heating,, Energy and Buildings, 40(4), p.524–536.

DOI: 10.1016/j.enbuild.2007.04.011

[18] Rhee, K. N. and Kim, K. W. (2015) A 50 year review of basic and applied research in radiant heating and cooling systems for the built environment,, Building and Environment. Elsevier, 91, p.166–190.

DOI: 10.1016/j.buildenv.2015.03.040

[19] Schroeder, H. (2014) Clay boards and panels-an innovative earth building product for drywall construction,, Earthen Architecture: Past, Present and Future, p.339–344.

DOI: 10.1201/b17392

[20] Sevilgen, G. and Kilic, M. (2011) Numerical analysis of air flow, heat transfer, moisture transport and thermal comfort in a room heated by two-panel radiators,, Energy and Buildings, 43(1), p.137–146.

DOI: 10.1016/j.enbuild.2010.08.034

[21] SIA (2010) Graue Energie von Gebäuden Korrigenda C1 zu SIA 2032 : 2010,.

[22] SIA 480 (2016) Wirtschaftlichkeitsrechnung für Investitionen im Hochbau,.

[23] UN Environment and IEA (2018) 2018 Global Status Report: towards a zero‐emission, efficient and resilient buildings and construction sector,. International Energy Agency and the United Nations Environment Programme, p.325.

[24] Variotherm (2020a) Clay wall for natural room conditions. Available at: https://www.variotherm.com/en/service/news/details/clay-wall.html.

[25] Variotherm (2020b) Plaster wall. Heating and cooling,. Available at: http://www.variotherm.com/.
