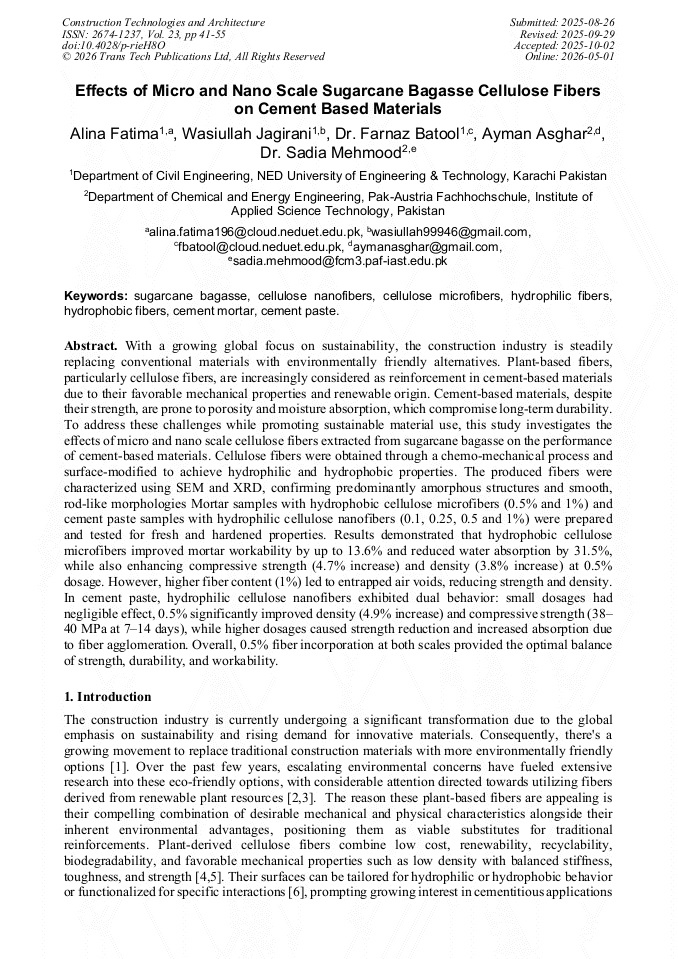

Effects of Micro and Nano Scale Sugarcane Bagasse Cellulose Fibers on Cement Based Materials

Abstract:

With a growing global focus on sustainability, the construction industry is steadily replacing conventional materials with environmentally friendly alternatives. Plant-based fibers, particularly cellulose fibers, are increasingly considered as reinforcement in cement-based materials due to their favorable mechanical properties and renewable origin. Cement-based materials, despite their strength, are prone to porosity and moisture absorption, which compromise long-term durability. To address these challenges while promoting sustainable material use, this study investigates the effects of micro and nanoscale cellulose fibers extracted from sugarcane bagasse on the performance of cement-based materials. Cellulose fibers were obtained through a chemo-mechanical process and surface-modified to achieve hydrophilic and hydrophobic properties. The produced fibers were characterized using SEM and XRD, confirming predominantly amorphous structures and smooth, rod-like morphologies Mortar samples with hydrophobic cellulose microfibers (0.5% and 1%) and cement paste samples with hydrophilic cellulose nanofibers (0.1, 0.25, 0.5 and 1%) were prepared and tested for fresh and hardened properties. Results demonstrated that hydrophobic cellulose microfibers improved mortar workability by up to 13.6% and reduced water absorption by 31.5%, while also enhancing compressive strength (4.7% increase) and density (3.8% increase) at 0.5% dosage. However, higher fiber content (1%) led to entrapped air voids, reducing strength and density. In cement paste, hydrophilic cellulose nanofibers exhibited dual behavior: small dosages had negligible effect, 0.5% significantly improved density (4.9% increase) and compressive strength (38–40 MPa at 7–14 days), while higher dosages caused strength reduction and increased absorption due to fiber agglomeration. Overall, 0.5% fiber incorporation at both scales provided the optimal balance of strength, durability, and workability.

• Periodical: Construction Technologies and Architecture (Volume 23)
• Pages: 41-55
• DOI: https://doi.org/10.4028/p-rieH8O
• Online since: May 2026
• Authors: Alina Fatima*, Wasiullah Jagirani, Farnaz Batool, Ayman Asghar, Sadia Mehmood
• Keywords: Cellulose Microfibers, Cellulose Nanofibers, Cement Mortar, Cement Paste, Hydrophilic Fibers, Hydrophobic Fibers, Sugarcane Bagasse

References

[1] Santos, R. F., Ribeiro, J. C. L., de Carvalho, J. M. F., Magalhães, W. L. E., Pedroti, L. G., Nalon, G. H., & de Lima, G. E. S. (2020). Nanofibrillated cellulose and its applications in cement-based composites: A review. Construction and Building Materials, 241, 118057.

DOI: 10.1016/j.conbuildmat.2021.123122

[2] Guo, A., Sun, Z., Sathitsuksanoh, N., & Feng, H. (2021). A Review on the Application of Nanocellulose in Cementitious Materials. Polymers, 13(11), 1767.

[3] Nasir, M., Aziz, M. A., Zubair, M., Manzar, M. S., Ashraf, N., Mu'azu, N. D., & Al-Harthi, M. A. (2021). Recent review on synthesis, evaluation, and SWOT analysis of nanostructured cellulose in construction applications. Journal of Building Engineering, 44, 102614.

DOI: 10.1016/j.jobe.2021.103747

[4] Satyanarayana, K. G., Arizaga, G. G. C., & Wypych, F. (2009). Biodegradable composites based on lignocellulosic fibers—an overview. Progress in Polymer Science, 34(9), 982–1021.

DOI: 10.1016/j.progpolymsci.2008.12.002

[5] Wambua, P., Ivens, J., & Verpoest, I. (2003). Natural fibres: can they replace glass in fibre reinforced plastics? Composites Science and Technology, 63(9), 1259–1264.

DOI: 10.1016/s0266-3538(03)00096-4

[6] Ardanuy, M., Claramunt, J., & Toledo Filho, R. D. (2015). Cellulosic fiber reinforced cement-based composites: A review of recent research. Construction and Building Materials, 79, 115–128.

DOI: 10.1016/j.conbuildmat.2015.01.035

[7] Hisseine, O. A., Basic, N., Omran, A. F., & Tagnit-Hamou, A. (2018). Feasibility of using cellulose filaments as a viscosity modifying agent in self-consolidating concrete. Cement and Concrete Composites, 94, 327–340.

DOI: 10.1016/j.cemconcomp.2018.09.009

[8] Lee, H.-J., Kim, S.-K., Lee, H.-S., & Kim, W. (2019). A Study on the Drying Shrinkage and Mechanical Properties of Fiber Reinforced Cement Composites Using Cellulose Nanocrystals. International Journal of Concrete Structures and Materials, 13(1), 39.

DOI: 10.1186/s40069-019-0351-2

[9] Kolour, H. H., Ashraf, W., & Landis, E. N. (2020). Hydration and Early Age Properties of Cement Pastes Modified with Cellulose Nanofibrils. Transportation Research Record, 2674(7), 1–12.

DOI: 10.1177/0361198120945993

[10] Mazlan, D., Krishnan, S., Din, M. F. M., Tokoro, C., Khalid, N. H. A., Ibrahim, I. S., Takahashi, H., & Komori, D. (2020). Effect of Cellulose Nanocrystals Extracted from Oil Palm Empty Fruit Bunch as Green Admixture for Mortar. Scientific Reports, 10(1), 6412.

DOI: 10.1038/s41598-020-63575-7

[11] Deze, E. G., Cuenca, E., Násner, A. M. L., Iakovlev, M., Sideri, S., Sapalidis, A., Borg, R. P., & Ferrara, L. (2021). Nanocellulose enriched mortars: Evaluation of nanocellulose properties affecting microstructure, strength and development of mixing protocols. Cement and Concrete Composites, 115, 103834.

DOI: 10.1016/j.matpr.2021.09.511

[12] Nasir, M., Aziz, M. A., Zubair, M., Ashraf, N., Hussein, T. N., Allubli, M. K., Manzar, M. S., Al-Kutti, W., & Al-Harthi, M. A. (2022). Engineered cellulose nanocrystals-based cement mortar from office paper waste: Flow, strength, microstructure, and thermal properties. Construction and Building Materials, 314, 125627.

DOI: 10.1016/j.jobe.2022.104345

[13] Cao, Y., Tian, N., Bahr, D., Zavattieri, P. D., Youngblood, J., Moon, R. J., & Weiss, J. (2015). The influence of cellulose nanocrystal additions on the performance of cement paste. Cement and Concrete Composites, 56, 73–83.

DOI: 10.1016/j.cemconcomp.2014.11.008

[14] Souza, L. O. de, Cordazzo, M., de Souza, L. M. S., Tonoli, G., de Andrade Silva, F., & Mechtcherine, V. (2020). Investigation of dispersion methodologies of microcrystalline and nano-fibrillated cellulose on cement pastes. Construction and Building Materials, 264, 120276.

DOI: 10.1016/j.cemconcomp.2021.104351

[15] Silva, L., Parveen, S., Filho, A., Zottis, A., Rana, S., Vanderlei, R., & Fangueiro, R. (2020). A facile approach of developing micro crystalline cellulose reinforced cementitious composites with improved microstructure and mechanical performance. Construction and Building Materials, 263, 120146.

DOI: 10.1016/j.powtec.2018.07.076

[16] Machado, P. J. C., Ferreira, R. A. d. R., Motta, L. A. d. C., & Pasquini, D. (2015). Characterization and properties of cementitious composites with cellulose fiber, silica fume and latex. Construction and Building Materials, 80, 176–182.

DOI: 10.1016/j.conbuildmat.2020.119602

[17] Gwon, S., Choi, Y. C., & Shin, M. (2021). Effect of plant cellulose microfibers on hydration of cement composites. Construction and Building Materials, 271, 121911.

DOI: 10.1016/j.conbuildmat.2020.121734

[18] Gómez Hoyos, C., Zuluaga, R., Gañán, P., Piqué, T. M., & Vázquez, A. (2014). Cellulose nanofibrils extracted from fique fibers as bio-based cement additive. Cement and Concrete Composites, 45, 158–168.

DOI: 10.1016/j.jclepro.2019.06.292

[19] Liu, K., Wen, Z., Zheng, Y., Xu, Y., Yu, J., Ye, J., Zhang, W., Zhong, W., Gao, X., & Liu, H. (2020). Microstructural feature of cellulose fibre in cement-based composites at different curing temperature. Construction and Building Materials, 265, 120338.

DOI: 10.1016/j.jobe.2022.105569

[20] Gwon, S., & Shin, M. (2021). Rheological properties of cement pastes with cellulose microfibers. Construction and Building Materials, 271, 121910.

[21] Maa, W., Qin, Y., Li, Y., Chai, J., Zhang, X., Ma, Y., & Liu, H. (2021). Mechanical properties and engineering application of cellulose fiberreinforced concrete. Journal of Building Engineering, 33, 101843.

[22] Rocha, J. H. T., Oliveira, F. J. V., Sena Neto, A. R., & Savastano Júnior, H. (2021). Effect of microcrystalline cellulose on geopolymer and Portland cement pastes mechanical performance. Journal of Building Engineering, 43, 102579.

[23] Taheri, M., Nazari, A., & Khalifeh, M. (2022). Microfibrillated cellulose as a new approach to develop lightweight cementitious composites: Rheological, Mechanical, and microstructure perspectives. Construction and Building Materials, 320, 126215.

DOI: 10.1016/j.conbuildmat.2022.128008

[24] Stevulova, N., Purkynova, M., Kotes, P., Vlcek, M., & Terpakova, E. (2020). Physico-Mechanical Properties of Cellulose Fiber-Cement Mortars. Applied Sciences, 10(21), 7684.

[25] Kamasamudram, K. S., Stefanidou, M., Gkountzoulas, G., Shah, S. P., & Sant, G. (2021). Cellulose nanofibrils with and without nanosilica for the performance enhancement of Portland cement systems. Cement and Concrete Composites, 115, 103835.

DOI: 10.1016/j.conbuildmat.2020.121547

[26] Shahbazi, R., Korayem, A. H., Razmjou, A., Duan, W. H., Wang, C. M., & Justnes, H. (2021). Integrally hydrophobic cementitious composites made with waste amorphous carbon powder. Journal of Building Engineering, 35, 102038.

DOI: 10.1016/j.conbuildmat.2019.117238

[27] Zhao, J., Gao, X., Chen, S., Lin, H., Li, Z., & Lin, X. (2021). Hydrophobic or superhydrophobic modification of cement-based materials: A systematic review. Journal of Building Engineering, 35, 101986.

[28] Jonoobi, M., Khazaeian, A., Tahir, P. M., & Azry, S. S. (2010). Preparation of cellulose nanofibers with hydrophobic surface characteristics. Journal of Materials Science, 45(21), 6330–6334.

[29] Pan, Y., Yu, W., Cai, Z., Yang, J., & Huang, Y. (2016). Hydrophobic modification of bagasse cellulose fibers with cationic latex: Adsorption kinetics and mechanism. BioResources, 11(3), 6578–6592.

DOI: 10.1016/j.cej.2016.05.022

[30] Jang, N., Park, S., Lee, S., & Lee, J. (2023). Evaluation of a Hydrophobic Coating Agent Based on Cellulose Nanofiber and Alkyl Ketone Dimer. Coatings, 13(1), 173.

DOI: 10.3390/ma16124216

[31] ASTM C33/C33M-21, Standard Specification for Concrete Aggregates. ASTM International.

[32] ASTM C128-15(2022), Standard Test Method for Relative Density (Specific Gravity) and Absorption of Coarse Aggregate. ASTM International.

[33] ASTM C191-19, Standard Test Methods for Time of Setting of Hydraulic Cement by Vicat Needle. ASTM International.

[34] ASTM C230/C230M-20, Standard Specification for Flow Table for Use in Tests of Hydraulic Cement. ASTM International.

[35] ASTM C1437-20, Standard Test Method for Flow of Hydraulic Cement Mortar. ASTM International.

[36] ASTM C1702-19, Standard Test Method for Measurement of Heat of Hydration of Hydraulic Cementitious Materials by Isothermal Conduction Calorimetry. ASTM International.

DOI: 10.1520/c1702

[37] ASTM C109/C109M-20b, Standard Test Method for Compressive Strength of Hydraulic Cement Mortars (Using 2-in. or [50-mm] Cube Specimens). ASTM International.

DOI: 10.1520/c0109_c0109m-20

[38] ASTM C642-17(2023), Standard Test Method for Density, Relative Density, and Absorption of Hydraulic Cement Mortar and Concrete. ASTM International.

[39] Thambiraj, S., & Ravi Shankaran, D. (2017). Preparation and physicochemical characterization of cellulose nanocrystals from industrial waste cotton. Applied Surface Science, 412, 405–416.

DOI: 10.1016/j.apsusc.2017.03.272

[40] Zheng, D., Yang, H., Feng, W., Fang, Y., & Cui, H. (2020). Modification mechanism of cellulose nanocrystals in cement. Journal of Molecular Liquids, 319, 114389.

[41] Dhali, K., Ghasemlou, M., Daver, F., Cass, P., & Adhikari, B. (2021). A review of nanocellulose as a new material towards environmental sustainability. Polymers, 13(18), 3150.

DOI: 10.1016/j.scitotenv.2021.145871

[42] Cao, Y., Zavaterri, P., Youngblood, J., Moon, R., & Weiss, J. (2015). The influence of cellulose nanocrystal additions on the performance of cement paste. Cement and Concrete Composites, 56, 73–83.

DOI: 10.1016/j.cemconcomp.2014.11.008

[43] Bhalerao, N., Wayal, A., Patil, G., & Bharimalla, A. (2015). A review on effect of nano cellulose on concrete. International Journal of Civil and Structural Engineering Research, 1 3(2), 251–254.
