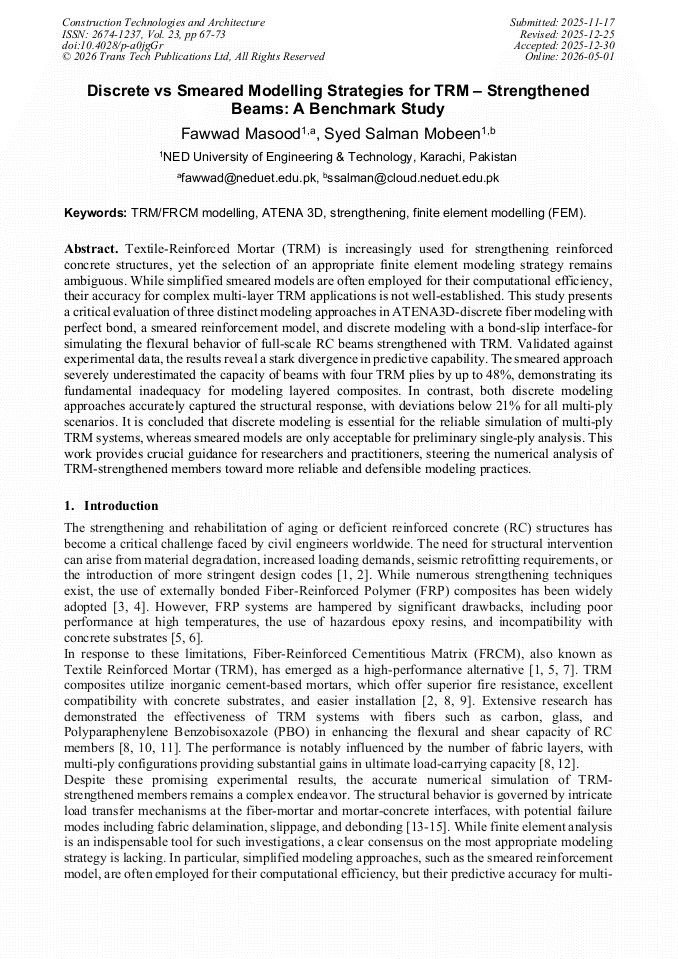

Discrete vs Smeared Modelling Strategies for TRM – Strengthened Beams: A Benchmark Study

Abstract:

Textile-Reinforced Mortar (TRM) is increasingly used for strengthening reinforced concrete structures, yet the selection of an appropriate finite element modeling strategy remains ambiguous. While simplified smeared models are often employed for their computational efficiency, their accuracy for complex multi-layer TRM applications is not well-established. This study presents a critical evaluation of three distinct modeling approaches in ATENA3D—discrete fiber modeling with perfect bond, a smeared reinforcement model, and discrete modeling with a bond-slip interface—for simulating the flexural behavior of full-scale RC beams strengthened with TRM. Validated against experimental data, the results reveal a stark divergence in predictive capability. The smeared approach severely underestimated the capacity of beams with four TRM plies by up to 48%, demonstrating its fundamental inadequacy for modeling layered composites. In contrast, both discrete modeling approaches accurately captured the structural response, with deviations below 21% for all multi-ply scenarios. It is concluded that discrete modeling is essential for the reliable simulation of multi-ply TRM systems, whereas smeared models are only acceptable for preliminary single-ply analysis. This work provides crucial guidance for researchers and practitioners, steering the numerical analysis of TRM-strengthened members toward more reliable and defensible modeling practices.

• Periodical: Construction Technologies and Architecture (Volume 23)
• Pages: 67-73
• DOI: https://doi.org/10.4028/p-a0jgGr
• Online since: May 2026
• Authors: Fawwad Masood*, Syed Salman Mobeen
• Keywords: Atena 3D, Finite Element Modelling (FEM), Strengthening, TRM/FRCM Modelling

References

[1] Murali, G., N.J.A.J.o.E. Pannirselvam, and A. Sciences, Flexural strengthening of reinforced concrete beams using fibre reinforced polymer laminate: a review. 2011. 6(11): pp.41-47.

[2] Murugaboopathy, R.J.I.J.o.T.i.S.R. and Development, Repair and strengthening of damaged RC beams using ferrocement laminates. 2020. 4(5): pp.766-771.

[3] Brückner, A., et al., Textile reinforced concrete for strengthening in bending and shear. 2006. 39(8): pp.741-748.

DOI: 10.1617/s11527-005-9027-2

[4] Triantafillou, T. and C.C.G.J.A.M.R. Papanicolaou, Innovative applications of textile-based composites in strengthening and seismic retrofitting as well as in the prefabrication of new structures. 2013. 639: pp.26-41.

DOI: 10.4028/www.scientific.net/amr.639-640.26

[5] Grelle, S.V., L.H.J.I.J.o.C.S. Sneed, and Materials, Review of anchorage systems for externally bonded FRP laminates. 2013. 7(1): pp.17-33.

DOI: 10.1007/s40069-013-0029-0

[6] Khan, A. and F. Masood. Strengthening of shear deficient reinforced concrete beams with textile reinforced mortar (TRM). in Proceedings of 8th international conference on fibre-reinforced (FRP) composites in civil engineering, Hong Kong, China. 2016.

DOI: 10.1201/9781439832448.ch5

[7] Faleschini, F., et al., Experimental behavior of a severely damaged RC beam-column joint strengthened with FRCM composites, in Proceedings of SMAR 2017. 2017.

[8] Ebead, U.A., et al. Effectiveness of FRCM System in Strengthening Reinforced Concrete Beams. in Proceedings of the 4th International Conference in Sustainable Construction Materials and Technologies (SCMT4).

[9] Younis, A. and U. Ebead. A study on the bond behavior of different FRCM systems. in MATEC Web of Conferences. 2018. EDP Sciences.

DOI: 10.1051/matecconf/201819909003

[10] Wakjira, T., M. Afzal, and U. Ebead. Efficacy of FRCM systems in flexural strengthening of RC T-beams. in IOP Conference Series: Materials Science and Engineering. 2018. IOP Publishing.

DOI: 10.1088/1757-899x/431/7/072007

[11] Younis, A. and U. Ebead. Characterization and application of FRCM as a strengthening material for shear-critical RC beams. in MATEC Web of Conferences. 2018. EDP Sciences.

DOI: 10.1051/matecconf/201819909004

[12] Loreto, G., et al., RC beams shear-strengthened with fabric-reinforced-cementitious-matrix (FRCM) composite. 2015. 7(4): pp.341-352.

DOI: 10.1007/s40091-015-0102-9

[13] Masood, F. and K.J.J.M.C.M.S.-. Asad-ur-Rehman, Behaviour of full scale reinforced concrete beams strengthened with textile reinforced mortar (TRM). 2019: pp.65-82.

DOI: 10.26782/jmcms.2019.06.00006

[14] Masood, F.J.P.S.I., Behaviour of Full-scale Shear Critical RC Beams Strengthened with Textile Reinforced Mortar. 2024. 64: pp.1065-1072.

DOI: 10.1016/j.prostr.2024.09.402

[15] Sneed, L.H., T. D'Antino, and C.J.A.M.J. Carloni, Investigation of bond behavior of polyparaphenylene benzobisoxazole fiber-reinforced cementitious matrix-concrete interface. 2014. 111: pp.1-12.

DOI: 10.14359/51686604

[16] ACI-440.1-R15, ACI 440.1 R-15 Guide for the Design and Construction of Structural Concrete Reinforced with Fiber-Reinforced Polymer Bars. 2015. 2015.

DOI: 10.14359/51663177
