Phase Transformations in ε-/γ'-Iron Nitride Compound Layers in the Temperature Range of 613 K - 693 K

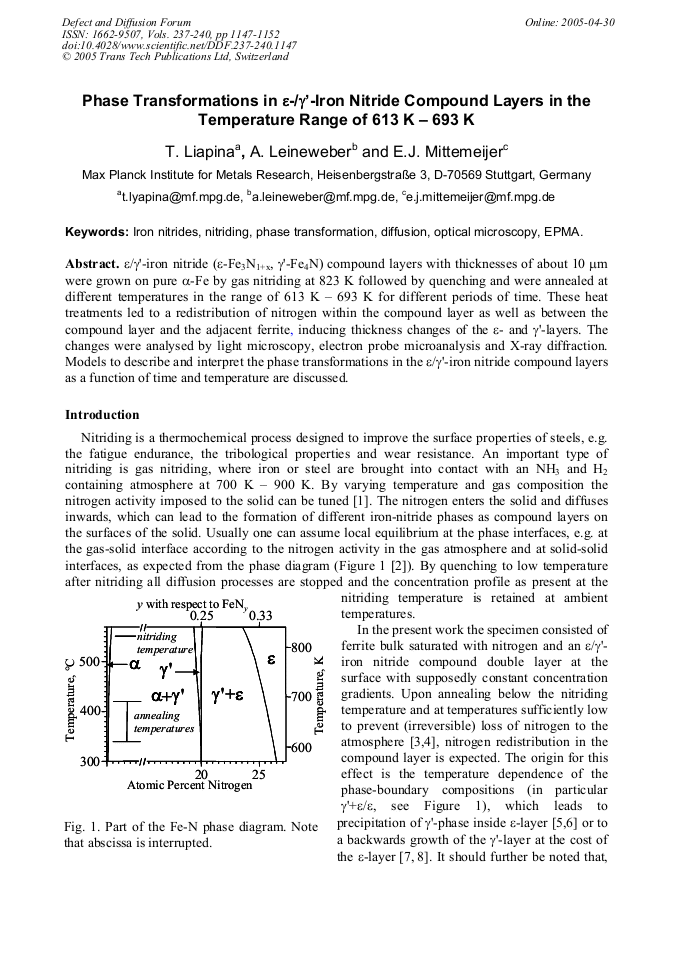

ε/γ'-iron nitride (ε-Fe3N1+x, γ'-Fe4N) compound layers with thicknesses of about 10 µm were grown on pure α-Fe by gas nitriding at 823 K followed by quenching and were annealed at different temperatures in the range of 613 K – 693 K for different periods of time. These heat treatments led to a redistribution of nitrogen within the compound layer as well as between the compound layer and the adjacent ferrite, inducing thickness changes of the ε- and γ'-layers. The changes were analysed by light microscopy, electron probe microanalysis and X-ray diffraction. Models to describe and interpret the phase transformations in the ε/γ'-iron nitride compound layers as a function of time and temperature are discussed.
M. Danielewski, R. Filipek, R. Kozubski, W. Kucza, P. Zieba, Z. Zurek
T. Liapina et al., "Phase Transformations in ε-/γ'-Iron Nitride Compound Layers in the Temperature Range of 613 K - 693 K", Defect and Diffusion Forum, Vols. 237-240, pp. 1147-1152, 2005
